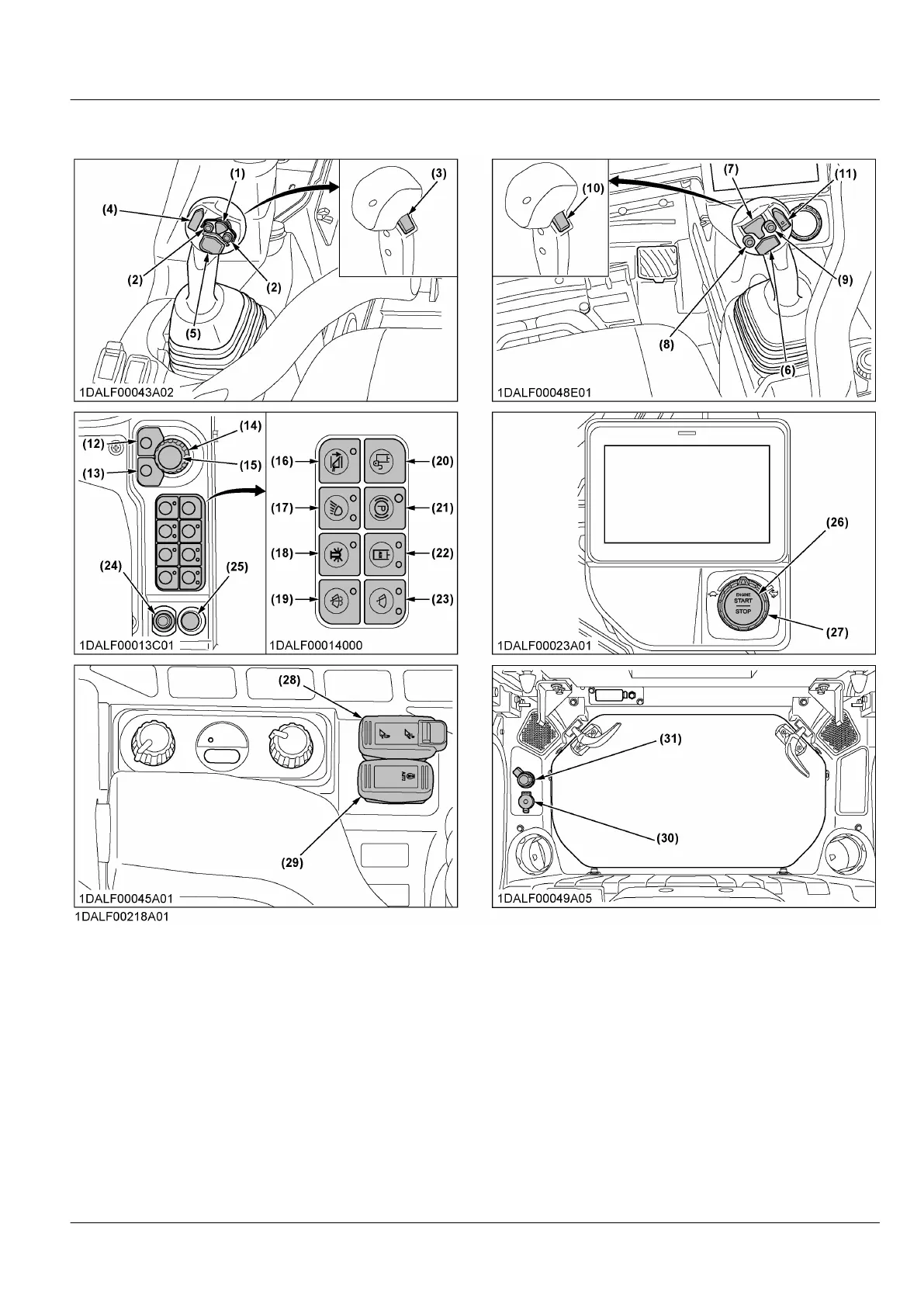

SWITCHES, ELECTRICAL OUTLET, AND USB OUTLET
(1) Horn switch
(2)
AUX electrical control switch
(3) Travel speed switch
(4) Blank
(5) AUX electrical control switch
(multi function model only)
(6) AUX electrical control switch
(7) AUX port variable switch
(8) AUX hold switch (left)
(9) AUX hold switch (right)
(10) Float switch
(11) AUX electrical mode change
switch (multi function model
only)
(12) Home switch
(13) Return switch
(14) Jog dial
(15) Jog dial switch
(16) Self leveling switch
(17) Working light switch
(18) Beacon light switch
(19) Washer switch
(20) Hydraulic unlock switch
(21) Parking brake switch
(22) AUX port switch
(23) Wiper switch
(24) Inhibit diesel particulate filter
(DPF) regeneration switch
(25) Emergency engine stop button
(26) Start switch
(27) Engine speed control dial
(28) Hydraulic quick-hitch switch
(29) Reversing fan switch
(30) Electrical outlet
(31) USB outlet
SWITCHES, ELECTRICAL OUTLET, AND USB OUTLET  INSTRUMENT PANEL AND SWITCH
