QUICK-HITCH
HOW TO USE THE HYDRAULIC
QUICK-HITCH
DANGER
T
o avoid personal injury or death:
• Use of attachments that do not comply with
ISO24410, the improper positioning of lever (s),
or non-protrusion of pin (s) may result in
detachment of the attachment or deformation,
causing loss of performance, personal injury, or
death.
WARNING
T
o avoid personal injury, death or machine damage:
• Never operate or transport attachments that are
not attached completely.
• Always replace damaged hardware immediately.
NOTE :
• Locate the attachments on a level, firm surface
when attaching and detaching them from the
quick-hitch.
This machine utilizes a quick-hitch for easy connection
and
disconnection of various attachments. By replacing
the front attachments, you can use this machine in
agriculture, raising stock, landscaping, gardening, and
snow removal as well as general civil engineering and
construction work.

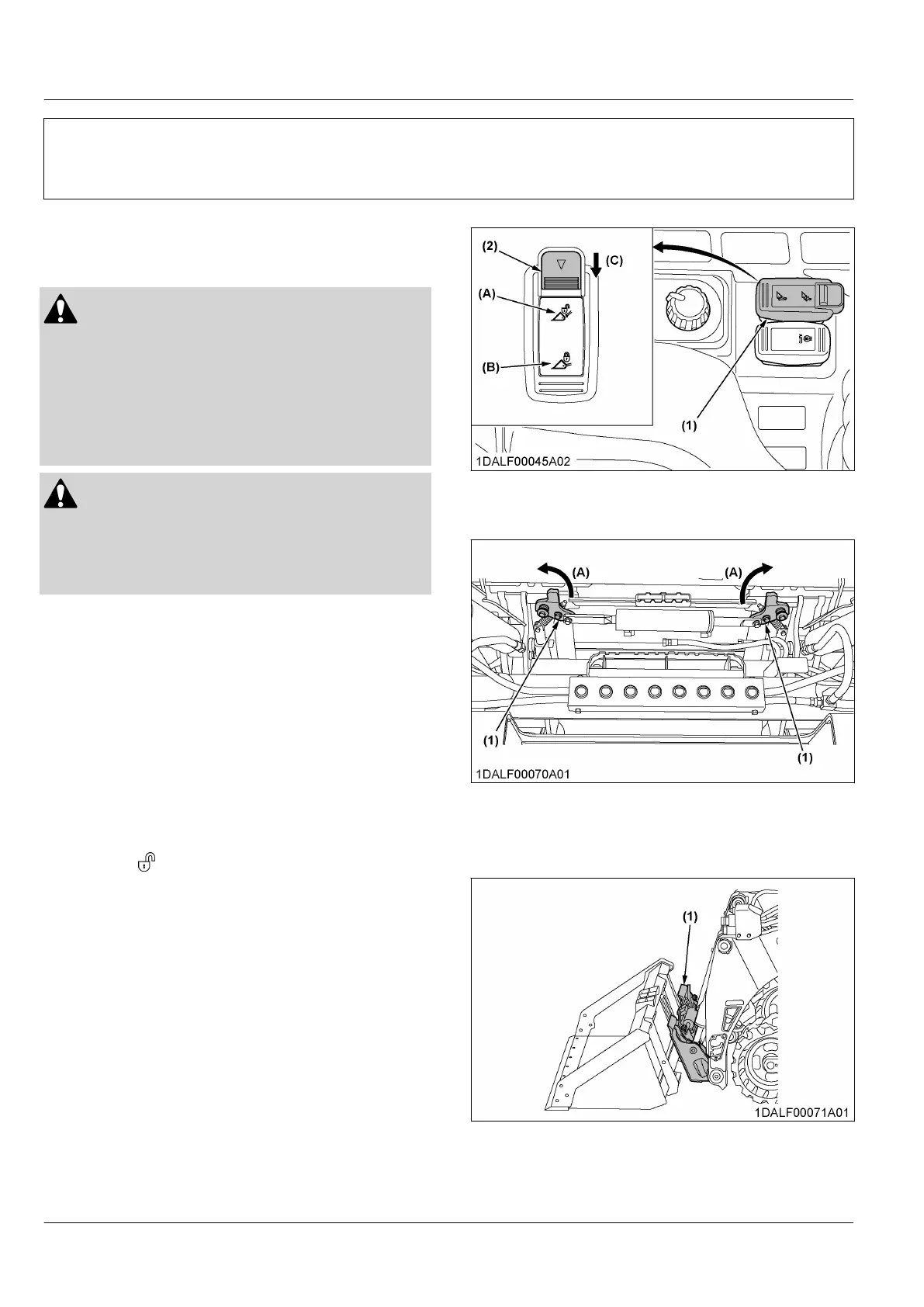

Attaching attachments
1. Push the hydraulic quick-hitch switch in the
unlocked
position and hold it to make sure that
the quick-hitch levers are up (unlocked position).
(1) Hydraulic quick-hitch switch
(2)
Guard
(A) Unlock
(B) Lock
(C) Slide
(1) Quick-hitch lever (A) Unlock
2. Position
the machine squarely in front of the
attachment and tilt the quick-hitch forward with the
tilt cylinders.
(1) Quick-hitch
3. Ease
the quick-hitch mounting plate into the saddle
of the attachment.
