APPENDICES

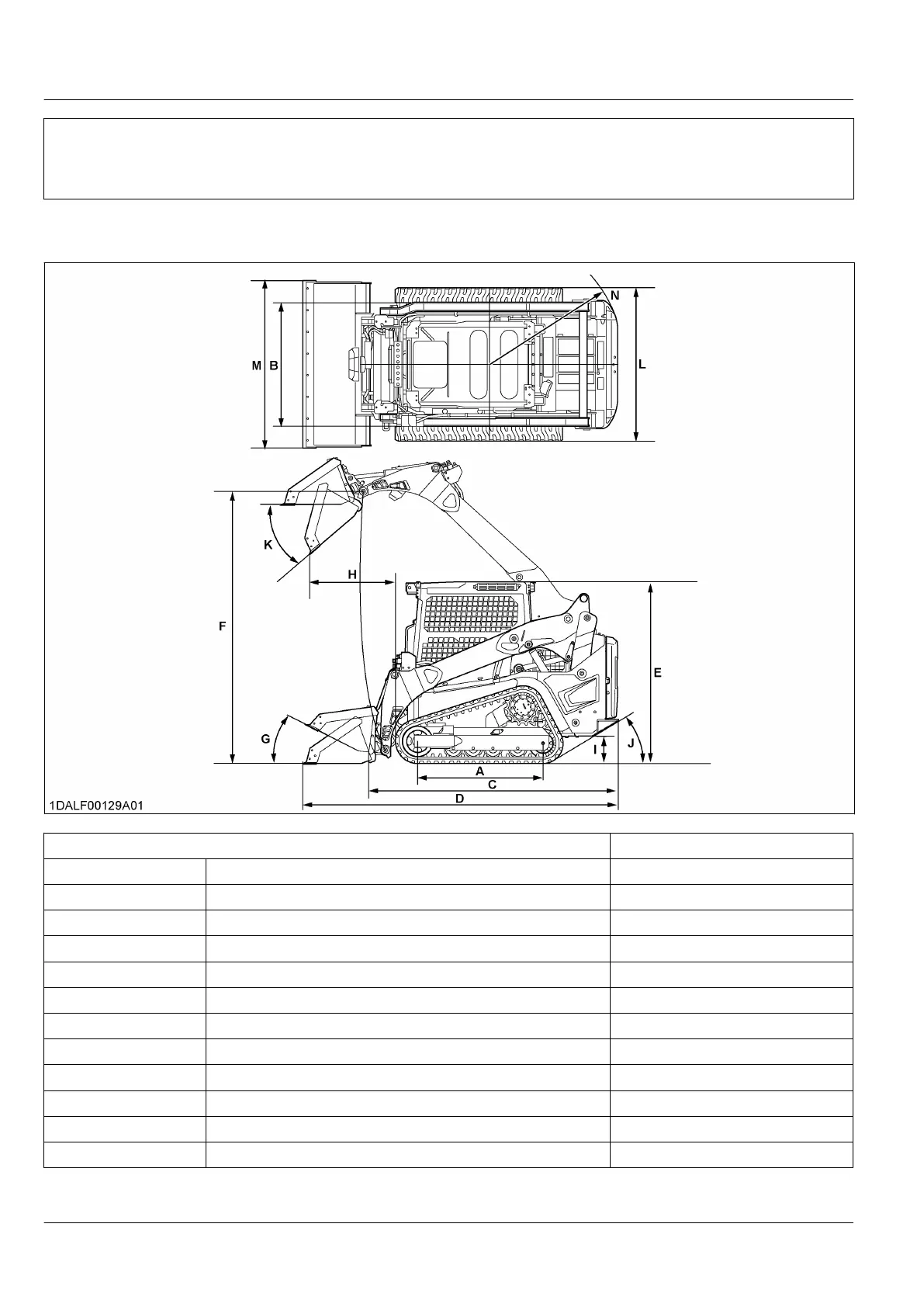

MAIN DIMENSIONS OF THE MACHINE
Model SVL75-3
A Length of track on ground 1436 mm
B Track gauge 1355 mm
C Length w/o bucket 2844 mm
D Length w/bucket on ground 3609 mm
E Height to top of cab 2078 mm
F Bucket hinge pin height at max. lift 3117 mm
G Rollback angle at carry position 27 degree
H Reach at max. lift and dump 1007 mm
I Ground clearance 296 mm
J Departure angle 31.1 degree
K Max. dump angle 38.5 degree
L Vehicle width 1675 mm
(Continued)
 APPENDICES MAIN DIMENSIONS OF THE MACHINE
