FUSE
FUSES
WARNING
T
o avoid personal injury or death:
• When changing fuse, stop the engine and turn
off the machine.

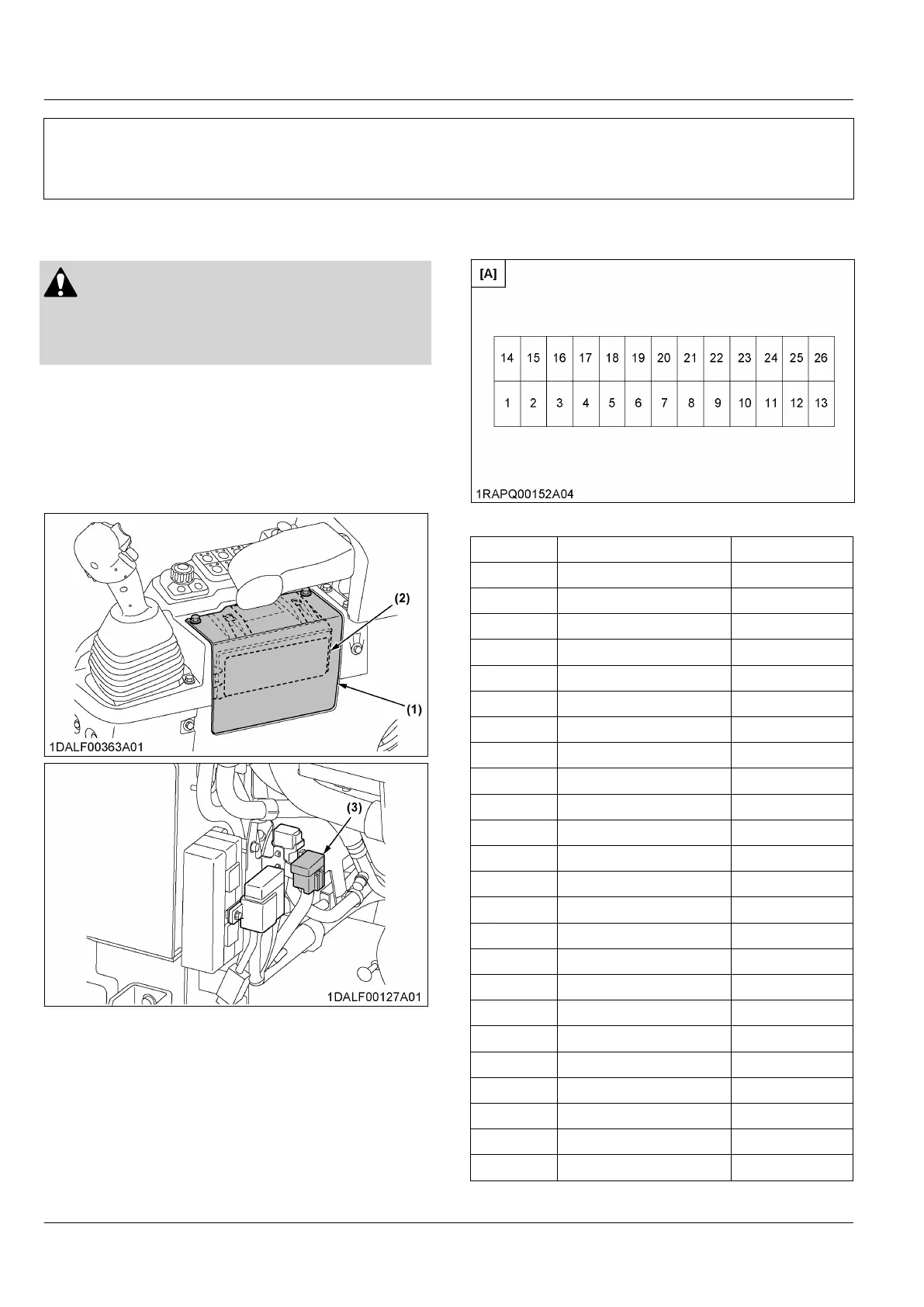

1. Replacing the fuse
1. Detach
the cover, and remove the cover of the fuse
box.
2. Replace the burnt out fuse with a fuse of the same
capacity.
(1) Cover
(2)
Fuse and relay box
(3) Fuse box
2. Fuse capacities and circuits
[A] Fuse and relay box
No. Protected circuit Capacity
1 Room light 5 A
2 Front working light 15 A
3 Rear working light 10 A
4 Starter SW/ACC 5 A
5 Horn 5 A
6 - Blank
7 Meter (+B) 5 A
8 KOBD ACE (+B) 5 A
9 ECU Main (+B) 10 A
10 Blower motor 25 A
11 Compressor clutch 10 A
12 AC controller 5 A
13 ECU (Main power) 30 A
14 Back buzzer 5 A
15 Switch (ACC) 5 A
16 Engine auxiliaries 10 A
17 AUX electrical power 15 A
18 Beacon 10 A
19 Wiper/Washer 15 A
20 Arm harness 10 A
21 Attachment - 2 20 A
22 Attachment - 1 Blank
23 Air ride seat 20 A
24 Electric outlet 15 A
(Continued)
FUSE FUSES
184
SVL75-3
