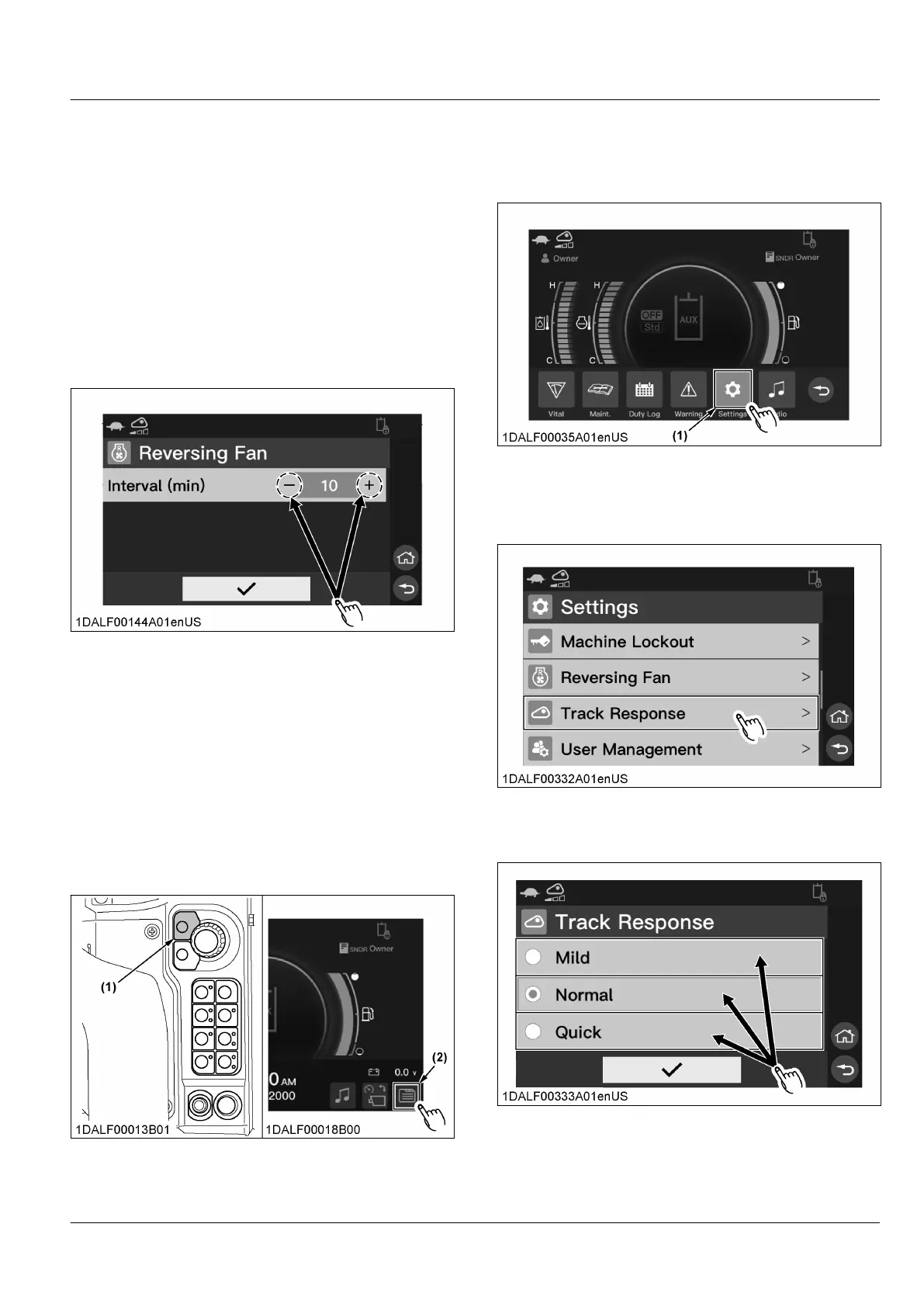

6. Rotate
the jog dial to the right or left to select the
desired setting, and press the jog dial switch to
confirm the selection.
For touch operation, touch [-], or [+] to select the
desired setting.
NOTE :
• The interval of the reversing fan can be set
in 5 minutes, 10 minutes, 20 minutes, 30
minutes, 40 minutes, 60 minutes, or 90
minutes.
• As long as pressing the “manual” position
of the reversing fan switch, the machine will
reverse the fan regardless of the interval.
7. Rotate
the jog dial to select the icon [✔], and press
the jog dial switch to save the new setting.
For touch operation, touch the icon [✔].
NOTE :
• To retain the previous setting, press the
return switch.
For touch operation, touch the return button.
13. Setting the track response
1. Press
the home switch or touch the menu icon to
make the menu bar appear on the display.
(1) Home switch (2) Menu icon
2. Rotate
the jog dial to select the icon [Settings], and
press the jog dial switch.
For touch operation, touch the icon [Settings].
The list of settings appears on the display.
(1) Icon
3. Rotate
the jog dial to select [Track Response], and
press the jog dial switch.
For touch operation, touch [Track Response].
4. Rotate
the jog dial to select the desired response,
and press the jog dial switch.
For touch operation, touch the desired response.
MACHINE SETTING INSTRUMENT PANEL AND SWITCH
To Next Page
