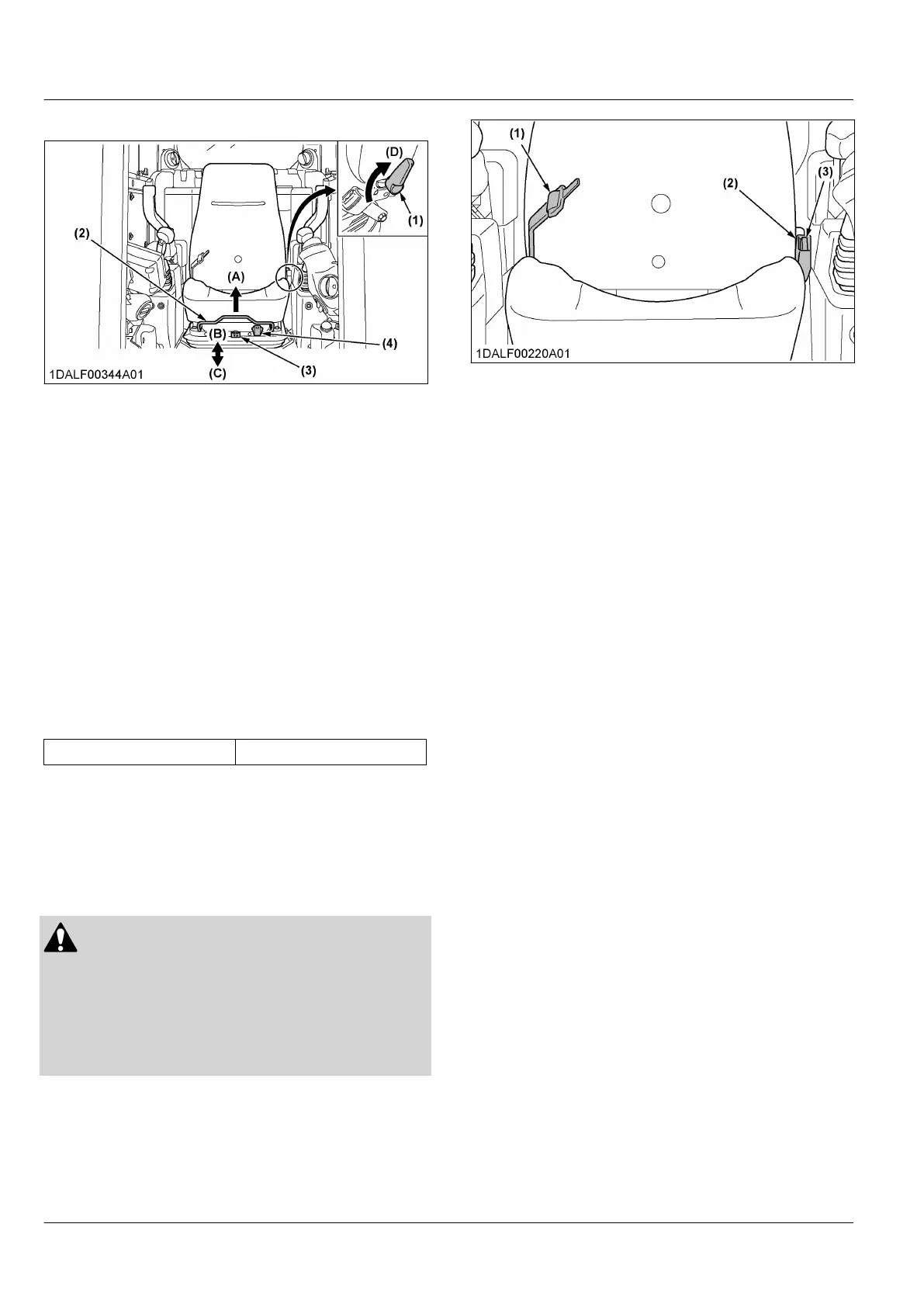

Air-suspension seat
(1) Backrest tilt adjust lever
(2)
Travel adjust lever
(3) Weight and height adjust lev-
er
(4) Ride indicator
(A) Unlock
(B) To raise the seat
(C) To lower the seat
(D) Unlock
Travel adjustment
1. Pull
the travel-adjust-lever in the direction of unlock
(A) and slide the seat backward or forward, as
required.
The seat will lock in position when the lever is
released.
Weight and height adjustment
1. Turn the weight-and-height-adjust-lever to achieve
the optimum suspension setting.
2. Make sure that the ride indicator shows green. If
red, readjust the suspension setting.
Within the green band of the ride indicator, there is
the following height adjustment for any operator.
Height adjustment 60 mm
Tilt adjustment
1. Pull
the backrest-tilt-adjust-lever in the direction of
unlock (D) and move the backrest to the desired
angle.
2.2 How to use the seat belt
WARNING
T
o avoid personal injury or death:
• Always use the seat belt with a ROPS and FOPS
protection structure. Adjust the operator's seat
to the optimal position and buckle it up.
• Always fasten the seat belt securely before
starting the engine.
(1) Seat belt
(2)
Socket
(3) Button
Fastening the seat belt
1. Pull
the seat belt from the retractable (right) side of
the operator's seat.
2. Insert the fixture of the seat belt into the socket at
the left side of the operator's seat until the fixture
clicks deep into position.
Releasing the seat belt
1. Press the red button of the socket to release the
seat belt.
The seat belt reels itself and gets retracted to the
right side.
 OPERATION OPERATION OF THE MACHINE
