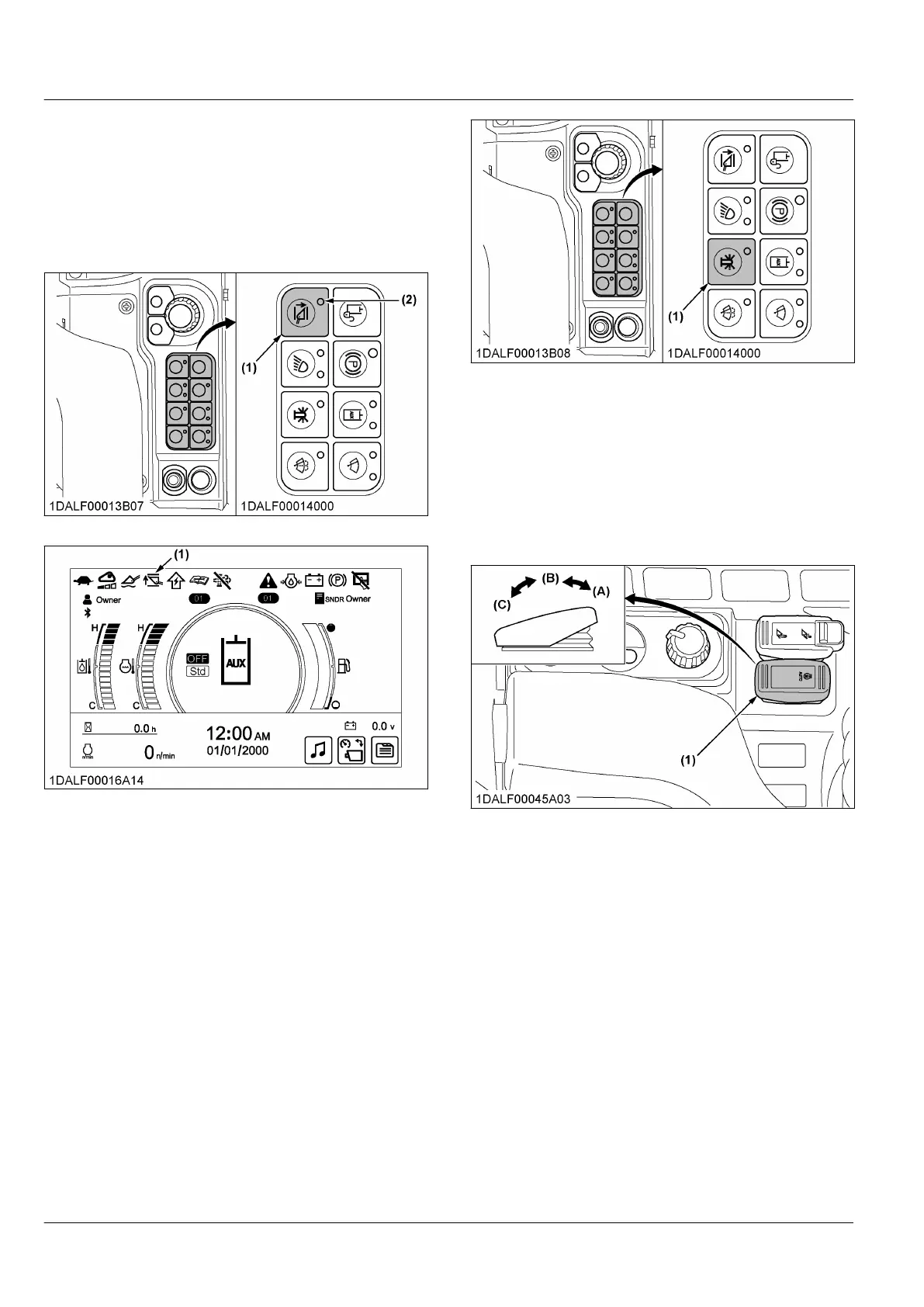

17. Self leveling switch
When
pressing the self-leveling-switch, the self leveling
indicator on the instrument panel lights up and the
upper indicator on the self-leveling-switch lights up.
When pressing the self-leveling-switch again, self
leveling indicator on the instrument panel turns off and
the upper indicator on the self-leveling-switch turns off.
(1) Self leveling switch (2) Upper indicator
(1) Self leveling indicator
NOTE :
• Self leveling is only operational during the lift
arms raise function.
18. Beacon light switch
This machine is only equipped with the beacon light
switch
(It contains a coupler for connecting and is
located in the speaker cover at the back right of the
cab).
The machine is not equipped with the beacon main
part. Please install the part if required.
(1) Beacon light switch
19. Reversing fan switch
This switch operation is accomplished by reversing the
direction
of the cooling fan for several seconds. The
reversing fan is used to remove dirt or debris from the
air-conditioner condenser and the radiator.
The operator can select automatic or manual operation
of the reversing fan.
(1) Reversing fan switch (A) Manual
(B) Auto
(C) Off
When the reversing fan setting is changed on or off, a
popup will appear on the display
.
 INSTRUMENT PANEL AND SWITCH SWITCHES, ELECTRICAL OUTLET, AND USB OUTLET
