OPENING AND CLOSING OF
COMPONENTS

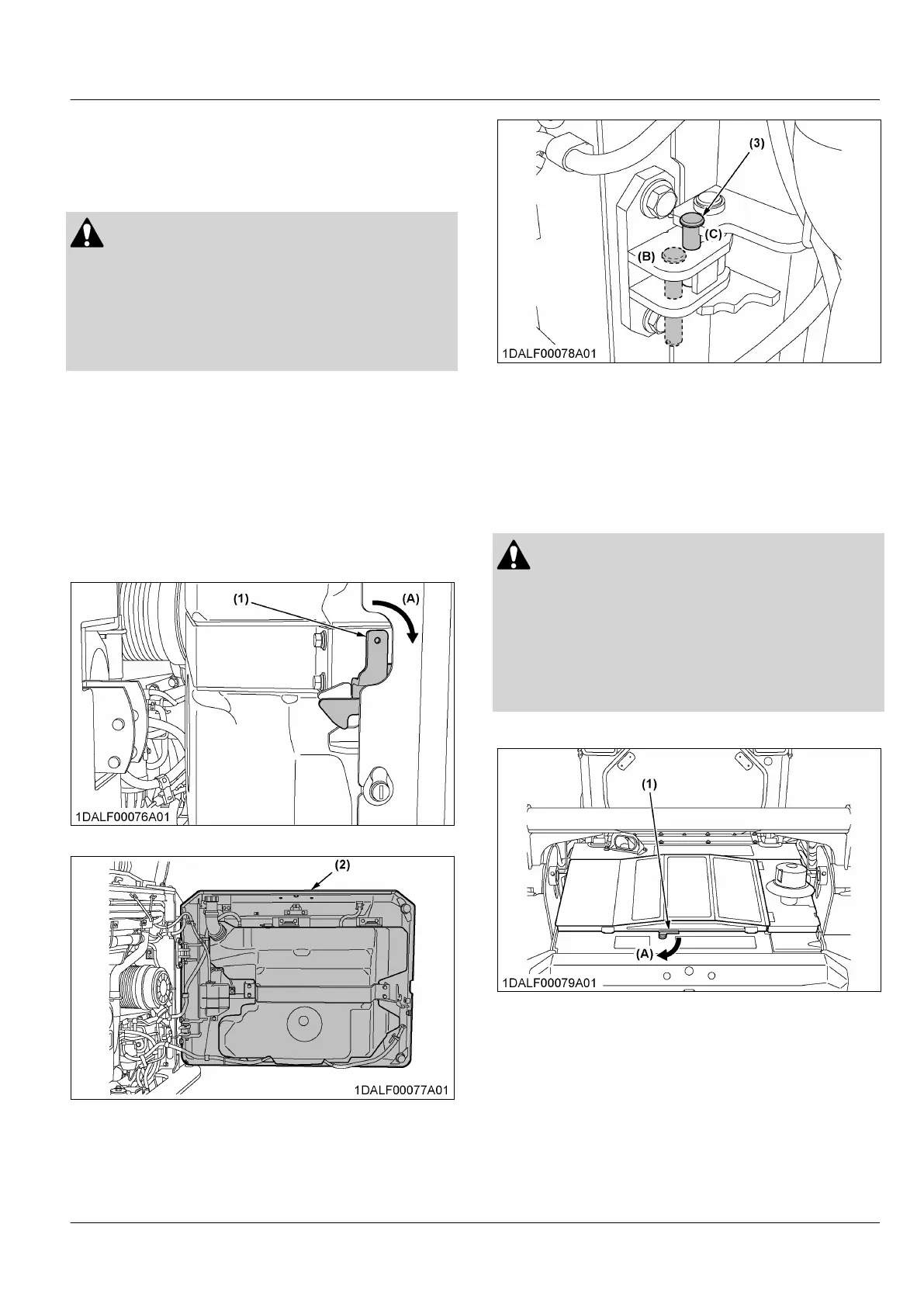

1. Opening and closing the rear door
WARNING
To avoid personal injury or death:
• When opening the rear door, open it firmly to
the locked position.
• When opening and closing the rear door, be
careful not to get your hands or other parts of
your body caught.
Opening
1.
Pull the lever and open the rear door.
2. Insert the pin into the locked position to fix the rear
door.
Closing
1. Support the rear door by hand, remove the pin from
the locked position, and insert it into original
position.
2. Close the rear door firmly until the lever is fully
returned.
(1) Lever (A) Pull
(2) Rear door
(3) Pin (B) Original position
(C)
Locked position
NOTE :
• Be
careful, the rear door gets heavy when the
fuel tank is full.
2. Opening the rear upper cover
WARNING
T
o avoid personal injury or death from contact with
moving parts:
• Never open the rear upper cover while the
engine is running.
• When opening and closing the upper cover, be
careful not to get your hands other parts of your
body caught.
1. Turn the lever.
(1) Lever (A) Turn
NOTE :
• Before
detaching the rear upper covers,
remove dirt or debris off the cover top and
around the covers. This is to prevent such
deposits from coming into the cooling
system.
OPENING AND CLOSING OF COMPONENTS MAINTENANCE
