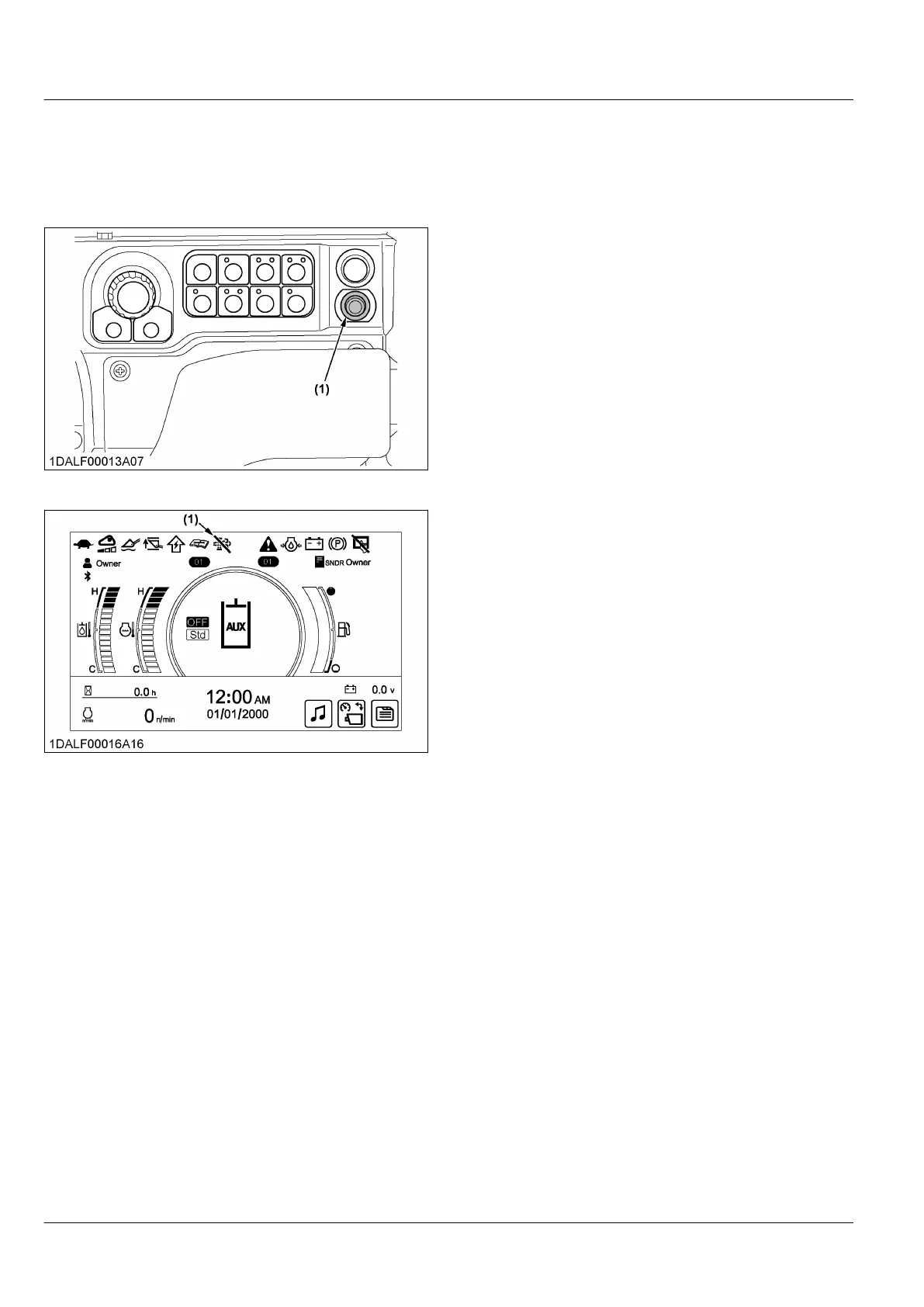

LOCKING AND RELEASING THE DIESEL P
ARTICULA
TE FIL
TER
(DPF) REGENERA
TION
1.
Press the inhibit switch (1).
The automatic DPF regeneration is locked and the inhibit lamp on the display lights up.
(1)
Inhibit switch
(1)
Inhibit lamp
 LIST OF SCREEN
LOCKING AND RELEASING THE DIESEL P
AR
TICULA
TE FIL
TER (DPF) REGENERA
TION
198
SVL75-3
203
205
Table of Contents
Table of Contents
7
Safe Operation
13
Service of the Machine
31
Dealer Service
31
Warranty Policy
31
Procedure for Scrapping the Machine
32
Technical Data
33
Specification Table
33
Machine Parts
34
Description of Machine Parts
34
Instrument Panel and Switch
36
Instrument Panel
36
Handling the Touch Panel
37
Basic Procedure of the Touch Panel
37
Handling the Jog Dial
39
Function of the Home Switch and the Return Switch
39
Fuel Gauge Indicator
39
Low Fuel Warning Indicator
40
Fill Level Monitor When Refuelling
40
Coolant Temperature Gauge
41
Checking the Coolant Temperature Gauge
41
Hydraulic Oil Temperature Gauge
42
Hour Meter
42
Engine Tachometer
42
Battery Voltmeter
42
Glow Plug Indicator
43
Parking Brake Warning Indicator
43
Bucket-Floating Indicator
43
Self Leveling Indicator
43
Master Warning Indicator
44
Engine Oil Pressure Indicator
44
Battery Charge Warning Indicator
44
Diesel-Particulate-Filter (DPF) Regeneration Indicator
45
Engine Rev up Indicator
45
CCV System Freezing Warning Indicator
45
Machine Setting
46
Vital Display Function
46
Periodic Check
48
How to Read the List of the Periodic Check Items
49
Service Hour Meter
50
Changing the Maintenance Interval
51
Log Record
51
Checking Error Messages
52
Setting the Clock
54
Reordering Year/Month/Day and Selecting AM/PM or 24-Hour
56
Setting the Display Language
57
Unit Setting
58
Setting the Display Brightness
58
Setting the Work Light Turn-Off Delay Function
59
Setting the Machine Lockout
60
How to Use the Machine Lockout Function
61
Setting the Reversing Fan
62
Setting the Track Response
63
Setting the Rearview Camera
64
Setting the Rearview Camera Image Position
66
Setting the Restriction of the Touch Operation
66
Setting the Restriction of the Touch Operation During the Hydraulic System Locked
67
Auto Shift Adjustment
68
Setting the User Name
70
Setting the User Password
72
Setting Function Restrictions for each User
74
Adding the User Account
76
Deleting the User Account
77
Deleting All User Account
78
Setting the Travel Alarm
79
Setting the Dealer Name
80
Setting the Dealer Phone Number
82
Calling the Dealer
85
Rearview Camera Mode
86
Audio Mode
87
Change to the Audio Screen
87
Switch Audio Power ON/OFF
88
Operation of am Mode
89
Operation of FM Mode
91
Bluetooth Mode Operation
92
Operation of the Weather Band Mode
94
Call Control for Bluetooth-Connected Cell Phone
95
Adjustment of Audio Volume
96
Switching Audio Source
98
Memo Mode
98
Switching to the Memo Screen
98
How to Enter a Memo
99
Switches, Electrical Outlet, and Usb Outlet
101
Start Switch
102
Parking Brake Switch
102
Hydraulic Unlock Switch
103
Horn Switch
103
Travel Speed Switch
103
Working Light Switch
104
Seat Switch
104
Inhibit Diesel Particulate Filter (DPF) Regeneration Switch
104
Float Switch
105
AUX Port Switch
105
AUX Port Switch [High-Flow Model Only]
105
AUX Port Variable Switch
106
AUX Hold Switch
106
AUX Electrical Control Switch (Option)
107
AUX Electrical Mode Change Switch (Option)
107
Hydraulic Quick-Hitch Switch
107
Self Leveling Switch
108
Beacon Light Switch
108
Reversing Fan Switch
108
Emergency Engine Stop Button
109
Electrical Outlet and USB Outlet
110
Pedal and Levers
111
Control Pedals and Levers
111
Safety Features
112
How to Use the Emergency Exit
112
Opc Function
112
How to Use and Check the Function of the Armrest
112
How to Use and Check the Seat Function
112
How to Check the Back-Up Alarm
112
How to Use the Forced Lift Arms Lowering Device
113
Exhaust Aftertreatment Device
114
Catalyst-Containing Diesel-Particulate-Filter (Dpf) Device
114
Regeneration of Diesel-Particulate-Filter (Dpf)
114
Air Conditioner
116
Adjusting the Air Flow of the Air Conditioner
116
Air Control Vent
116
How to Use the Control Panel
118
Operating the Control Panel
118
Operation
119
Cab Type Machine
119
Interior Lamp
119
How to Use the Wiper/Washer Switch
119
Opening and Closing the Cab Door
119
Opening and Closing the Side Cab Window
121
Operation of the Engine
121
Starting the Engine
122
Checking the Machine after Starting the Engine
123
Adjusting the Engine Speed
123
Starting the Engine under Cold Conditions
123
Stopping the Engine
124
Starting the Engine with an Auxiliary Battery
124
Operation of the Machine
125
Running-In of the Machine
125
Start of the Machine
125
Adjusting the Operator's Seat
125
How to Use the Seat Belt
126
How to Use the Armrest
127
Driving
127
Traveling Forward and Backward
127
Turning the Machine
128
How to Use Pivot Turn
128
How to Use Spin Turn
129
Operating the Lift Arms
129
How to Use the Lift Arm Stopper
130
Operating the Bucket
131
Auxiliary Hydraulic
133
How to Use the Auxiliary Hydraulic Control
133
Operating the Auxiliary Hydraulic Control
133
Operating the Attachment Control Device (Option)
134
Advanced Multifunction Valve (Amv)
135
Quick-Hitch
136
How to Use the Hydraulic Quick-Hitch
136
Radio
139
Bluetooth Microphone
139
Impact of Bluetooth
139
Machine Precaution
141
Important Information on Machine Operation
141
Caution While Traveling
141
Precaution When Traveling in High Speed
141
Precautions for Use of Machine Near Water
141
Precautions When Traveling on Inclines
142
Parking on an Incline
142
Prohibited Actions for the Machine
143
Prevention of Slippage of Rubber Tracks
143
Lifting
144
Lifting the Machine
144
Transporting
147
Loading the Machine on Atransport Vehicle
147
Towing an Operable Machine
148
Towing an Inoperable Machine
149
Maintenance
150
Maintenance Intervals
152
Opening and Closing of Components
155
Opening and Closing the Rear Door
155
Opening the Rear Upper Cover
155
Opening the Air-Conditioner Condenser
156
Opening the Fan Motor Cover
157
Where to Keep the Operator's Manual
157
Tilting up the Cab
157
Discharging Mud from Operator Cab and Main Frame
159
Discharging Mud from the Operator Cab
159
Discharging Mud from the Main Frame
160
Daily Checks
160
Daily Check Items before Starting the Machine
160
Checking the Coolant Level
161
Checking the Fuel Level
161
Checking the Engine Oil Level
162
Checking the Hydraulic Oil Level
162
Lubrication Points of the Machine
163
Checking the Radiator and the Oil Cooler
163
Checking and Cleaning the Engine and the Electrical Wiring
164
Precautions for Checking the V-Belt
164
Precautions for Washing Whole Machine
164
Draining the Water Separator
164
Checking the Evacuator Valve
165
Checking the Pre-Cleaner
165
Checking the DPF (Diesel-Particulate-Filter) Muffler
165
Checking the Washer Liquid
166
Checking the Battery Condition
166
Checking the Air-Conditioner Condenser and the Reverse Fan
167
Cleaning the Fuel Tank Cap
168
Every 50 Service Hours
168
Draining the Water from the Fuel Tank
168
Checking the Track Tension
169
Checking the Air Cleaner Element
169
Cleaning the Air Cleaner Element
170
Cleaning the Evacuator Valve
171
Cleaning the Fresh Air Filter
171
Cleaning the Recirculation Air Filter
172
Every 250 Service Hours
172
Changing the Engine Oil
172
Replacing the Engine Oil Filter Cartridge
173
Checking the Radiator Hoses and the Clamps
173
Checking the Fuel Line and the Intake Air Line
174
Checking and Adjusting the V-Belt Tension
174
Checking and Adjusting the Air-Conditioner Belt Tension
175
Cleaning Inside of the Main Frame
175
Replacing the Air Cleaner Element
176
Every 500 Service Hours
176
Replacing the Water Separator Filter Element
176
Replacing the Fuel Filter Cartridge
177
Changing the Travel Motor Gear Oil
177
Changing the Return Filter
178
Replacing the Hydraulic Breather Filter
178
Replacing the Hydraulic Oil Filter
178
Cleaning the Front Window Roller
178
Checking the Air-Conditioner Drain
179
Every 1000 Service Hours
179
Changing the Hydraulic Oil Including the Suction Filter in the Hydraulic Tank and the Return Filter
179
Hydraulic Oil Check with the Hydraulic Hammers
180
Adjusting the Engine Valve Clearance
180
Replacing the Front Window Roller
180
Every 1500 Service Hours
181
Checking the Injector Tip
181
Checking the EGR Cooler
181
Every 2000 Service Hours
181
Checking the Alternator and the Starter Motor
181
Every 3000 Service Hours
181
Checking the EGR System
181
Checking the Turbocharger
181
Replacing the Fuel Tank Breather
181
Every 3000 to 8000 Service Hours
181
Annual Servicing
182
Checking the Air-Conditioner Pipes and Hoses
182
Checking the Exhaust Manifold for Cracks, Gas, Leakage, and Mounting Screw
182
Checking the Intake Air Line for Air Leaks
182
Checking the Boost Sensor
182
Checking the Condition of the Diesel-Particulate-Filter (DPF) Muffler
182
Checking the Diesel-Particulate-Filter (DPF) Differential Pressure Sensor and Piping for Gas Leak
182
Checking the Diesel-Particulate-Filter (DPF) Exhaust Gas Temperature Sensor
182
Checking the EGR Piping for Gas Leak
182
Checking the Antifrost Heater for Oil Separator (CCV Heater)
182
Checking the Relief Valve
183
Biennial Servicing
183
Replacing the Hydraulic Hose
183
Changing the Radiator Coolant
183
Replacing the Fuel Hose
185
Replacing the Intake Air Line
185
Replacing the Radiator Hoses
185
Replacing the Coolant Rubber Piping
185
Replacing the Air-Conditioner Pipes and Hoses
185
Replacing the CCV Rubber Piping
185
Replacing the Diesel-Particulate-Filter (DPF) Differential Pressure Sensor Rubber Piping (Front and Back)
186
Replacing the Suction Hoses Upstream and Downstream the Turbocharger
186
Replacing the Boost Sensor Pressure Rubber Piping
186
Replacing the EGR Differential Pressure Sensor Rubber Piping (Front and Back)
186
Replacing the EGR Cooler Hose
186
Servicing as Required
186
Checking the Amount of Refrigerant Gas
186
Draining the Water Separator in Case Warning against Water of the Fuel Filter
186
Purging of the Fuel System
186
Cleaning the Plastic Parts and Synthetic Leather
187
Track
188
Adjusting the Tracks
188
Fuse
190
Fuses
190
Replacing the Fuse
190
Fuse Capacities and Circuits
190
Slow Blow Fuse
191
Replacing the Bolted Slow Blow Fuse
191
Troubleshooting
193
Troubleshooting of the Engine and Other Systems
193
List of Screen
195
Navigation Screens
195
Automatic Diesel Particulate Filter (Dpf) Regeneration
203
Locking and Releasing the Diesel Particulate Filter (Dpf) Regeneration
204
Engine System Error
206
Engine Error List
206
Cold Weather
210
Preparation for Operation of the Machine in Cold Weather
210
Storing the Machine after Completion of Work in Cold Weather
210
Long Storage
211
Storing the Machine for Along Period of Time
211
Operating the Machine after Storing for a Long Period of Time
211
Periodic Replacement of Important Component Parts
211
Recommended Oils
213
Recommended Oils, Greases, and Fuels
213
Biodiesel Fuel (Bdf)
215
Appendices
216
Main Dimensions of the Machine
216
Software Information
218
Index
219
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Kubota SVL75-3 and is the answer not in the manual?
Ask a question
Kubota SVL75-3 Specifications
General
Brand
Kubota
Model
SVL75-3
Category
Compact Loader
Language
English
Related product manuals
Kubota SVL65-2
138 pages
Kubota SVL97-2
159 pages
Kubota CTL SVL97-2
158 pages
Kubota R065
117 pages
Kubota R530
153 pages
Kubota BX Series
18 pages
Kubota LA181
27 pages
Kubota F3990 Series
24 pages
Kubota R630
153 pages
Kubota WSM LA271
62 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
