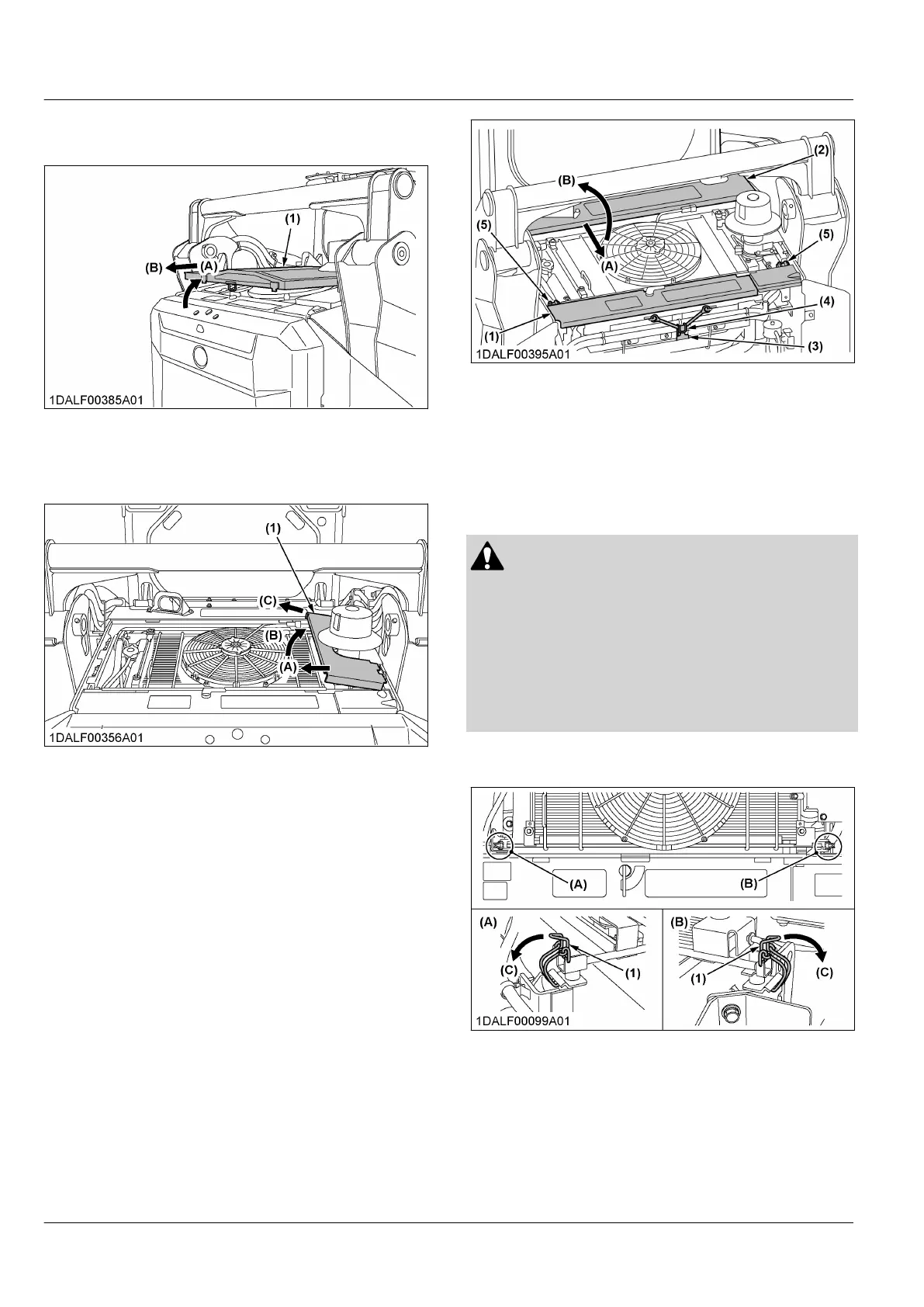

2. Raise
the rear upper cover 1, and pull it off to
backward.
(1) Rear upper cover 1 (A) Raise
(B) Pull off
3. Pull
the rear upper cover 2 slightly to the left, and
pull it off to the left while raising.
(1) Rear upper cover 2 (A) Pull
(B)
Raise
(C) Pull off
4. Remove
the rubber band from the hook 1, release
the front pins of the rear upper cover 3 from the
hook 2, and remove the rear upper cover 3.
5. While pulling the rear upper cover 4 backward,
raise the back side of the rear upper cover 4 and
open it.
(1) Rear upper cover 3
(2)
Rear upper cover 4
(3) Rubber band
(4) Hook 1
(5) Pin and hook 2
(A) Pull
(B) Raise
3. Opening the air-conditioner
condenser
WARNING
T
o avoid personal injury or death from contact with
moving parts:
• Never open the air-conditioner condenser while
the engine is running.
• When opening and closing the air-conditioner
condenser, hold the grip. If not, there is a risk of
getting your hands or other parts of your body
caught.
1. Lower
the lever to unlock the air-conditioner
condenser.
(1) Lever (C) Unlock
 MAINTENANCE OPENING AND CLOSING OF COMPONENTS
To Next Page
