7. Replacing the air cleaner element
IMPORTANT :
• Shorten
the replacement period if the machine
is used in dusty or sandy areas.
• Replace the air cleaner element regularly or
foreign materials will accumulate, which will
shorten the DPF filter cleaning interval
(8000 hours or service as required).
• Use KUBOTA genuine inner and outer element.
• Do not blow air to clean the case inside. It
allows dust come into the inner element.
• Clean up the case inside with clean wet cloth.
After cleaning, wipe it dry with clean dry cloth.
1. Open the rear door.
2. Remove the dust-cover.
3. Remove and replace the outer element and the
inner element with new them.
When reassembling, install the dust-cover so that
its top-indicating-mark (arrow) faces up-wards.

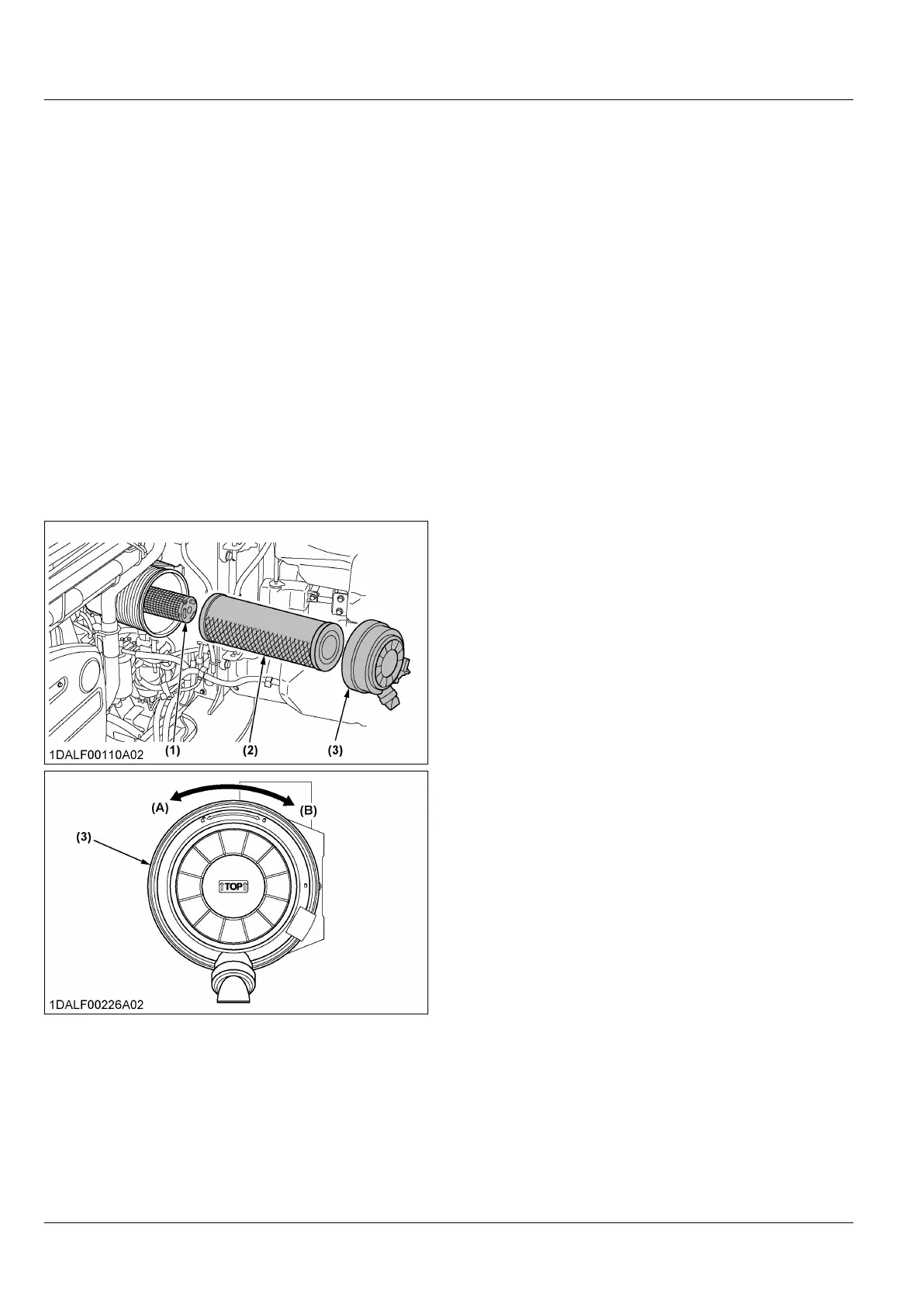

(1) Inner element
(2)
Outer element
(3) Dust-cover
(A) Unlock
(B) Lock
EVERY 500 SERVICE HOURS
Carry
out all 50, 100, and 250 hour servicing at the
same time.
1. Replacing the water separator
filter element
1. Set
the shutoff-valve of the water separator to the
close position.
2. Loosen and remove the cup properly and replace
the filter element.
3. Check the condition of the O-ring and replace if
necessary.
4. Tighten up the cup properly.
 MAINTENANCE EVERY 250 SERVICE HOURS
