No. Protected circuit Capacity
25 Control elements 5 A
26 Service tool 5 A
NOTE :
• The
fuse of No.22 is not set at the factory. When
using the attachments-1, contact your KUBOTA
dealer.

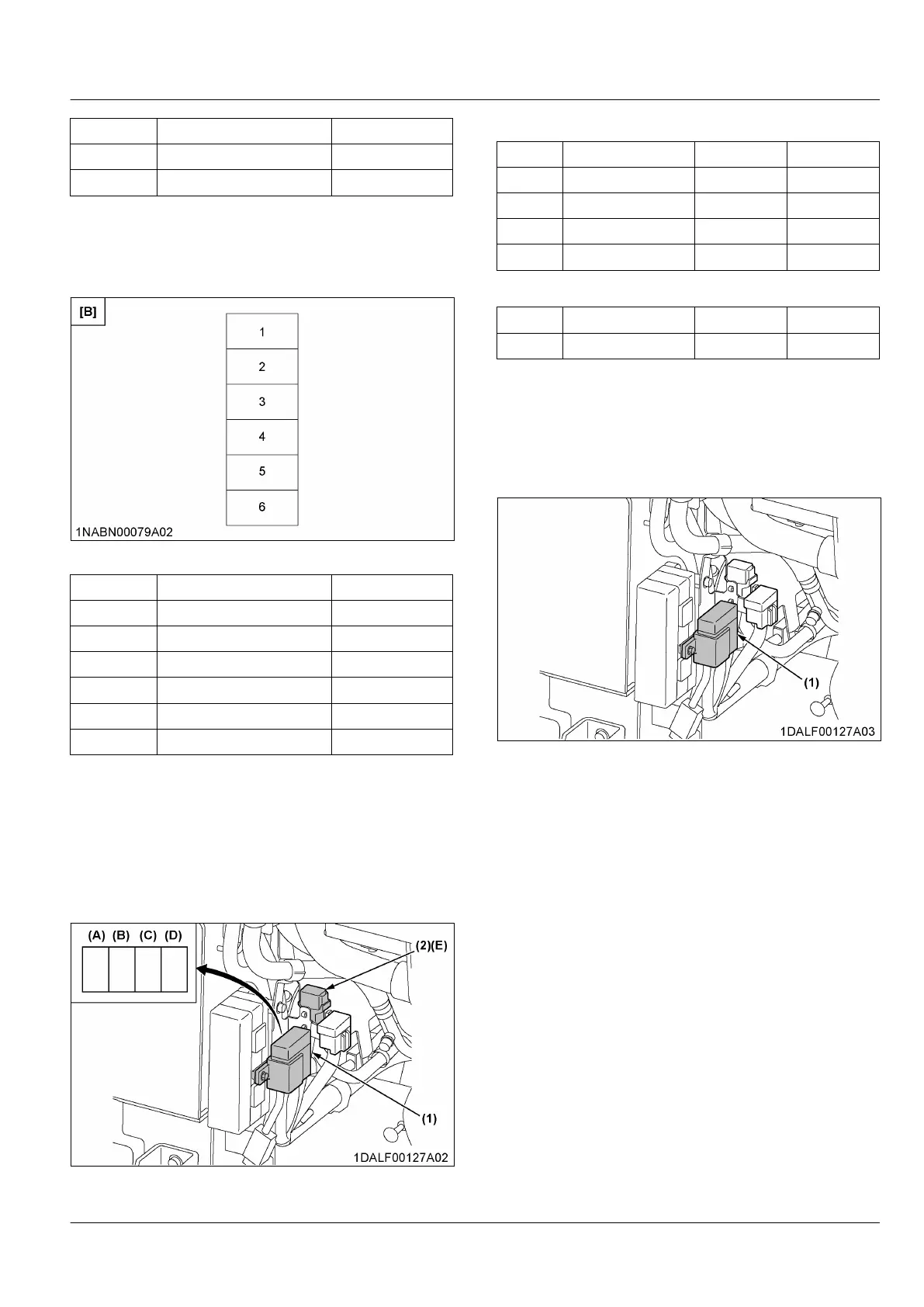

[B] Fuse box
No. Protected circuit Capacity
1 - Blank
2 Engine elements 5 A
3 CCV heater 20 A
4 Starter signal power 5 A
5 Alternator 10 A
6 Fuel pump 5 A
3. Slow blow fuse
Slow-blow-fuse protects the electrical circuits.
If
the slow-blow-fuse is blown, check the electrical
circuits for trouble and then replace with a new
compatible slow-blow-fuse.
(See Replacing the bolted slow blow fuse on page 185)
(1) Slow blow fuse A (2) Slow blow fuse B
Slow blow fuse A
No. Protected circuit Capacity Fuse type
(A) Main 60 A Bolted
(B) Alternator 100 A Bolted
(C) Engine 30 A Plug-in
(D) Glow/CAB 60 A Plug-in
Slow blow fuse B
No. Protected circuit Capacity Fuse type
(E) Reversing aided fan 20 A Plug-in
4. Replacing the bolted slow blow
fuse
1. Disconnect the negative cord of the battery.
2.
Remove the slow-blow-fuse-case.
(1) Slow blow fuse case
FUSES  FUSE
