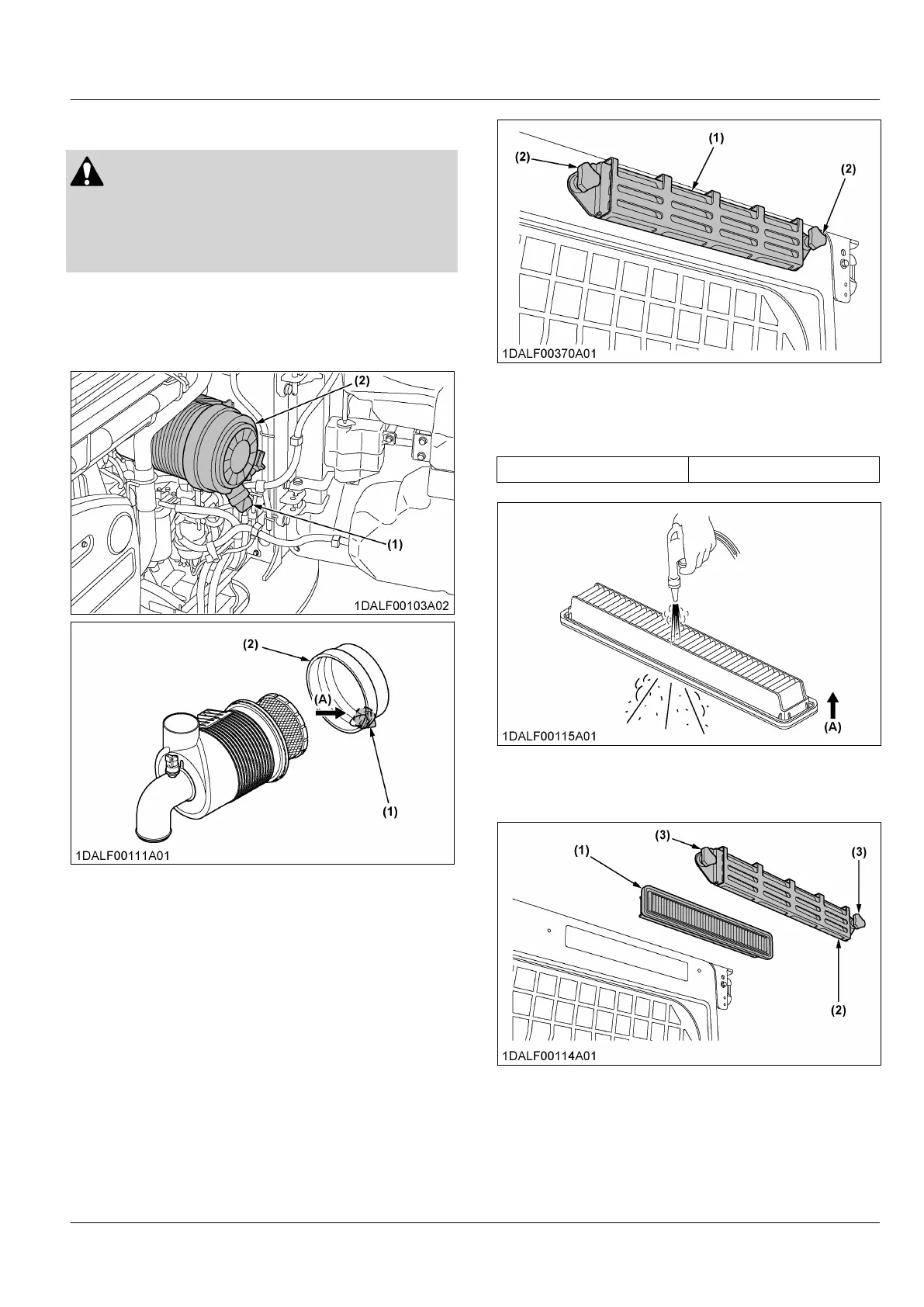

5. Cleaning the evacuator valve
WARNING
T
o avoid personal injury or death:
• Wear eye protection.
• While cleaning, foreign matters may drop out of
the evacuator valve.
1. Open the rear door and engine hood.
2.
Remove the dust-cover.
3. From behind the dust-cover, remove foreign matter
from the evacuator valve.
(1) Evacuator valve
(2)
Dust cover
(A) Clean from behind
IMPORTANT :
• Failure
to clean the evacuator valve may
shorten the air cleaner element's service life.
6. Cleaning the fresh air filter
IMPORTANT :
• If
the machine is used in extremely dusty areas,
clean the fresh-air-filter more frequently than in
the specified maintenance periods.
1. Remove the thumbscrews and cover, and pull out
the fresh-air-filter.
(1) Cover (2) Thumbscrew
2. Blow
air from the opposite direction to the normal
air flow of the fresh-air-filter.
Keep pressure of compressed air as follows.
Pressure of compressed air Under 205 kPa (2.1 kgf/ cm
2
)
(A) Airflow of air conditioner
3. Attach
the filter and the cover as the following
illustration.
(1) Fresh air filter
(2)
Cover
(3) Thumbscrew
EVERY 50 SERVICE HOURS  MAINTENANCE
