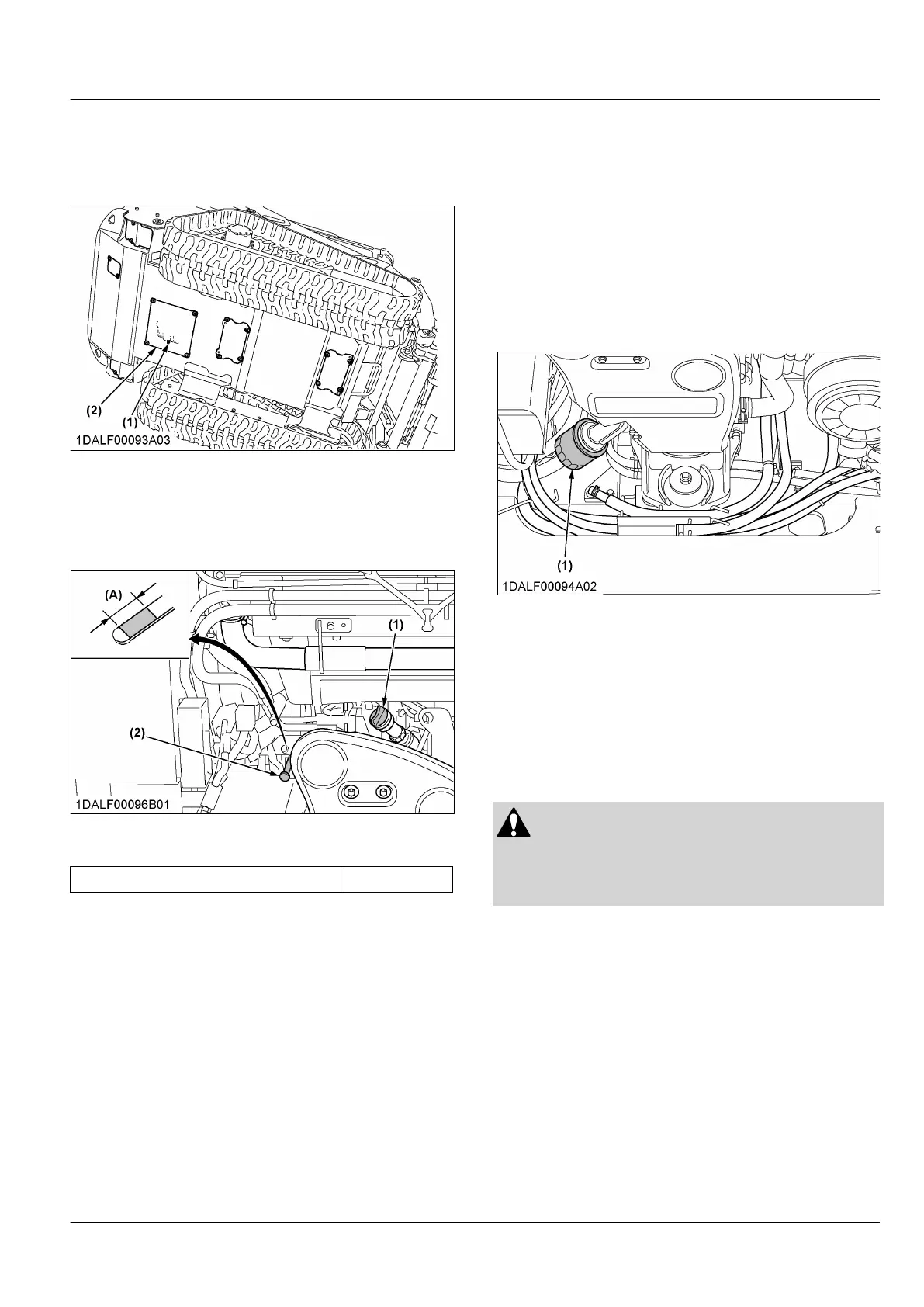

1. Remove
the under cover on the bottom of the
frame.
2. Remove the drain plug on the underside of the
engine and drain all oil.
(1) Drain plug (2) Under cover
3. Re-tighten
the drain plug, and attach the under
cover.
4. Fill up with new oil through the filling port to the
specified level.
(1) Oil filling port
(2)
Engine oil dipstick
(A) Required oil level range
Engine oil volumes (with engine oil filter) 9.0 L
IMPORTANT :
• When
the annual operating hours are below
250 hours, change the engine oil every year.
2. Replacing the engine oil filter
cartridge
1. Place
a container underneath the engine-oil-filter-
cartridge to catch the spilled engine oil.
2. Replace the engine-oil-filter-cartridge at the same
time as changing the engine oil.
a. Remove the engine-oil-filter-cartridge with the
filter wrench.
b. Oil
the O-ring of the new engine-oil-filter-
cartridge lightly.
c. Then tighten the engine-oil-filter-cartridge by
hand.
d. Fill engine oil to the specified level.
e. Let the engine run for approx. five min. and
make sure that the low-fuel-warning-light does
not light up.
The engine oil level is reduced by the amount of
the filter capacity after the engine is started. It is
necessary to add the engine oil.
f. Then stop the engine.
(1) Engine oil filter cartridge
IMPORTANT :
• Always
check the engine oil level after having
exchanged the filter.
3. Checking the radiator hoses and
the clamps
Check the water hoses for proper connection.
WARNING
T
o avoid personal injury or death:
• Wait long enough for the radiator coolant to
cool down.
Carry out the check of the radiator hoses and the
clamps
of every 250 hours or every six months,
whichever comes first.
1. If the hose clamps become loose or water leaks,
tighten the hose clamps properly.
EVERY 250 SERVICE HOURS  MAINTENANCE
