Kyocera KM-5050 Service Manual

2GN/2GP/2GR-6
1-3-69

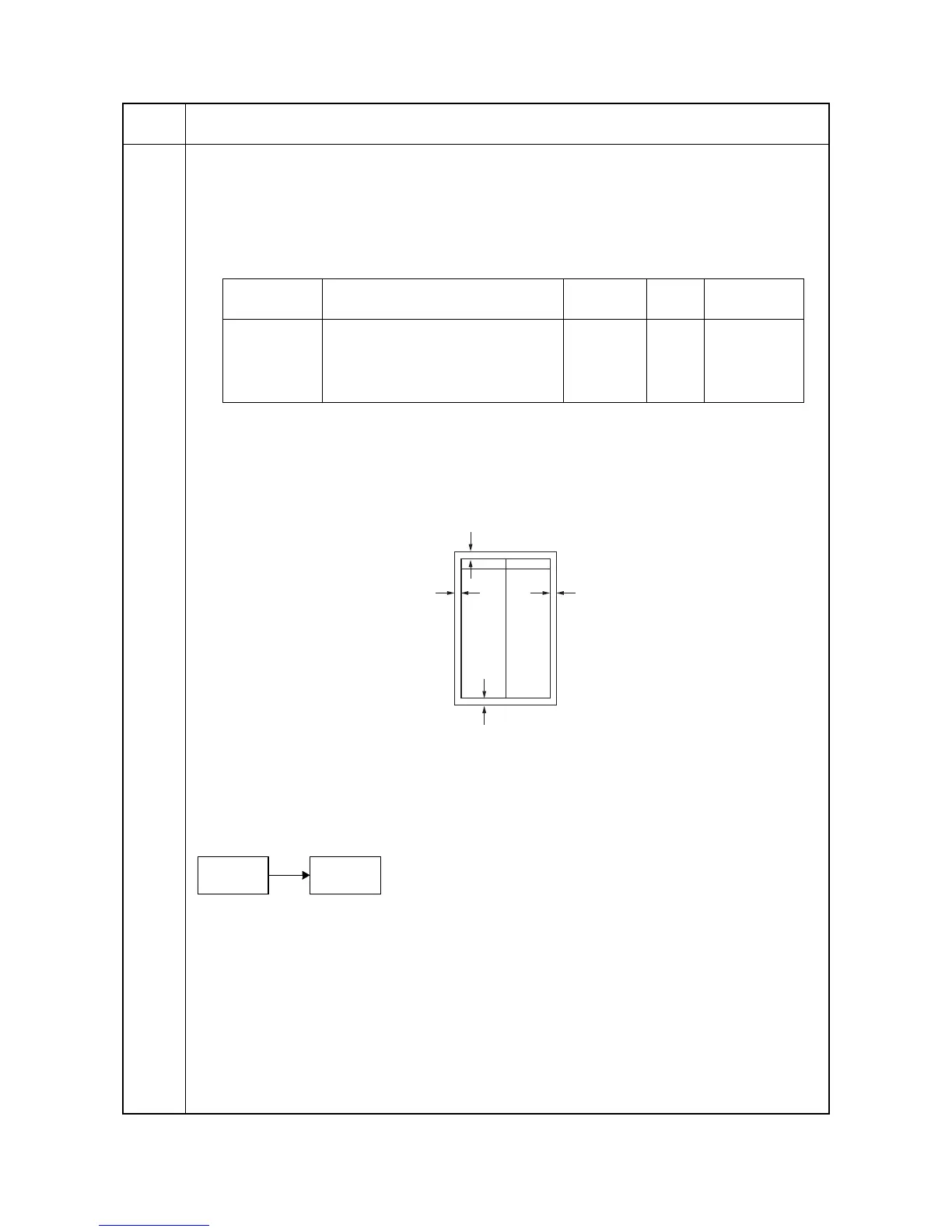

U403
Adjusting margins for scanning an original on the platen
Description
Adjusts margins for scanning the original on the contact glass.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Select the item to be adjusted.
3. Press the system menu key.
4. Place an original and press the start key to make a test copy.
5. Press the system menu key.
6. Change the setting value using the +/- keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-25
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Maintenance
item No.
Description
Display Description
Setting
range
Initial
setting
Change in
value per step
A MARGIN Scanner left margin 0 to 10.0 2.0 0.5 mm
B MARGIN Scanner leading edge margin 0 to 10.0 2.0 0.5 mm
C MARGIN Scanner right margin 0 to 10.0 2.0 0.5 mm
D MARGIN Scanner trailing edge margin 0 to 10.0 2.0 0.5 mm
Scanner leading edge margin
(3±1.5 mm)
Scanner
left margin
(2±1.0 mm)
Scanner
right margin
(2±1.0 mm)
Scanner trailing edge margin
(2±1.0 mm)
U403
U404
(P.1-3-70)

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
