Kyocera KM-5050 Service Manual

2GN/2GP/2GR-1
2-1-4
2-1-2 Main charging section
The main charging section consists of the main charger assembly, drum and so on. The drum is electrically charged uni-
formly by means of a grid to form a latent image on the surface.
The main charger unit charges the drum so that a latent image is formed on the surface, the shield grid ensuring the
charge is applied uniformly.
In addition, the main charger unit is equipped with the main charger cleaning motor, and it is cleaning automatically.

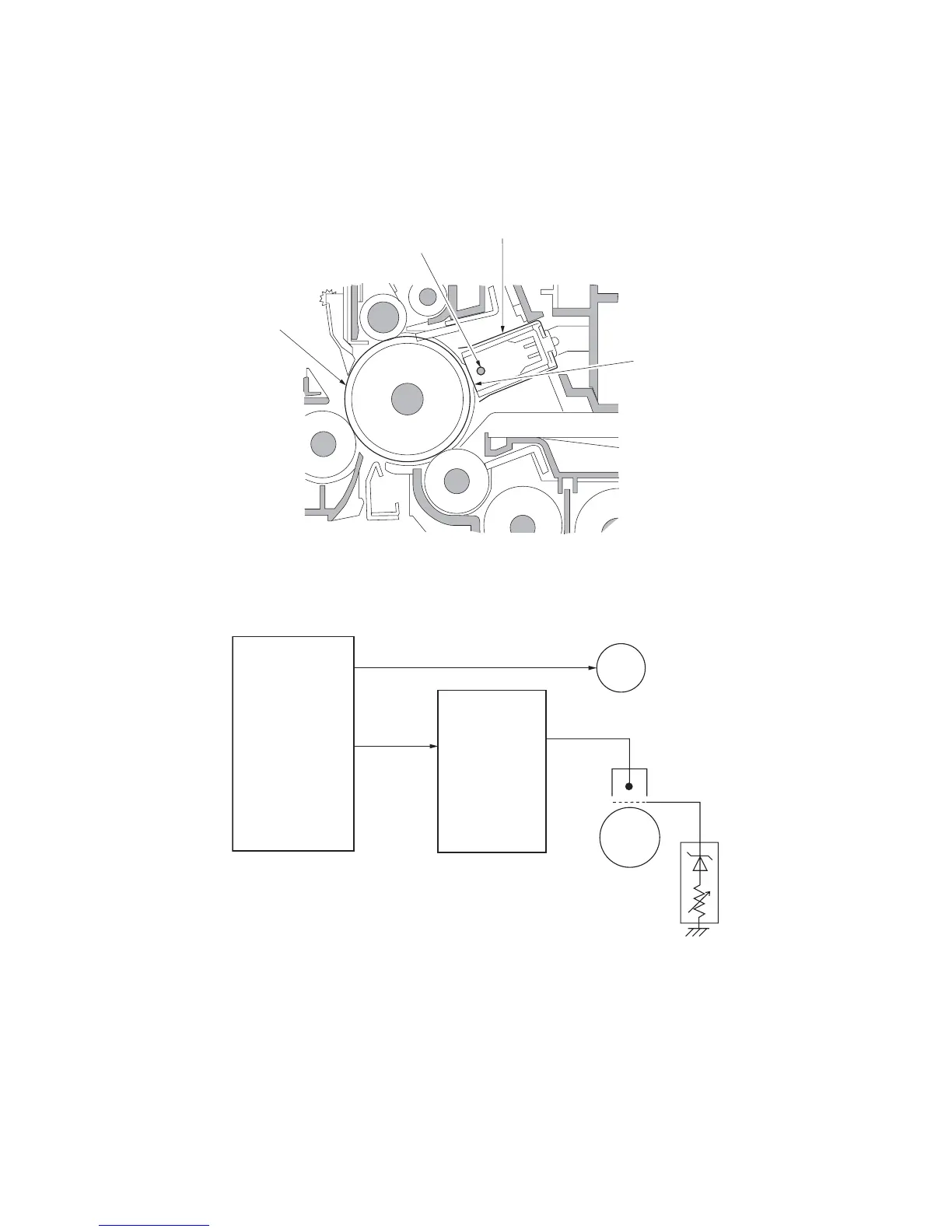

Figure 2-1-5 Main charging section
Figure 2-1-6 Main charging section block diagram
Main charger unit
Shield grid
Tungsten wire
Drum
MHVDR
MCCM_FWD/REV
MC
Grid
ZENER PWB
Drum
MCCM
HVTPWB
YC1-11
YC7-4
YC9-B13,B14
EPWB
