Kyocera KM-5050 Service Manual

2GN/2GP/2GR-6
1-3-21
U034
Adjusting the print start timing
Description
Adjusts the leading edge registration or center line.
Purpose
Make the adjustment if there is a regular error between the leading edges of the copy image and original.
Make the adjustment if there is a regular error between the center lines of the copy image and original.
Method
1. Press the start key.
2. Select the item to be adjusted. The setting screen for the selected item is displayed.
Adjustment: leading edge registration adjustment
1. Select the item to be adjusted.
*: Setting the difference value from reference value
2. Press the system menu key.
3. Press the start key to output a test pattern.
4. Press the system menu key.
5. Change the setting value using the +/- or numeric keys.
For output example 1, decrease the value. For output example 2, increase the value.

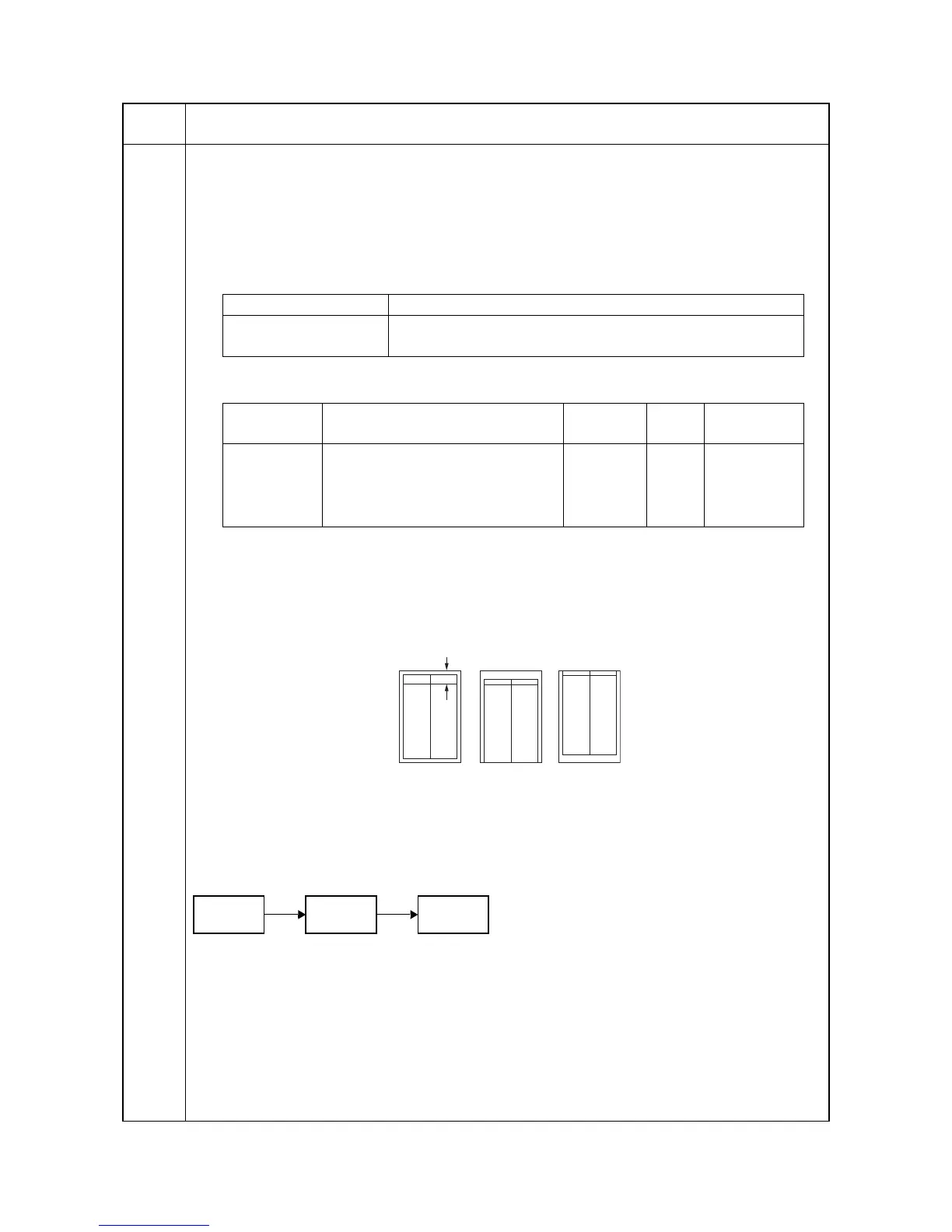

Figure 1-3-4
6. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Maintenance
item No.
Description
Display Description
LSU OUT TOP Leading edge registration adjustment
LSU OUT LEFT Center line adjustment
Display Description Setting
range
Initial
setting
Change in
value per step
TOP Adjustment of reference value 0 to 500 245 0.042 mm
MP TRAY Paper feed from MP tray* -250 to 250 0 0.042 mm
CASSETTE Paper feed from cassette* -250 to 250 -30 0.042 mm
DUPLEX Duplex mode (second)* -250 to 250 -30 0.042 mm
Correct image Output
example 1
Output
example 2
Leading edge registration
U034
U066
(P.1-3-27)
U071
(P.1-3-31)

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
