Kyocera KM-5050 Service Manual

2GN/2GP/2GR
1-4-49

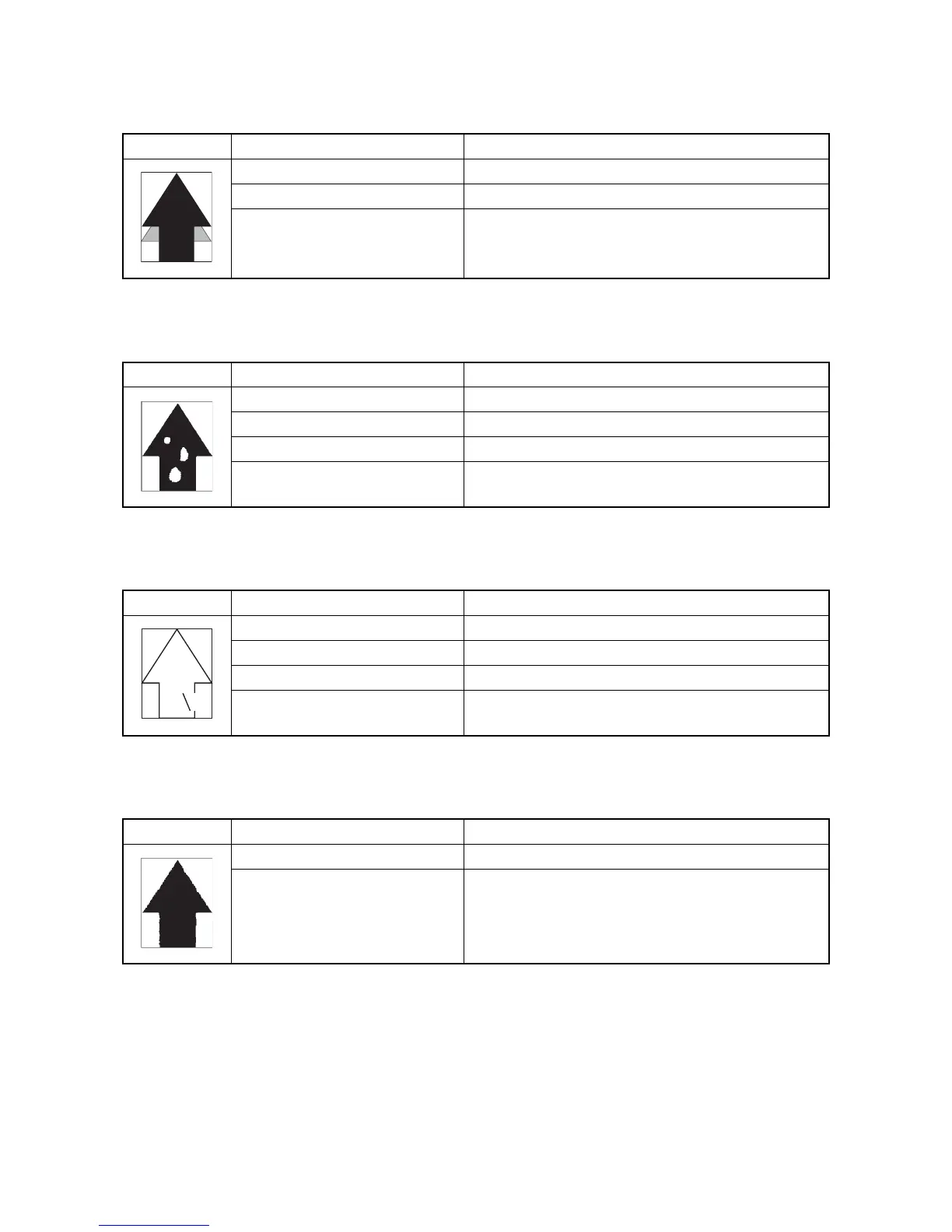

(14) Offset occurs.
(15) Image is partly missing.
(16) Fusing is poor.
(17) Image is out of focus.
Copy example Causes Check procedures/corrective measures
Defective cleaning blade. Replace the drum unit (see page 1-5-25).
Defective fuser unit. Check the heat roller and press roller.
Wrong types of paper. Check if the paper meets specifications. Replace paper.
Copy example Causes Check procedures/corrective measures
Paper damp. Check the paper storage conditions.
Paper creased. Replace the paper.
Drum condensation. Perform the drum refresh operation.
Dirty or flawed drum. Perform the drum refresh operation. If the drum is flawed,
replace the drum unit (see page 1-5-25).
Copy example Causes Check procedures/corrective measures
Wrong types of paper. Check if the paper meets specifications. Replace paper.
Defective pressure springs. Replace the pressure springs.
Flawed press roller. Replace the press roller (see page 1-5-32).
Flawed fuser heater. Replace the fuser heaters (see page 1-5-33).
Copy example Causes Check procedures/corrective measures
Defective image scanning unit. Replace the image scanning unit (see page 1-5-19).
Drum condensation. Perform the drum refresh operation.

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
