Kyocera KM-5050 Service Manual

2GN/2GP/2GR-2
2-2-4
(3) Motors

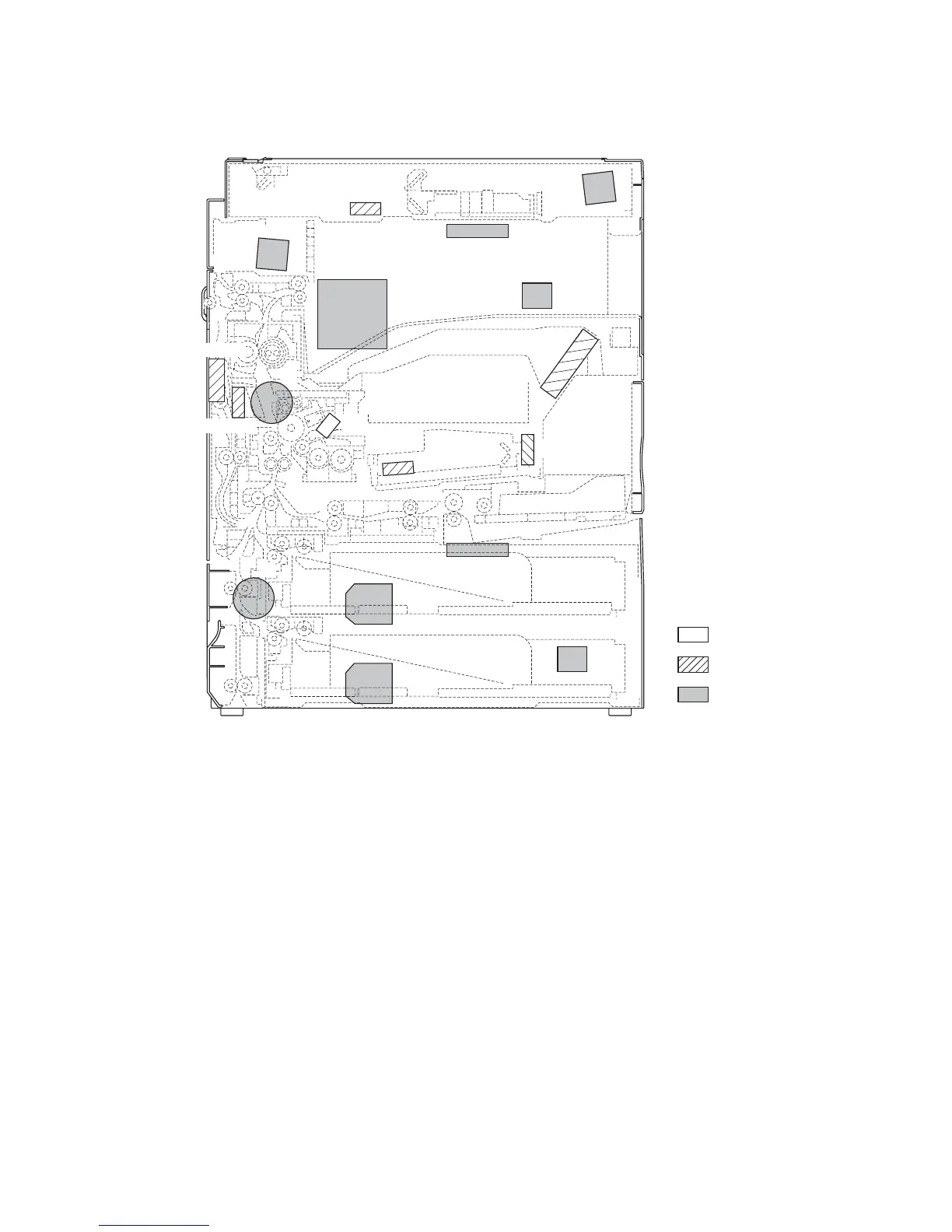

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Upper lift motor (LM-U) ................................ Drives cassette 1 lift.
4. Lower lift motor (LM-L)................................. Drives cassette 2 lift.
5. Scanner motor (SM)..................................... Drives the optical system.
6. Eject motor (EM).......................................... Drives the eject section.
7. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
8. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
9. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior (around the power source PWB).
10. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior (around the power source PWB).
11. Cooling fan motor 5 (CFM5) ........................ Cools the machine interior (around the LSU).
12. Cooling fan motor 6 (CFM6) ........................ Cools the machine interior (controller box).
13. Cooling fan motor 7 (CFM7) ........................ Cools the machine interior (operation panel).
14. Cooling fan motor 8 (CFM8).......................... Cools the machine interior and supports paper transfer for duplex copying.
15. Cooling fan motor 9 (CFM9) ......................... Cools the machine interior and supports paper transfer for duplex copying.
16.
Cooling fan motor 10 (CFM10) ..................... Cools the machine interior and supports paper transfer for duplex copying.
17. Cooling fan motor 11 (CFM11)..................... Cools the machine interior (around the paper conveying).
18. Cooling fan motor 12 (CFM12) .................... Cools the machine interior (around the paper conveying).
19. Cooling fan motor 13 (CFM13) .................... Cools the machine interior (around the paper conveying).
20. Cooling fan motor 14 (CFM14) .................... Cools the machine interior.
21. Polygon motor (PM)..................................... Drives the polygon mirror.
22. Main charger cleaning motor (MCCM)......... Drives the main charger auto cleaning.
3
4
21
13
5
6
7
20
12
8
1
22
10
11
14,15,16
17,18,19
2
Machine front
Machine inside
Machine rear
9

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
