Kyocera KM-5050 Service Manual

2GN/2GP/2GR-1
1-3-58

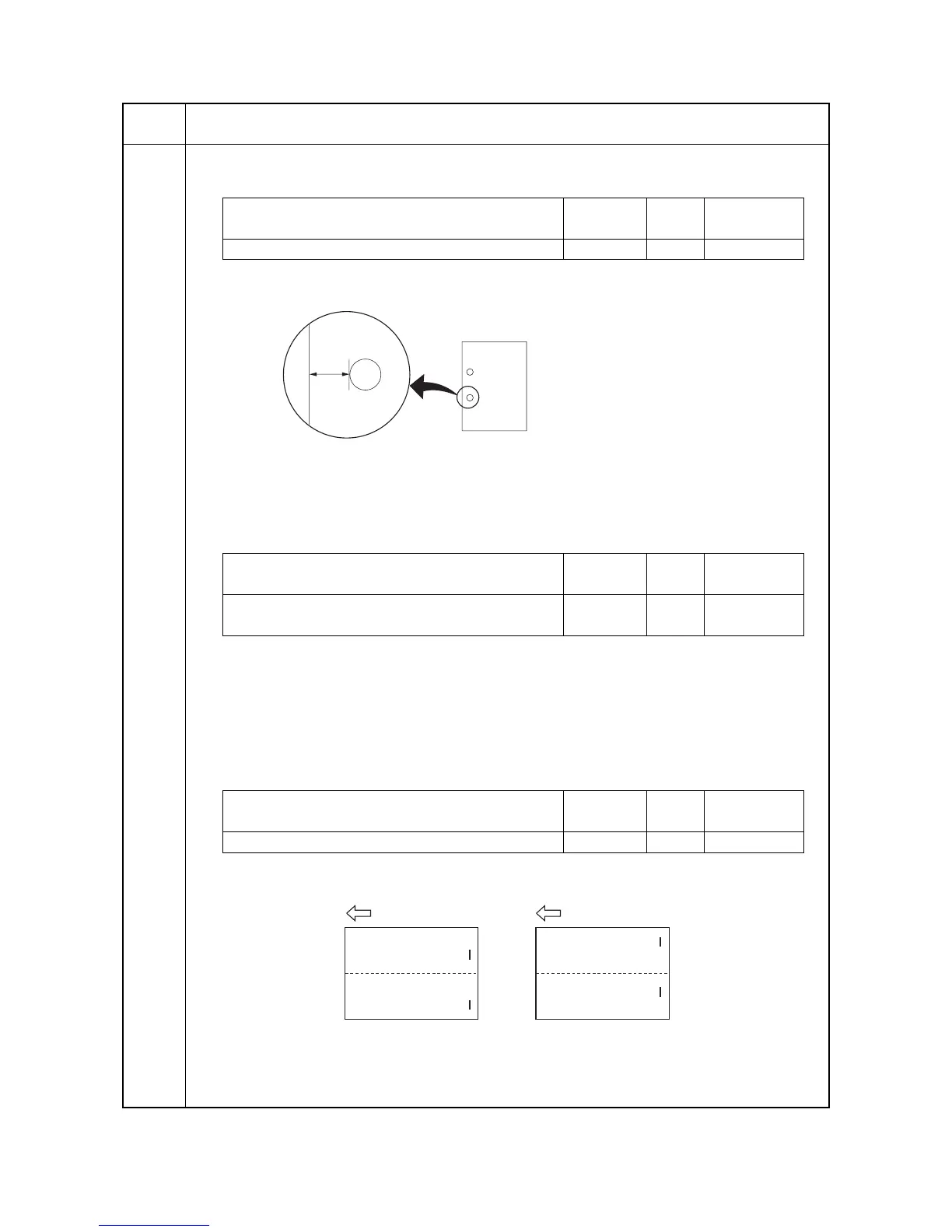

U246
Setting: adjustment of the paper stop timing
1. Select PUNCH POS ADJ.
2. Change the setting using the +/- or numeric keys.
If the distance of the position of a punch hole is smaller than the specified value A, increase the preset
value. If the distance is larger than the value A, decrease the preset value.
Figure 1-3-19
3. Press the start key. The value is set.
4. To return to the screen for selecting an item, press the stop key.
Setting: adjustment of front/rear side registration home position
1. Select [WIDTH F HP ADJ] or [WIDTH R HP ADJ].
2. Change the setting using the +/- or numeric keys.
3. Press the start key. The value is set.
4. Press the stop key. The screen for selecting a maintenance item No. is displayed.
5. Enter maintenance mode U240 and select [FINISHER MOTOR], then [WIDTH TEST(A3)].
The width guides of the internal tray will move to A3-size position.
6. Pull the internal tray, insert paper between the guides and check that paper is abut the guides.
7. Repeat the above adjustment until paper is properly in position.
Setting: adjustment of front and back stapling home position
1. Select [STAPLE HP ADJ].
2. Change the setting using the +/- or numeric keys.
When staple positions are off toward the front side of the machine (sample 1), increase the preset value.
When staple positions are off toward the rear side of the machine (sample 2), decrease the preset value.
Figure 1-3-20
3. Press the start key. The value is set.
4. To return to the screen for selecting an item, press the stop key.
Maintenance
item No.
Description
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of the paper stop timing -10 to 10 0 0.49 mm
A
Preset value A: 5.5
+
-
2 mm (inch)
9.5
+
-
2 mm (metric)
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of front side registration home position -10 to 10 0 0.314 mm
Adjustment of rear side registration home position -10 to 10 0 0.314 mm
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of front and back stapling home position -10 to 10 0 0.32 mm
Sample 1 Sample 2

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
