2GN/2GP/2GR-5
1-5-21
Yes
No
Press the start key and make
a test copy at 100% magnification.
Start
Remove the platen.
Loosen the two screws and
adjust the position of the
mirror 2 frame.
For copy example 1,
move the frame in the direction of
the white arrow ( ).
For copy example 2,
move the frame in the direction of
the black arrow ( ).
End
Is the image correct?
Place the original
on the platen.
Retighten the two screws and
refit the platen.

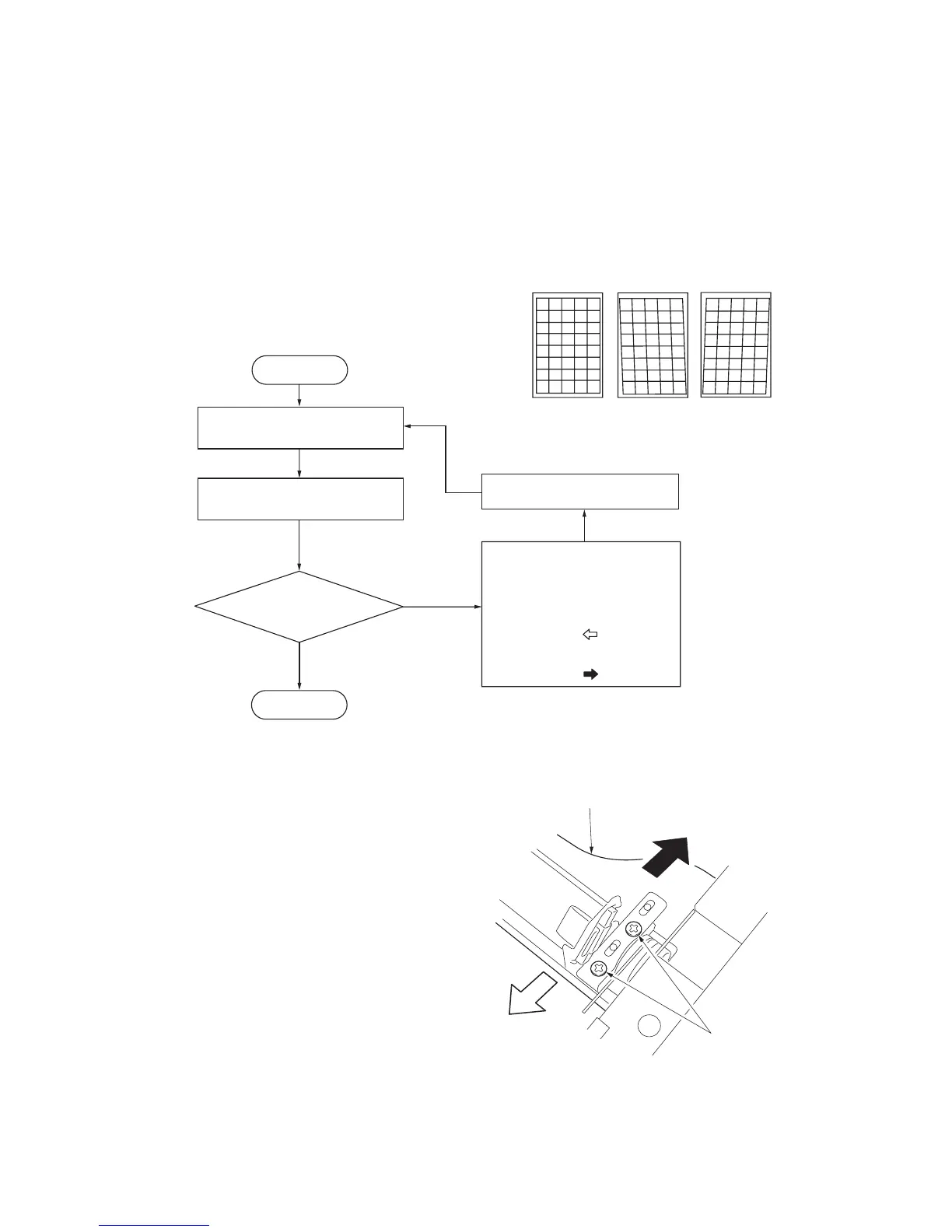

(4) Adjusting the position of the ISU (reference)
Perform the following adjustment if the leading and trailing edges of the copy image are laterally skewed (lateral square-
ness not obtained).
Caution:
Adjust the deflection in the paper at the registration roller first (see page 1-3-23). Check for the longitudinal squareness of
the copy image, and if it is not obtained, perform the longitudinal squareness adjustment.
Before making the following adjustment, output a VTC-PG2 pattern in maintenance item U993 to use as the original for the
adjustment.
Procedure
Figure 1-5-42
Figure 1-5-43
Original Copy
example 1
Copy
example 2
Screws
Mirror 2 frame
To Next Page
