Kyocera KM-5050 Service Manual

2GN/2GP/2GR-1
1-5-26

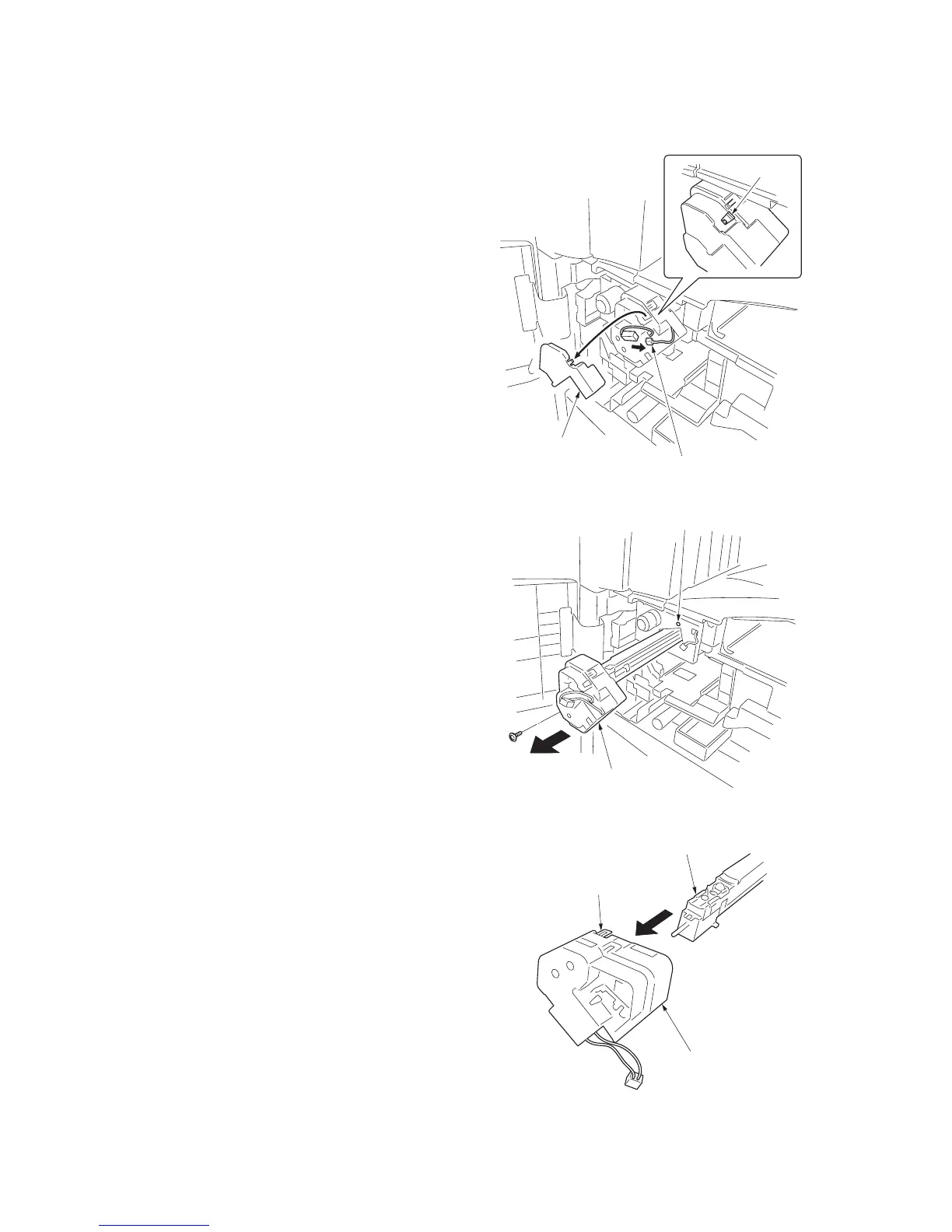

(2) Detaching and refitting the main charger unit
Follow the procedure below to replace the main charger unit.
Procedure
1. Remove the developing unit (see page 1-5-
28).
2. Release the inserted part and remove the
connector cover.
3. Remove the connector.
Figure 1-5-53
4. Remove the screw.
5. While pushing the hole with a sharp-pointed
object, remove the main charger unit.
Figure 1-5-54
6. Release the inserted part and remove the
cleaning motor unit from the main charger
unit.
7. Replace the main charger unit.
8. Refit the cleaning motor unit to the main
charger unit.
9. Install the main charger unit.
Figure 1-5-55
Connector cover
Connector
Inserted part
Main charger unit
Hole
Main charger unit
Cleaning motor unit
Inserted part

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
