Kyocera KM-5050 Service Manual

2GN/2GP/2GR-1
1-3-38
U093

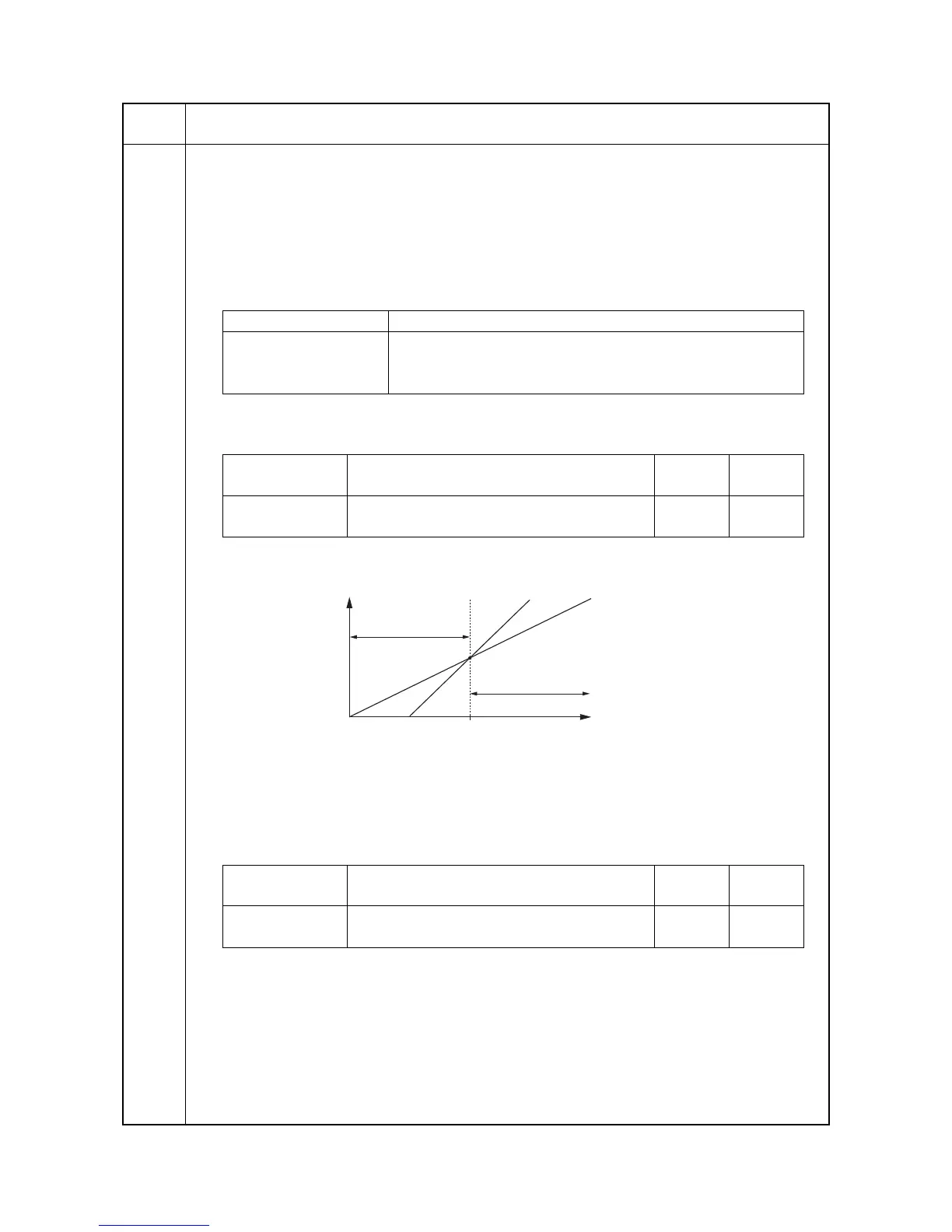

Setting the exposure density gradient
Description
Changes the exposure density gradient in the manual density mode, depending on respective image quality
modes.
Purpose
To set how the image density is altered by a change of one step in the manual density adjustment for respec-
tive image quality modes. Also used to make copy images darker or lighter.
Method
1. Press the start key.
2. Select the image quality mode. The setting screen for the selected item is displayed.
Setting: Density in text and photo mode
1. Select the item to be set.
2. Adjust the setting using the +/- or numeric keys.
Increasing the setting makes the change in density larger, and decreasing it makes the change smaller.
Figure 1-3-17
3. Press the start key. The value is set.
4. To return to the screen for selecting an item, press the stop key.
Setting: Density in text mode
1. Select the item to be set.
2. Adjust the setting using the +/- or numeric keys.
Increasing the setting makes the change in density larger, and decreasing it makes the change smaller.
3. Press the start key. The value is set.
4. To return to the screen for selecting an item, press the stop key.
Maintenance
item No.
Description
Display Description
MIXED Density in text and photo mode
TEXT Density in text mode
PHOTO Density in photo mode
Display Description Setting
range
Initial
setting
MIXED DARKER Change in density when manual density is set dark 0 to 3 0
MIXED LIGHTER Change in density when manual density is set light 0 to 3 0
Image density
Density adjustment
Dark
Light
Light
Center
Dark
Setting: 0
Setting: 3
Set to DARKER
Set to LIGHTER
Display Description Setting
range
Initial
setting
TEXT DARKER Change in density when manual density is set dark 0 to 3 0
TEXT LIGHTER Change in density when manual density is set light 0 to 3 0
