2GN/2GP/2GR-1

1-5-5

(2) Detaching and refitting the MP separation, MP paper feed and MP forwarding pulleys

Follow the procedure below to replace the MP separation, MP paper feed and MP forwarding pulleys.

Procedure

Removing the MP unit

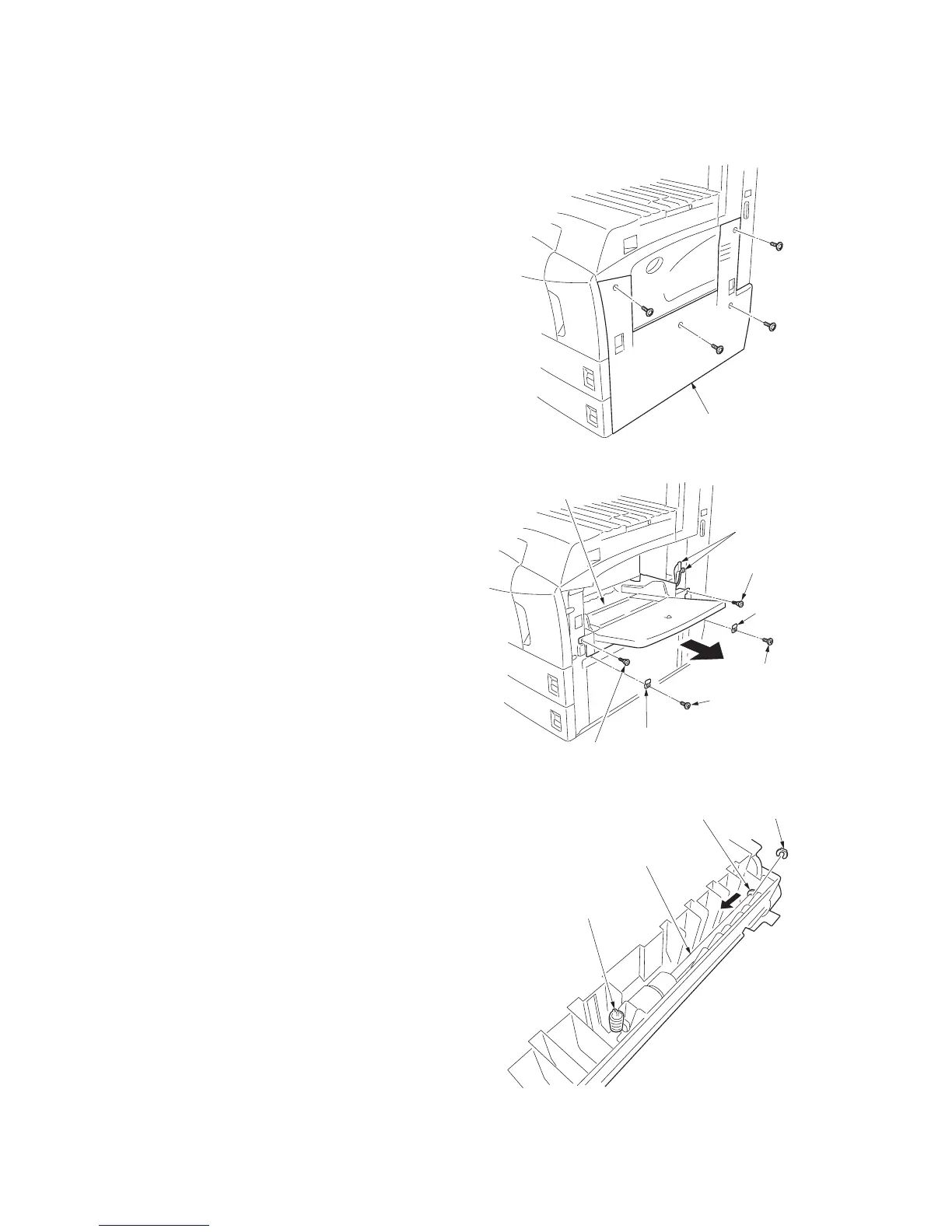

1. Remove four screws and remove the right

lower cover.

Figure 1-5-9

2. Remove two screws and two MP holder

plates.

3. Remove two pins, two screws and two con-

nectors, and then remove the MP unit.

Figure 1-5-10

Removing the MP separation pulley

4. Reverse the MP unit and remove the spring

and stop ring from the MP separation pulley

shaft and move the bushing inside.

Figure 1-5-11

Right lower cover

MP unit

Connectors

Screw

MP holder

plate

MP holder

plate

Stop ring

MP separation

pulley shaft

Spring

Bushing
