Kyocera KM-5050 Service Manual

2GN/2GP/2GR-3
1-1-4
1-1-2 Parts names
(1) Machine

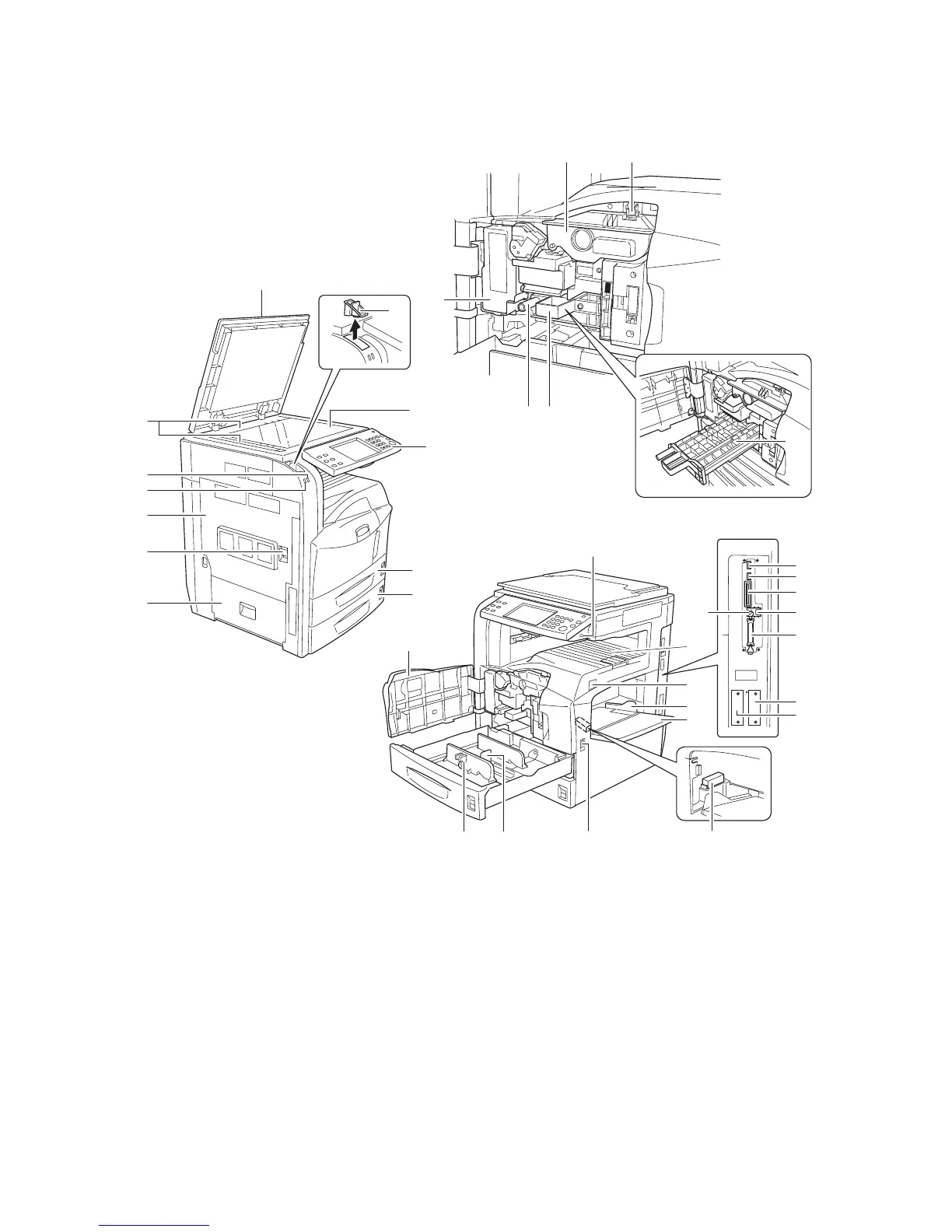

Figure 1-1-1
19
20
28
27
36
35
34
21 22
32
23
24
25
26
33
31
30
29
1413
16 17
15
18
3
9
10
1
11
12
8
6
5
4
2
7
1. Original cover (Option)
2. Original size indicator plates
3. Clip holder
4. Reception indicator
5. Error indicator
6. Left cover 1
7. Left cover 1 Lever
8. Left cover 2
9. Platen
10. Operation panel
11. Cassette 1
12. Cassette 2
13. Toner container
14. Toner container stopper
15. Waste toner box
16. Green knob (A1)
17. Paper feed unit (A2)
18. Paper feed unit cover (A3)
19. USB memory slot (A1)
20. Front cover
21. Paper width adjusting tab
22. Length adjustment plate
23. Top tray
24. Main power switch
25. Paper width guides
26. Multi purpose tray
27. Memory card cover holder
28. Handles
29. USB memory slot (A2)
30. USB memory slot (A3)
31. Memory card slot
32. USB interface connector
33. Network interface connector
34. Parallel interface connector
35. Option interface slot (OPT1)
36. Option interface slot (OPT2)

Kyocera KM-5050 Specifications

General

electrical requirements	120V, 60Hz, 11.5A
max monthly volume	200, 000 Pages Per Month
warm-up time	Within 30 Seconds
first copy out	3.5 Seconds
pages per minute	50 Letter, 26 Legal, 26 Ledger
system memory	Standard 512MB RAM, upgradeable to 1GB
hard disk drive	Standard 80GB HDD
resolution	600 x 600 DPI
standard paper sources	Dual 500 Sheet Drawers, 200 Sheet MPT
drawer paper size	5.5" x 8.5" - 11" x 17"
paper weight	13-28 lb Bond via Paper Drawers, 13 lb Bond -110 lb Index via MPT
paper size	5.5" x 8.5" – 11" x 17"
paper weight	17 – 20 lb Bond
capacity	100 Sheet DSDP / 50 Letter Size Originals Per Minute
dimensions	22.4”W x 20.7”D x 5.9”H
weight	29 lbs
stack capacity	Main Tray (A): 3, 000 Sheets; Sub Tray (B): 200 Sheets, Sub Tray (C): 50 Sheets
dimensions	26.9"W x 22.2"D x 42.8"H
weight	121 lbs
number of trays	7
dimensions	20.1"W x 15.7"D x 18.5"H
weight	22 lbs
weight	6.6 lbs
dimensions	25.9"W x 17.9”D x 10.5"H
weight	53 lbs
dimensions	22.0"W x 20.7"D x 36.0"H
weight	55 lbs
dimensions	12.2”W x 16.1”D x 6.3”H
weight	19.8 lbs
dimensions	23.0”W x 23.6”D x 12.4”H
weight	50.7 lbs
dimensions	23.0”W x 23.2”D x 12.4”H
weight	57.3 lbs

Weight and Dimensions

dimensions	23.6"W x 25.4"D x 29.3"H
weight	188 lbs
