Transmission Line Primer

Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 136

 When signal changes plane:

• Try not to change the reference plane, if possible.

• When a reference plane switches to different power rail, a stitching capacitor is

required (Figure 21-8).

• When the same ground and power reference plane changes to a different layer, a

stitching via is required (Figure 21-9).

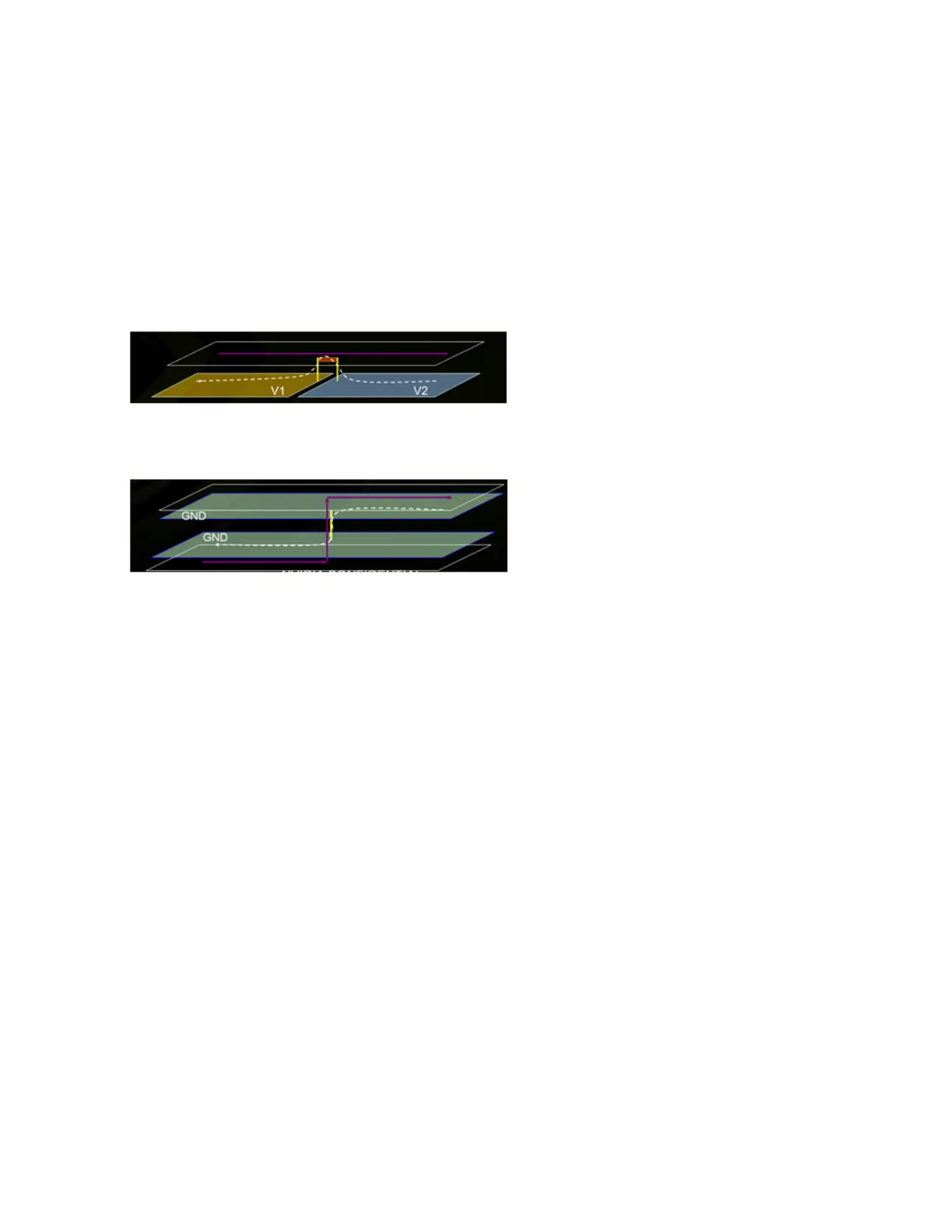

Figure 21-8. Switching Reference Planes

Figure 21-9. Reference Plane Switch Using Via
