Main Connector Details
Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 13
If a fixture is used to do the mating, then that fixture should hold the mating connectors
parallel to within ± 2 degrees. Also, the fixture should allow the connectors to become parallel
as the mating process progresses.
To remove the Jetson AGX Xavier Series module correctly, follow the following sequence and
mounting hardware instructions:
1. The PCB design needs to have enough finger reachability/space required to hold the board
for un-mating.
2. Remove mounting screws (4x) from the top of the module.

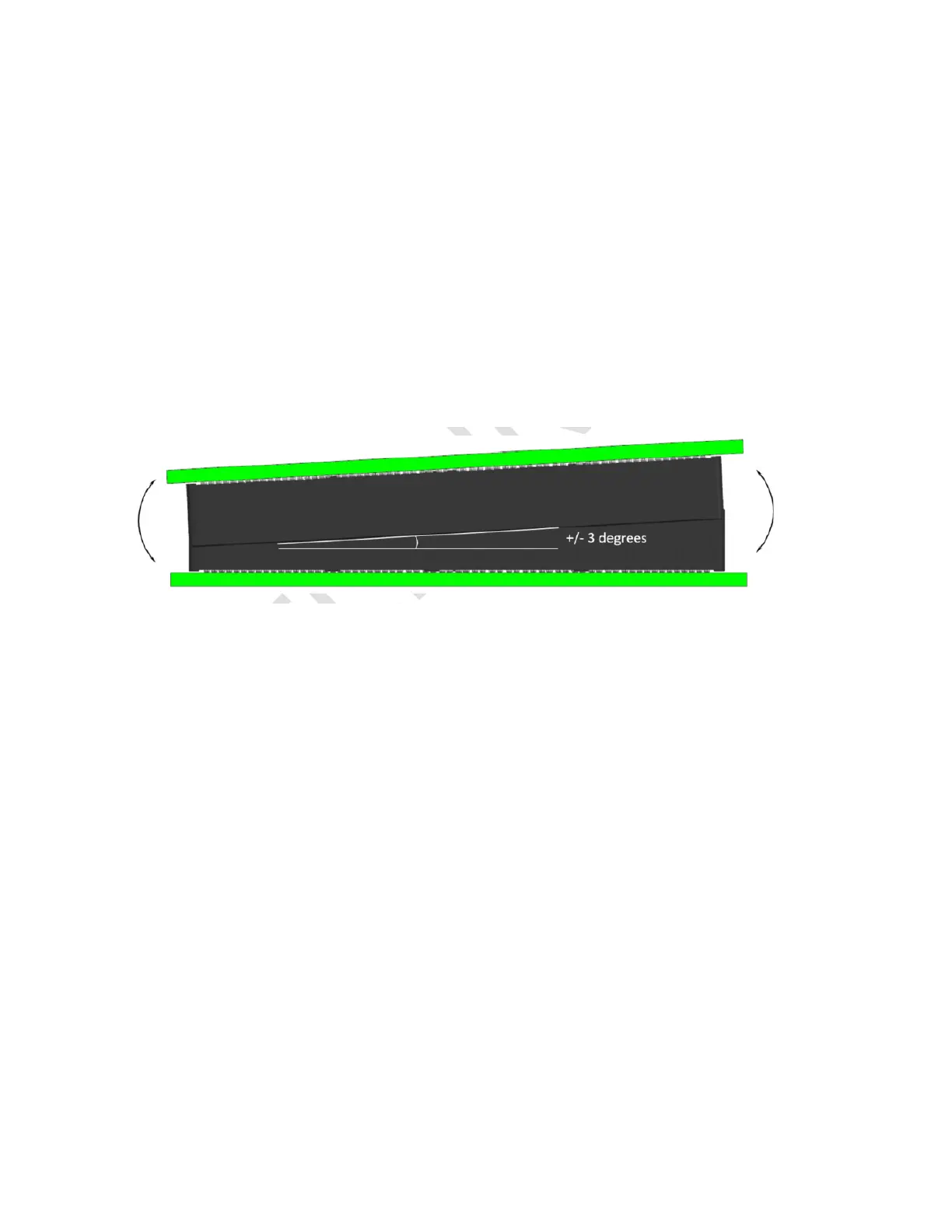

3. Rock the top board a few times, no more than ± 3 degrees, to gradually disengage the
connectors.
Figure 3-5. Module Removal
