Nvidia Jetson AGX Xavier Series User Manual

Power
Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 26

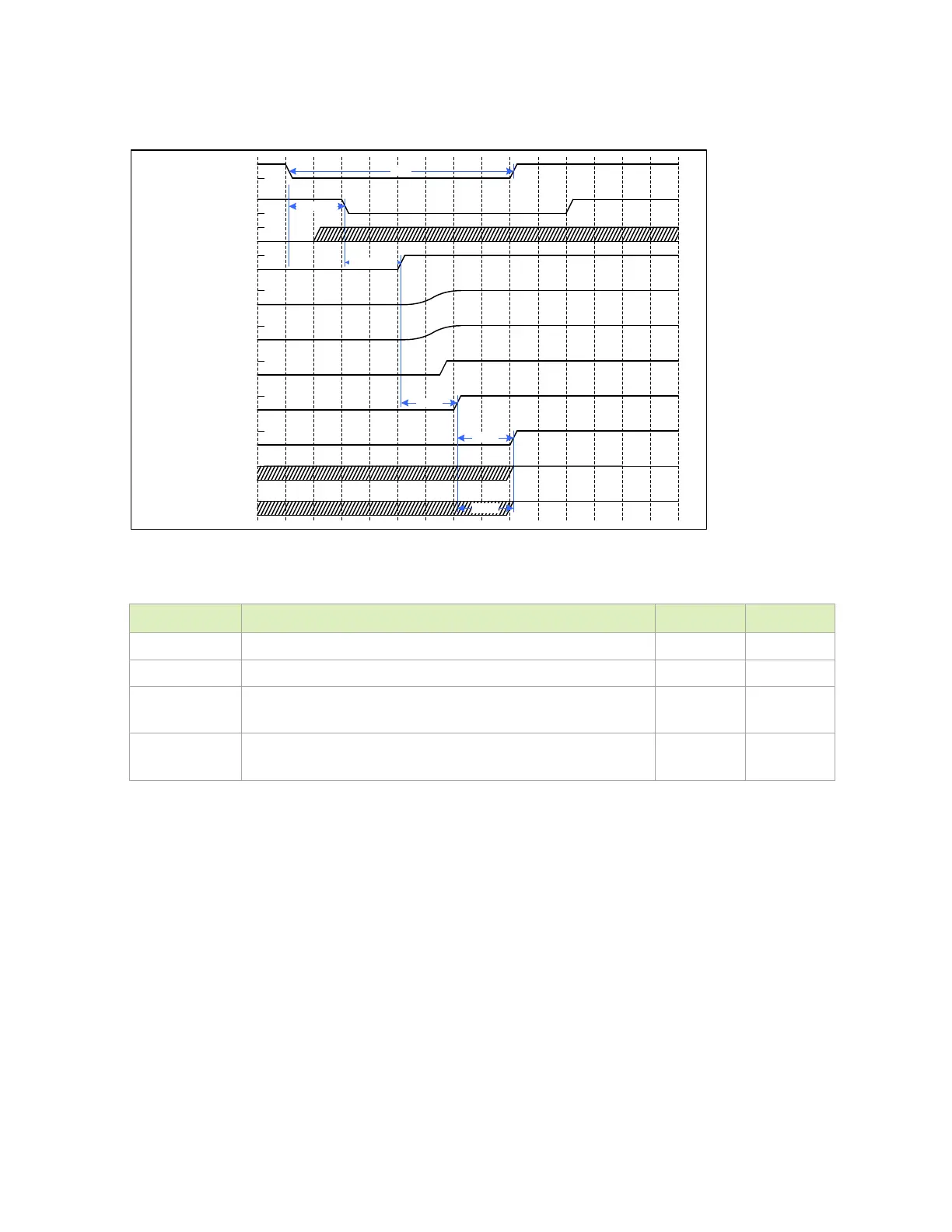

Figure 5-9. Power-OFF to On Sequence Power Button Case
MODULE_POWER_ON
BUTTON_POWER_ON*
CARRIER_POWER_ON
RESET_N
VIN_PWR_ON
POWER_BTN_ N
FORCE_SHUTDOWN_N
T_ON
T_PB_OUT
T_ VP WR _O N
T_ MP O
T_CPO
ACOK
T_CPO
SYS_VIN_HV
SYS_VIN_MV
VDDIN_PWR_BAD_N
Table 5-5. Power-OFF to On Timing Power Button Case
Timing Parameter Typical Units
T_PB_OUT Delay to POWER_BTN_N assertion (de-bounce only) 20 ms
T_VPWR_ON Delay to first rail ON 0 ms
T_MPO MODULE_POWER_ON (module PMIC enable) delay from
power VIN_PWR_ON rising edge
80 ms
T_CPO Maximum allocated delay to CARRIER_POWER_ON
assertion
10 ms
5.4.2.3 Power OFF -> Power ON (Auto-Power-On Case)
When the user connects the main power source, the MCU sends the power enable signals to
the module (
VIN_PWR_ON) and enables MODULE_POWER_ON. This is accomplished by having the
ACOK signal driven high instead of pulled to
GND.
The signal representing the power button to Jetson AGX Xavier (
POWER_BTN_N) will continue
following the power button (
BUTTON_POWER_ON*) behavior. However, once the power ON
sequence is initiated by the connection of the main power source, and ACOK is driven high (by
push-pull driver powered from 3V3_AO), the power button signals will not affect the MCU
behavior until the
PWR_GOOD signal verification is complete.
