Power

Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 27

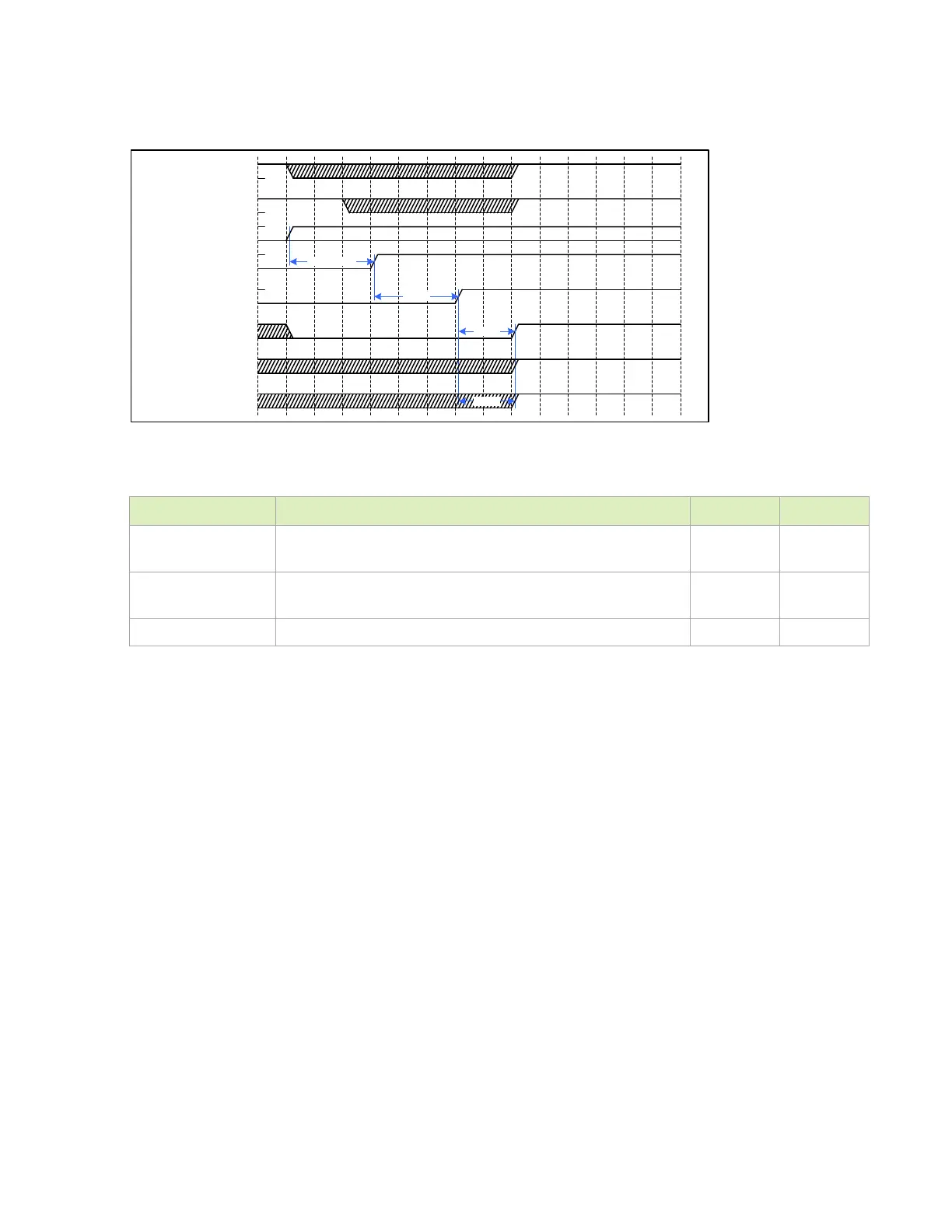

Figure 5-10. Power-OFF to On Sequence Auto Power-On Case

MODULE_POWER_ON

BUTTON_POWER_ON*

CARRIER_POWER_ON

RESET_N

VIN_PWR_ON

POWER_BTN_ N

FORCE_SHUTDOWN_N

T_ VP WR _O N

T_ MP O

T_CPO

ACOK

T_CPO

Table 5-6. Power-OFF to On Timing Auto Power-On Case

Timing Parameter Typical Units

T_VPWR_ON_AC Delay from ACOK detected high with main power source

applied to first rail ON (de-bounce only)

20 ms

T_MPO_AC MODULE_POWER_ON active delay from VIN_PWR_ON

rising edge

80 ms

T_CPO_AC Maximum allocated delay to CARRIER_POWER_ON active 10 ms

5.4.2.4 Power ON -> Power OFF (Power Button Held Low >

10 Seconds)

With the system in power ON state, the user holds the power button for more than 10 seconds.

The same button signal is relayed to Jetson AGX Xavier through the buffered signal

POWER_BTN_N. The system is forced to shut down at the 10 seconds mark.
