Nvidia Jetson AGX Xavier Series User Manual

USB, PCIe, and UFS
Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 41
7.1 USB
Jetson AGX Xavier supports up to four USB 2.0 ports and up to three USB 3.1 ports. There are
examples in this section to either implement a simple USB 3.1/2.0 connection to a USB 3.1
Type A connector or to replicate the USB Type C connections used on the NVIDIA Developer
Kit. Designs that intend to follow the NVIDIA Developer Kit carrier board design and include
the Type C PD Controller (CYPD4226) need to replicate the circuitry on the latest P2822 carrier
board exactly. NVIDIA will provide the binary and the customer should get the flashing
instructions from Cypress. If the design requires a simpler solution (Type A or similar), then
refer to the software adaptation guide for information.
Notes:
• Some non-compliant USB 3.1 devices may fail unless USB 3.1 Gen2 is disabled.
• See Section 15.1 “USB Recover Mode” for requirements for USB recovery mode.

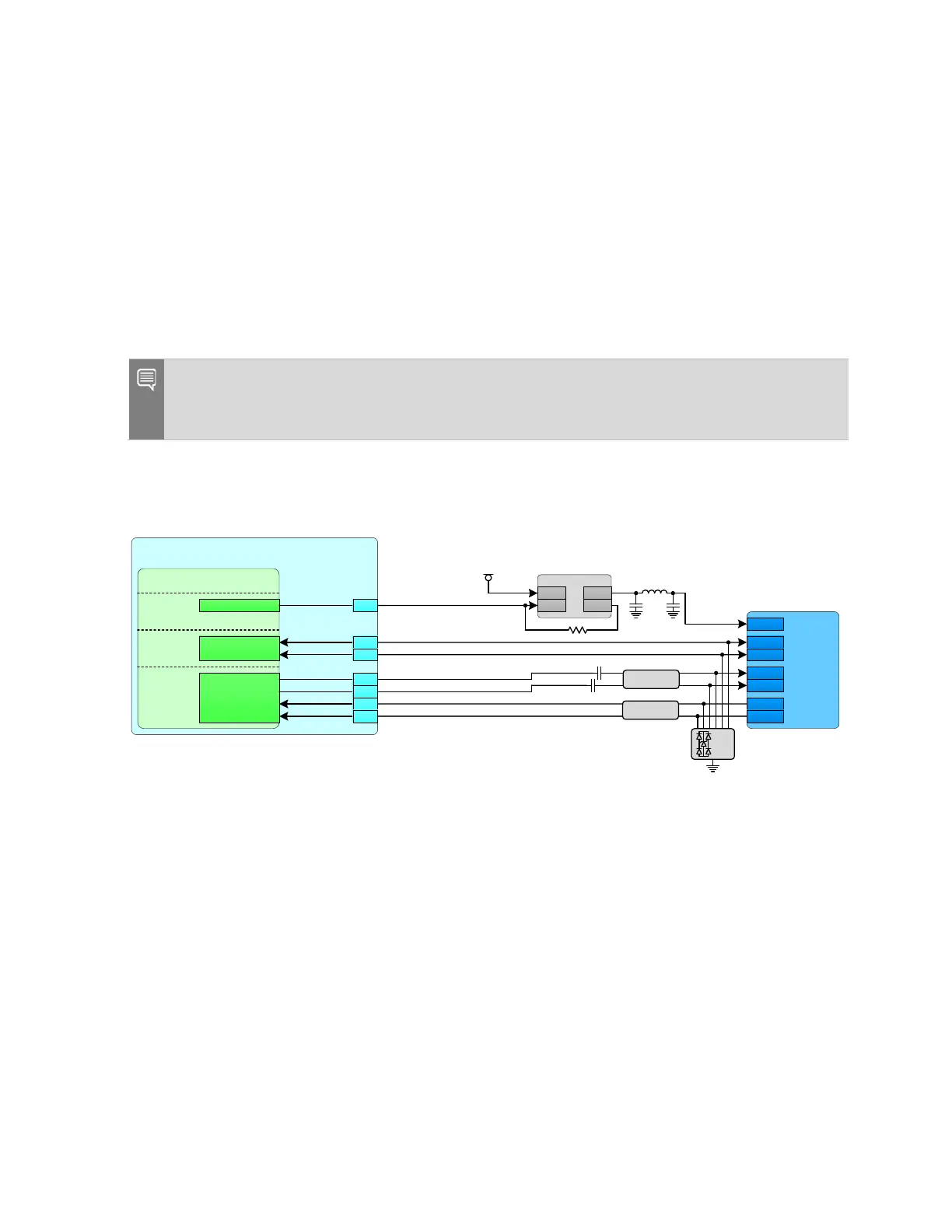

Figure 7-1. Simple USB Type A Connection Example
Jetson AGX Xavier
SoC
USB 2.0
USB 3.1
PCIe
UFS
USB1_ DP
USB1_ DN
C11
C10
PEX_TX6_P
PEX_TX6_N
PEX_RX6_P
PEX_RX6_N
K17
K16
B1 6
B1 7
GP IO 22
USB1_P
USB1_N
U PH Y _T X 6_ P
U PH Y _T X 6_ N
UPHY_RX6_P
UPHY_RX6_N
USB 3.1
Type A
VBUS
TX+
D+
D–
TX–
RX+
RX–
E SD
Load S witch
EN OC
IN OUT
VDD_5V0
Common
Mode Choke
0. 1 uF
0. 1 uF
Common
Mode Choke
100Ω
UART
USB_VBUS_EN0
F54
USB_VBUS_EN0
Type C connections are based on the NVIDIA carrier board design. Additional interface
assignments shown in Figure 7-2 are also based on the carrier board usage.
Designs that intend to follow the NVIDIA carrier board design and include the Type C PD
Controller (CYPD4226 - U513 on NVIDIA carrier board) need to replicate the circuitry on the
latest P2822 carrier board exactly. NVIDIA will provide the binary and the customer should get
the flashing instructions from Cypress.
If the CYPD4226 PD controller is implemented in a design, it is recommended that test points
be included that connect to the
SW_CLK, SW_IO and XRES pins as well as VDD_AO. These would be
required to flash the binary during manufacturing.
