Nvidia Jetson AGX Xavier Series User Manual

Power
Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 22
5.3 SYS_VIN_HV Input
The Jetson AGX Xavier Developer Kit carrier board allows the main system power to be
supplied either by one of the USB Type C connectors or a DC power Jack. The details for
implementing Type C for power, etc. can be found in the P2822 reference schematics. If a
design only requires a simple DC power jack, the circuit in the following figure can be used.
Note: Designs that intend to follow the NVIDIA carrier board design and include the Type C PD
Controller (CYPD4226 - U513 on NVIDIA carrier board) need to replicate the circuitry on the
latest P2822 carrier board exactly. NVIDIA will provide the binary and the customer should get
the flashing instructions from Cypress.

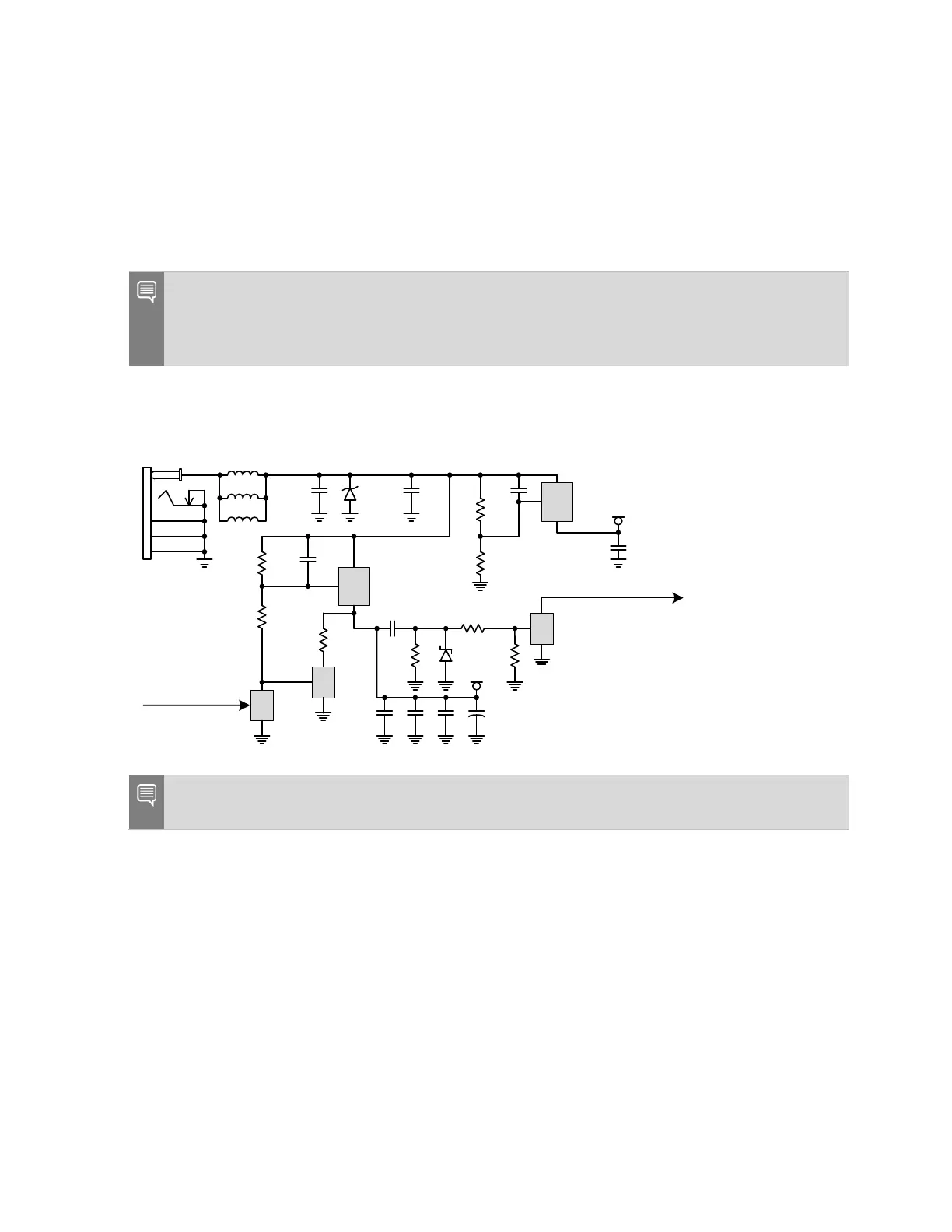

Figure 5-5. Simplified DC Jack Power Connections
DC Jack
G
S
D
PWR
FET
10 0k Ω, 1%
LB-30Ω
LB-30Ω
LB-30Ω
10 kΩ, 1%
G
S
D
PWR
FET
VCC_SRC_FET
10 kΩ, 1%10 kΩ, 1%
G
D
S
FET
22 1Ω, 1%
G
D
S
FET
10 kΩ, 1%
10 0k Ω, 1%
10 kΩ, 1%
+
VCC_SRC
VIN_PWR_ON
G
D
S
FET
VIN_PWR_BAD_N
0. 1uF 4. 7uF
0. 1uF
22 uF
1uF
22 uF 22 uF 22 uF 10 0uF
0. 1uF
0.2 A, 30 V
R B5 21
S30T1G
0.2 25W
25 . 6V
BZX 84
C 24LT1 G
DFN 3x3
P E50 7BA
DFN 3x3
P E50 7B
A
P ZP1 03BY
QM241 4K
P ZP1 03
BY
Note: Designs which implement an eFUSE or current limiting device on the input power rail of
the module should select a part that DOES NOT limit reverse current.
5.4 Power-On
This section details the power-on features for Jetson AGX Xavier.
5.4.1 Power-On No MCU
The Jetson AGX Xavier Developer Kit carrier board implements a button power-on supervisor
circuit that utilizes an EFM8SB10F8G-A MCU from Silicon Labs. For designs that do not want
to use this approach, a circuit that does not use the MCU is shown in the following figure.
