YH4
GRAND
VITARA
1
2
2. Condenser dryer section

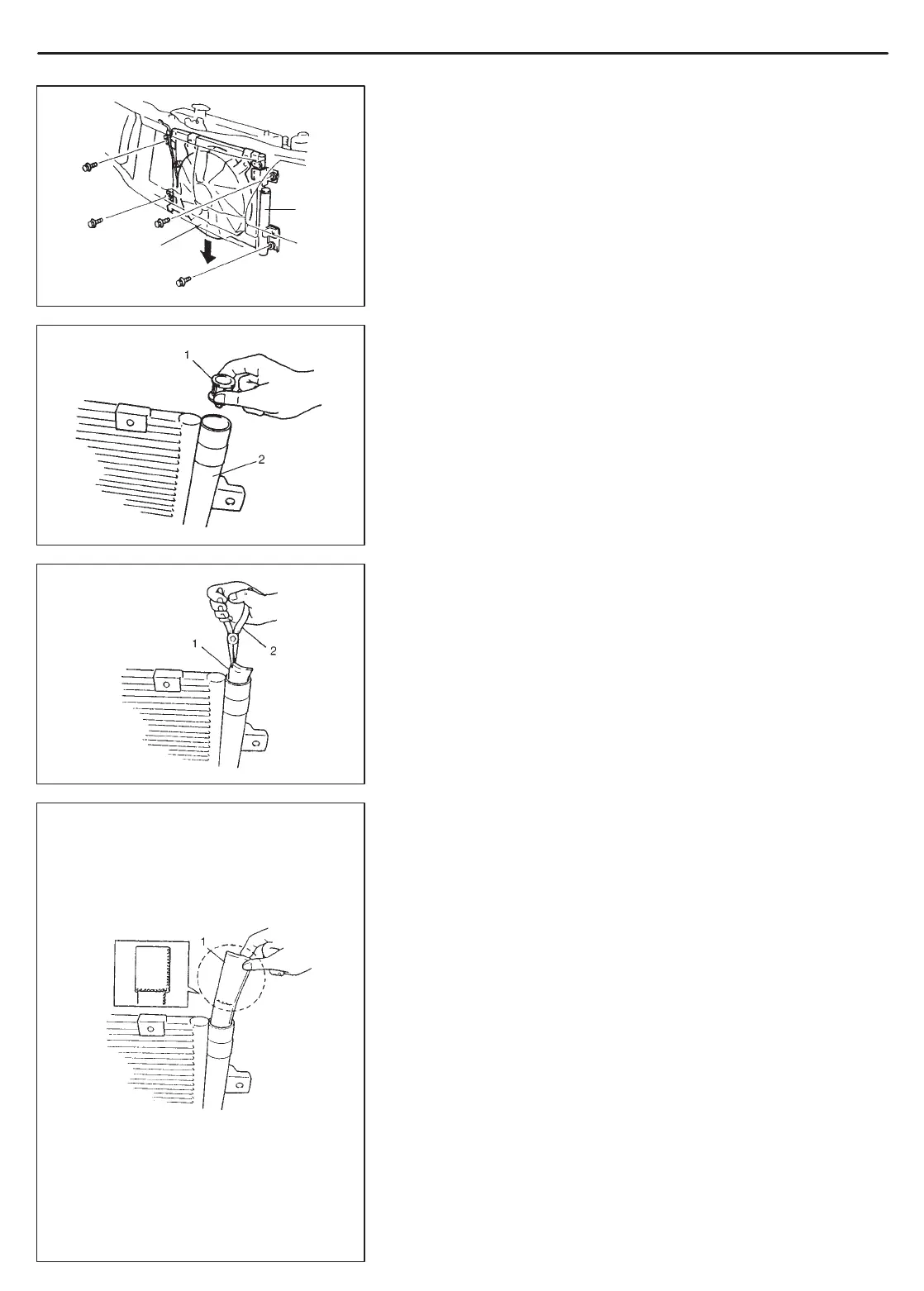

1B-36 AIR CONDITIONING (OPTIONAL)
CONDENSER DRYER (RECEIVER/DRYER)
REMOVAL
1) Remove A/C condenser assembly (1) from vehicle (Refer to
“A/C CONDENSER ASSEMBLY REMOVAL” in this section.).
2) Remove the condenser dryer cap from condenser.
3) Remove the filter (1) from the condenser (2).
4) Remove the dryer (1) using a plier (2).
INSTALLATION
Reverse removal sequence to install condenser dryer, according to
instruction manual with supply parts.
NOTE:
When replacing condenser dryer, add 40 cc of refrigerating
oil the same as compressor oil.
Do not remove the dryer from the plastic bag until just before
inserting it into the receiver.
Install the condenser dryer (1) with its double-layer portion
facing the bottom of the receiver.
If condenser dryer cap installing is bolt type, tighten speci-
fied torque for its bolt.
Tightening Torque:
Cap: 12.5 N
.
m (1.25 kg-m, 9 lb-ft)
To Next Page
