YH4
GRAND
VITARA
Terminal
Operation
If mirror heater is not equipped
If mirror heater is equipped
8D-30 WINDOWS, MIRRORS, SECURITY AND LOCKS
POWER DOOR MIRROR CONTROL SYSTEM
INSPECTION

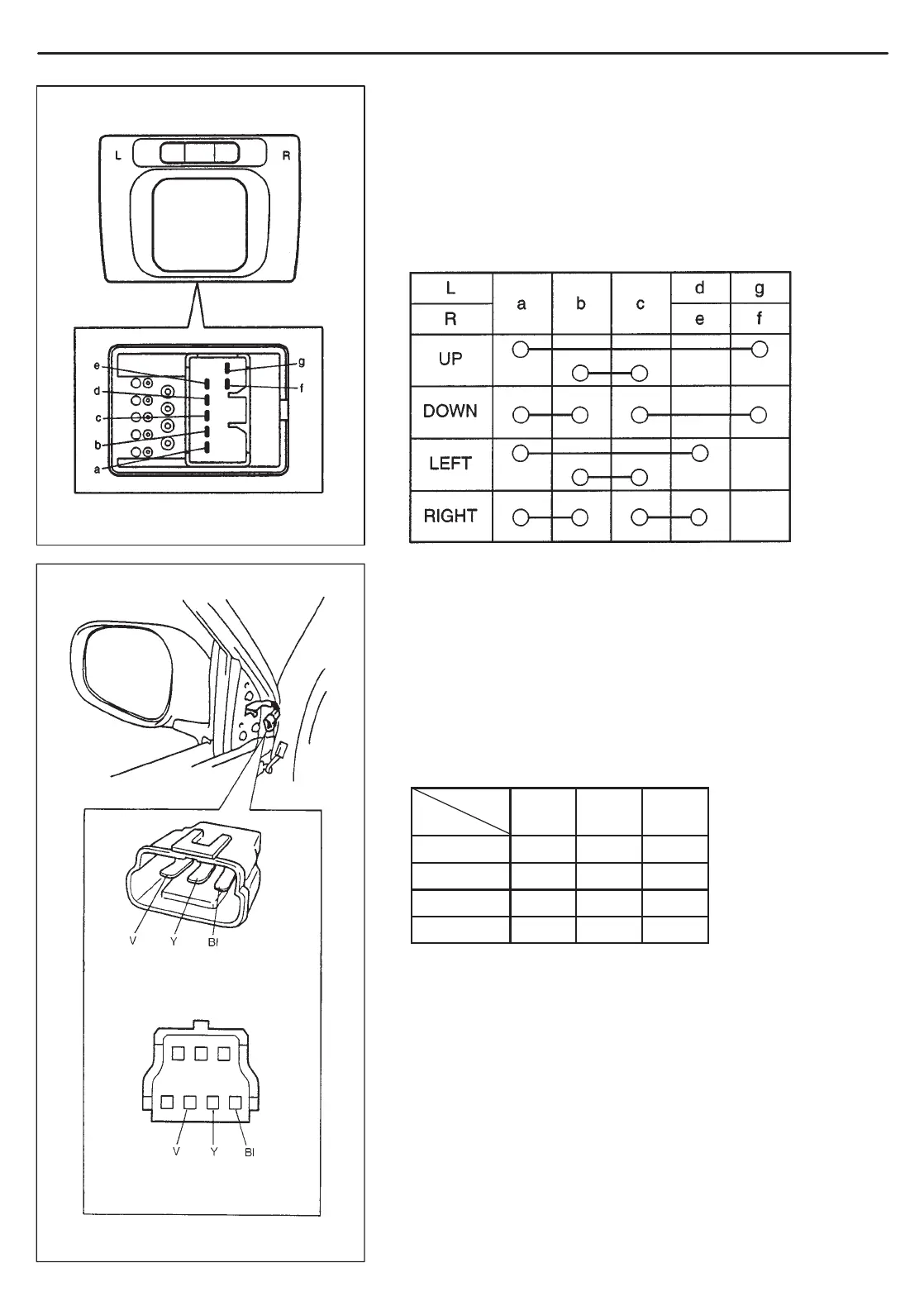

MIRROR SWITCH
1) Remove mirror switch from instrument panel.
2) Check for continuity between terminals at each switch position
as shown below.
If check result is not as specified, replace mirror switch.
DOOR MIRROR ACTUATOR
1) Remove garnish from door.
2) Disconnect door mirror coupler.
3) Check that door mirror operates properly when battery voltage
is applied to connector terminals.
Connect battery positive and negative terminal to the door mirror
terminal shown below and check operation.
If it does not operate as specified in table below, replace door
mirror assembly.
Up
Down
Left
Right
NOTE:
When installing door mirror to door, be careful not to pinch
harness between door and door mirror.
To Next Page
