YH4
GRAND
VITARA
3D-4 FRONT SUSPENSION

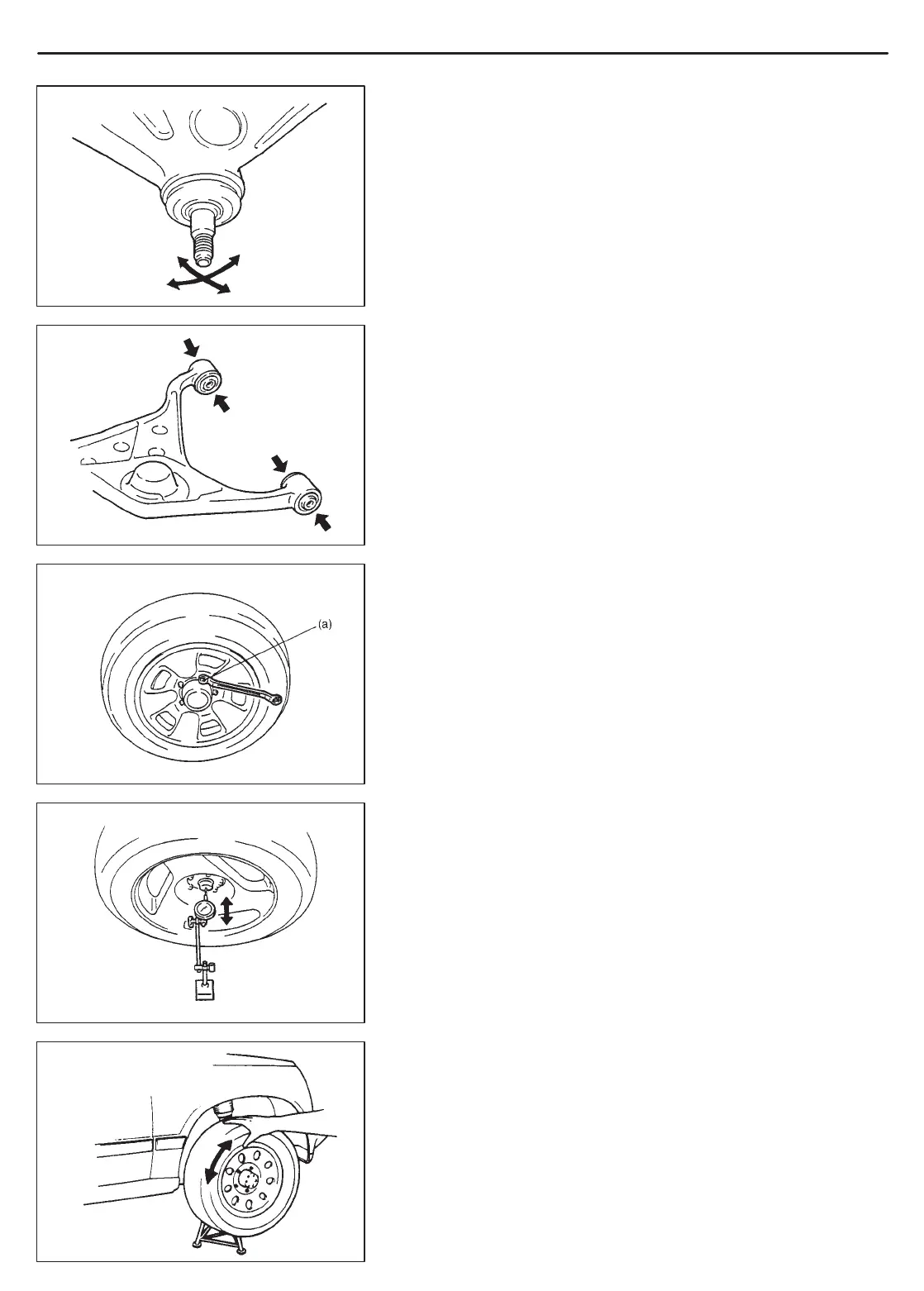

SUSPENSION CONTROL ARM JOINT CHECK
1) Check for smoothness of rotation.
2) Inspect ball stud for damage.
3) Inspect dust cover for damage.
Replace any parts found defective in steps 1) – 3).
SUSPENSION CONTROL ARM BUSHING
CHECK
Inspect for damage, wear or deterioration.
WHEEL DISC, NUT & BEARING CHECK
1) Inspect each wheel disc for dents, distortion and cracks.
Disc in badly damaged condition must be replaced.
2) Check wheel nuts for tightness and retighten them to specifica-
tion as necessary.
Tightening Torque
(a): 100 N
.
m (10.0 kg-m, 72.5 lb-ft)
3) Check wheel bearing for wear. After retightening lock nut to spe-
cified torque, apply dial gauge to wheel hub center and measure
thrust play.
Thrust play limit: 0.05 mm (0.002 in.)
When measurement exceeds limit, replace bearing.
4) By rotating wheel actually, check wheel bearing for noise and
smooth rotation. If defective, replace bearing.
