YH4
GRAND
VITARA
1. 8 mm bolt
5B-10 FRONT BRAKE
FRONT BRAKE DISC
REMOVAL

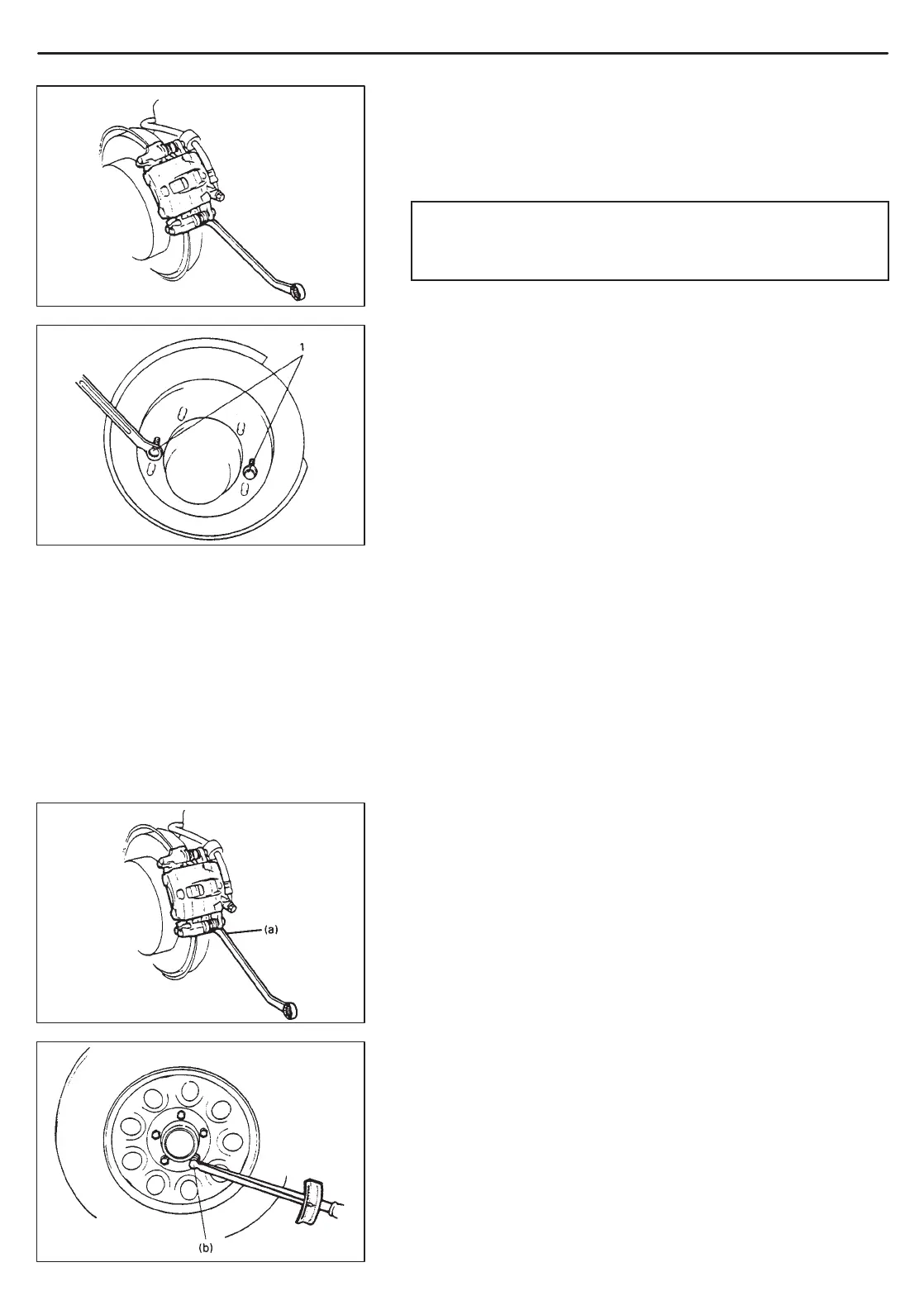

1) Hoist vehicle and remove wheel.
2) Remove caliper assembly by loosening carrier bolts (2 pcs.).
CAUTION:
During removal, be careful not to damage brake flexible
hose and not to depress brake pedal.
3) Remove disc by using 8 mm bolts (2 pcs.).
INSPECTION
Refer to FRONT DISC BRAKE PAD INSPECTION.
INSTALLATION
NOTE:
See NOTE at the beginning of this section.
1) Install disc to wheel hub.
2) Install caliper assembly to steering knuckle.
3) Torque caliper carrier bolts to specification.
Tightening Torque
(a): 85 N
.
m (8.5 kg-m, 61.5 lb-ft)
4) Torque front wheel nuts to specifications.
Tightening Torque
(b): 100 N
.
m (10.0 kg-m, 72.5 lb-ft)
5) Upon completion of installation, perform brake test.
