YH4
GRAND
VITARA
14
15

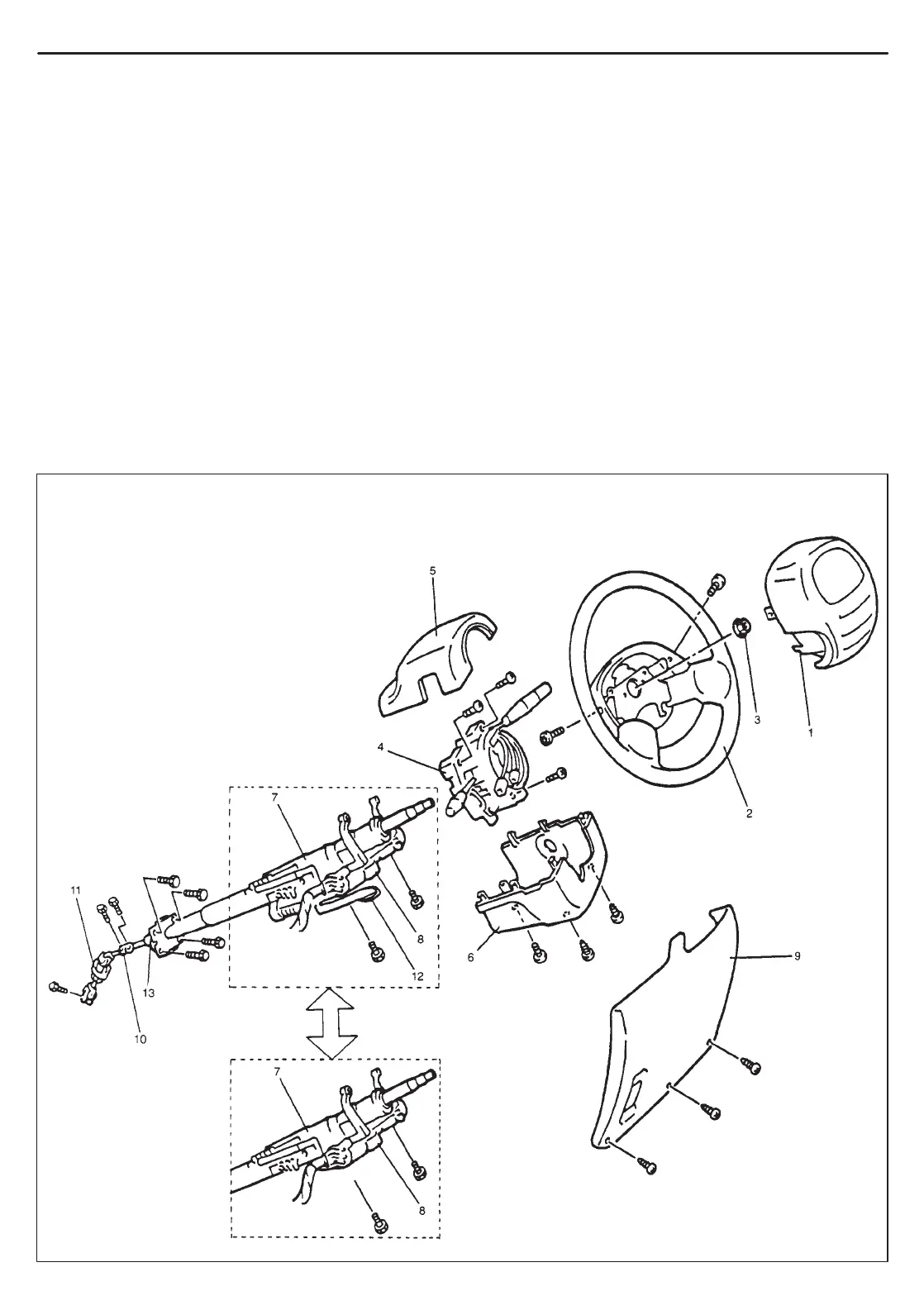

1. Driver air bag (inflator) module
2. Steering wheel
3. Steering wheel nut
4. Contact coil and combination switch assembly
5. Steering column upper cover
6. Steering column lower cover
7. Steering column assembly
8. Steering lock assembly
9. Steering column hole cover
10. Steering shaft joint
11. Steering lower shaft assembly
12. Adjustable steering column release lever
(if equipped)
13. Steering column lower seal
14. With adjustable steering column release lever type
15. Without adjustable steering column release lever type
3C1-2 AIR BAG STEERING WHEEL AND COLUMN
GENERAL DESCRIPTION
This double tube type steering column has the following three important features in addition to the steering function:
The column is energy absorbing, designed to compress in a front-end collision.
The ignition switch and lock are mounted conveniently on this column.
With the column mounted lock, the ignition and steering operations can be locked to inhibit theft of the vehicle.
To insure the energy absorbing action, it is important that only the specified screws, bolts, and nuts be used as
designated and that they are tightened to the specified torque. When the column assembly is removed from the
vehicle, special care must be taken in handling it. Use of a steering wheel puller other than the one recommended
in this manual or a sharp blow on the end of the steering shaft, leaning on the assembly, or dropping the assembly
could shear the plastic shear pins which maintain column length and position.
The driver air bag (inflator) module is one of the supplemental restraint (air bag) system components and is
mounted to the center of the steering wheel. During certain frontal crashes, the air bag system supplements the
restraint of the driver’s and passenger’s seat belts by deploying the air bags. The air bag (inflator) module should
be handled with care to prevent accidental deployment. When servicing, be sure to observe all WARNINGS in this
section. Refer to “SERVICE PRECAUTIONS” in Section 10B.
