YH4

GRAND

VITARA

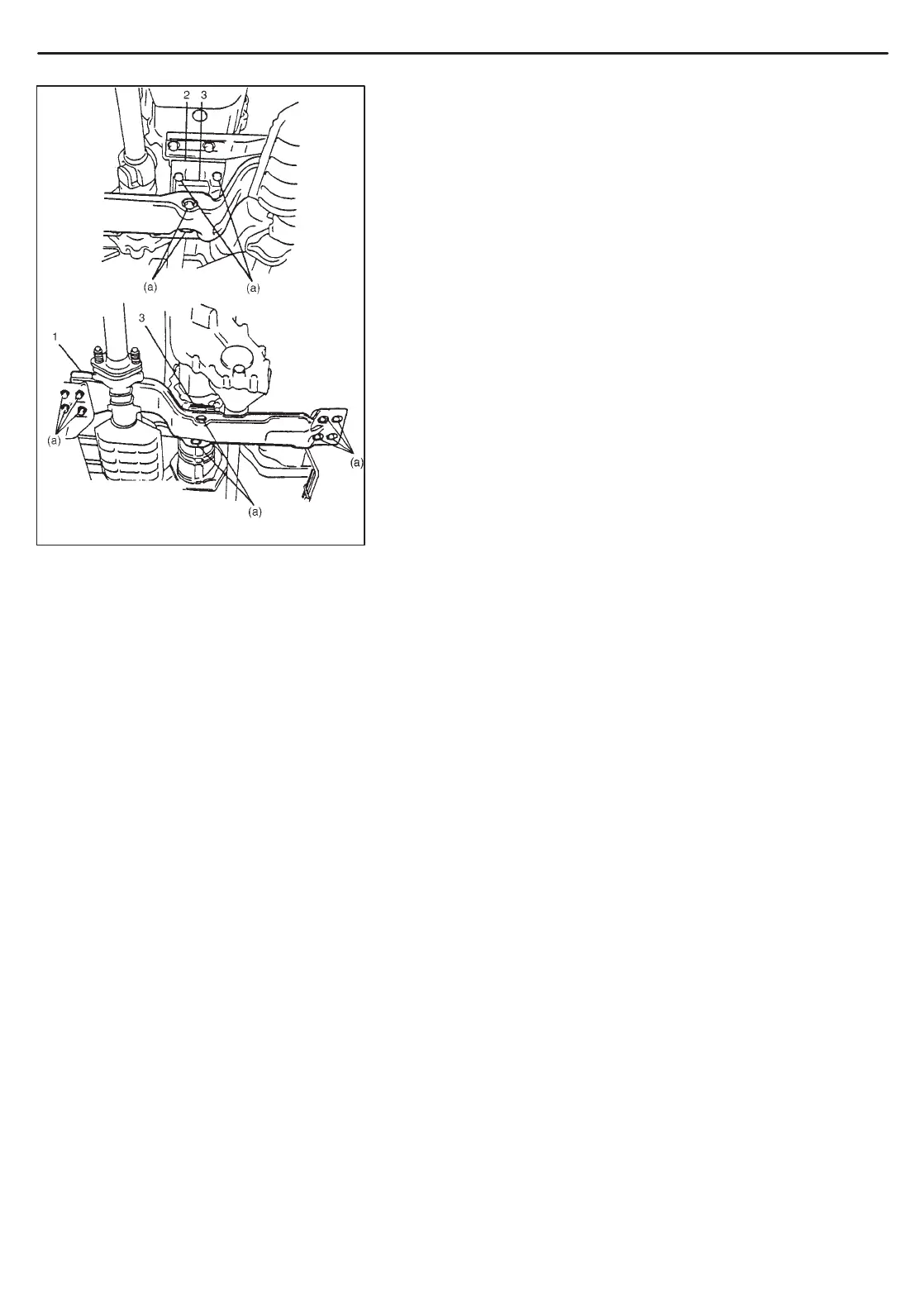

1. Engine rear mounting member

2. Mounting bracket

3. Engine rear mounting

FRONT SIDE

REAR SIDE

7A-8 MANUAL TRANSMISSION (TYPE 1)

ENGINE REAR MOUNTING

When replacement of mounting parts are necessary, torque bolts

and nut as specified below.

Tightening Torque

(a): 50 N

m (5.0 kg-m, 36.5 lb-ft)

Section 0A General Information4
