YH4

GRAND

VITARA

FRONT SUSPENSION 3D-21

(1)

(2)

(A)

1. Hydraulic press

Cut off flange

Bush outer diameter

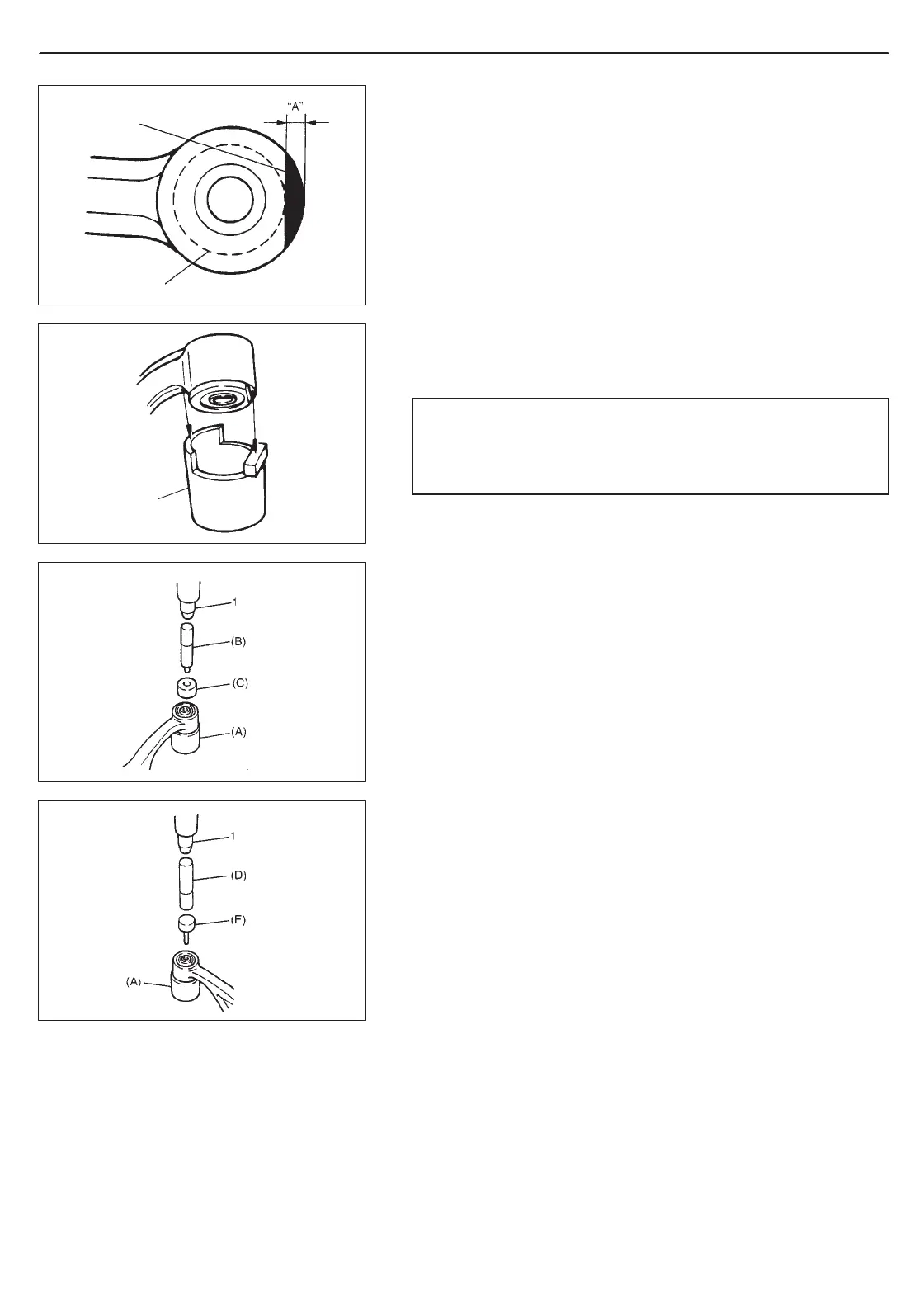

SUSPENSION CONTROL ARM/BUSHINGS

REMOVAL

1) Remove coil spring. Refer to COIL SPRING in this section.

2) Remove control arm bolts and nuts. Then remove control arm.

3) Cut flange part of control arm bush (rubber and steel) with using

care not to damage control arm end surface.

Dimension “A”: Approx. 6 mm (0.236 in.)

4) Place control arm and special tool on hydraulic press. Set con-

trol arm cutting flange to welded part (1) of the special tool and

control arm joint side to the stepped part (2) of special tool.

CAUTION:

Use special care in driving out control arm bush to press

it vertically.

Or it may cause personally injury.

Special tool

(A): 09951-46020

5) Remove front bushing by using hydraulic press and special

tools, pull out bushing.

Special Tool

(A): 09951-46020

(B): 09924-74510

(C): 09951-16060

6) Remove rear bushing by using hydraulic press and special

tools, pull out bushing.

Special Tool

(A): 09951-46020

(D): 09913-80112

(E): 09925-58210
