1B-46 AIR CONDITIONING (OPTIONAL)
A/C CONTROLLER
REMOVAL
1) Disconnect negative (–) cable at battery.
2) Disable air bag system, if equipped.
Refer to “DISABLING AIR BAG SYSTEM” in Section 10B.
3) Open glove box, then remove screw.
4) Remove glove box.

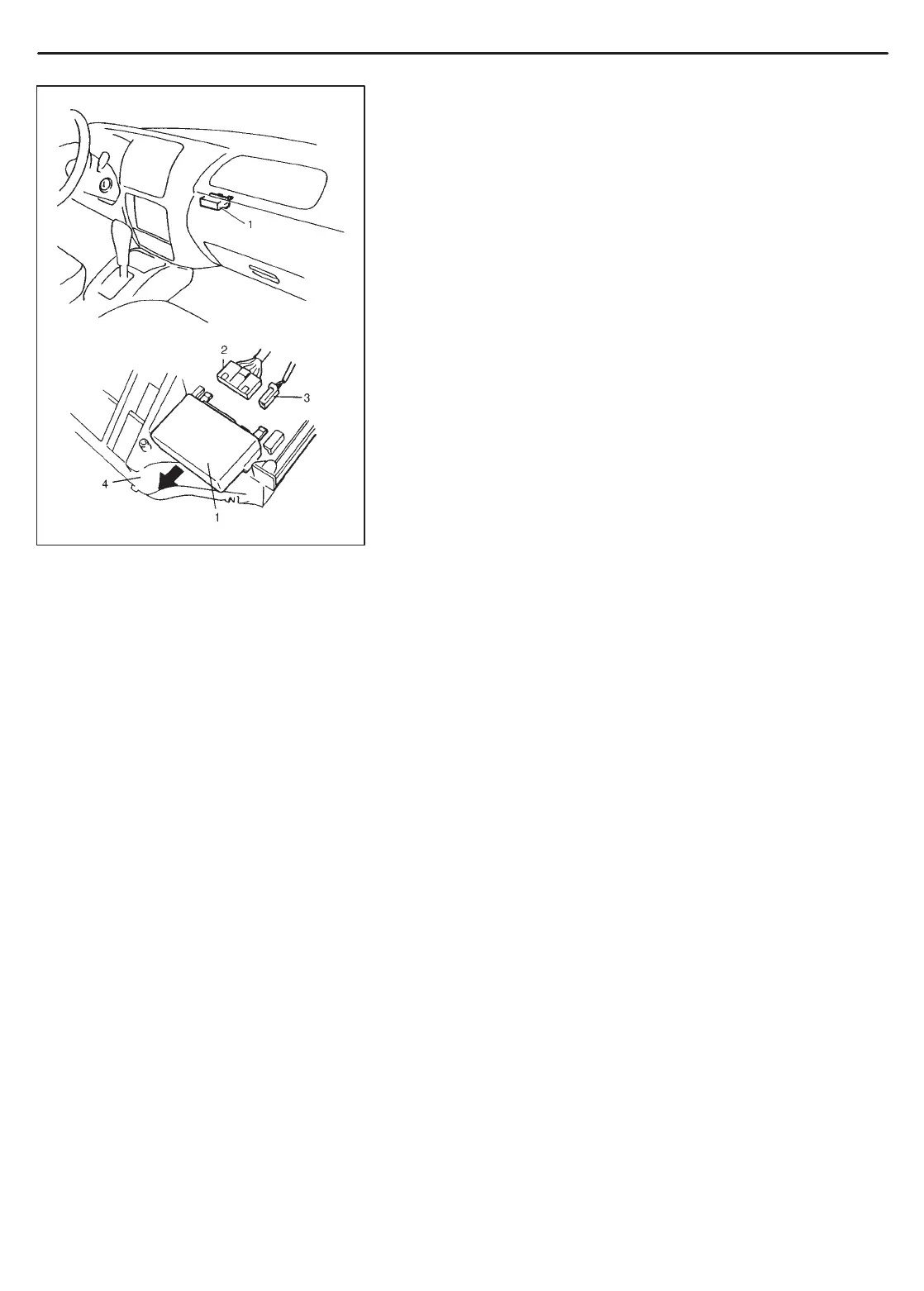

5) Disconnect A/C controller coupler (2), evaporator thermistor
coupler (3).
6) Remove A/C controller (1) from heater unit (4).
INSPECTION
Refer to “INSPECTION OF A/C CONTROLLER AND ITS CIR-
CUIT” in this section.
INSTALLATION
1) Install in reverse order of removal procedure.
2) If equipped with air bag system, enable air bag system. Refer to
“ENABLING AIR BAG SYSTEM” in Section 10B.
