POWER STEERING (P/S) SYSTEM 3B1-19
Tightening Torque
(a):60 N
.
m (6.0 kg-m, 43.5 lb-ft)
(b):25 N
.
m (2.5 kg-m, 18.5 lb-ft)
(c):55 N
.
m (5.5 kg-m, 40.0 lb-ft)
(d):11 N
.
m (1.1 kg-m, 8.0 lb-ft)
(e):35 N
.
m (3.5 kg-m, 25.5 lb-ft)
(f):40 N
.
m (4.0 kg-m, 29.0 lb-ft)
(g):45 N
.
m (4.5 kg-m, 33.0 lb-ft)

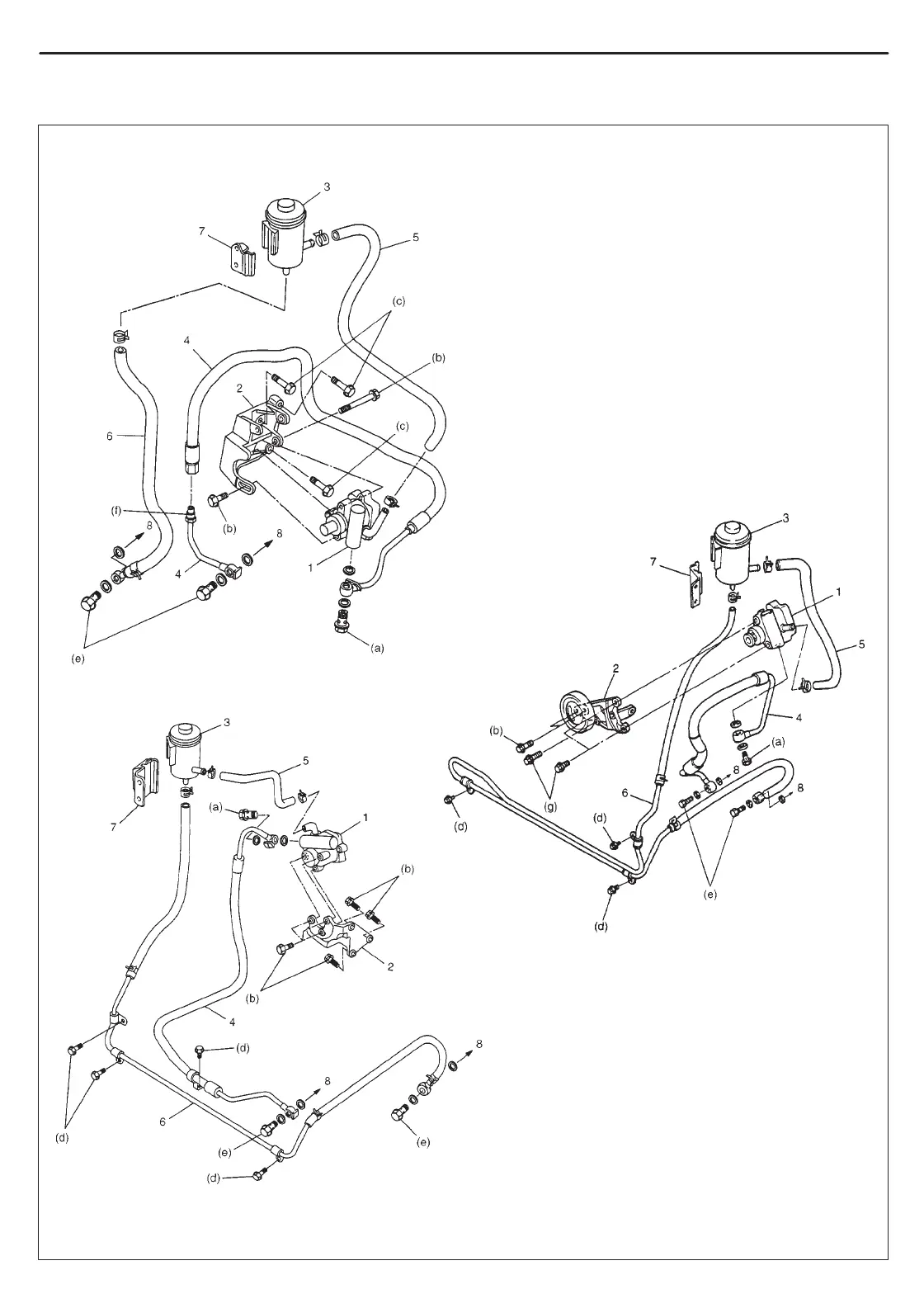

1. Power steering pump assembly
2. Bracket
3. P/S fluid reservoir
4. High pressure hose & pipe
5. Suction hose
6. Low pressure return hose
7. Oil tank bracket
8. To P/S gear box
[G16 ENGINE MODEL]
[J20 ENGINE MODEL]
[H25 ENGINE MODEL]
POWER STEERING PUMP
