YH4

GRAND

VITARA

For CAMI production vehicle

For IWATA production vehicle

AIR CONDITIONING (OPTIONAL) 1B-37

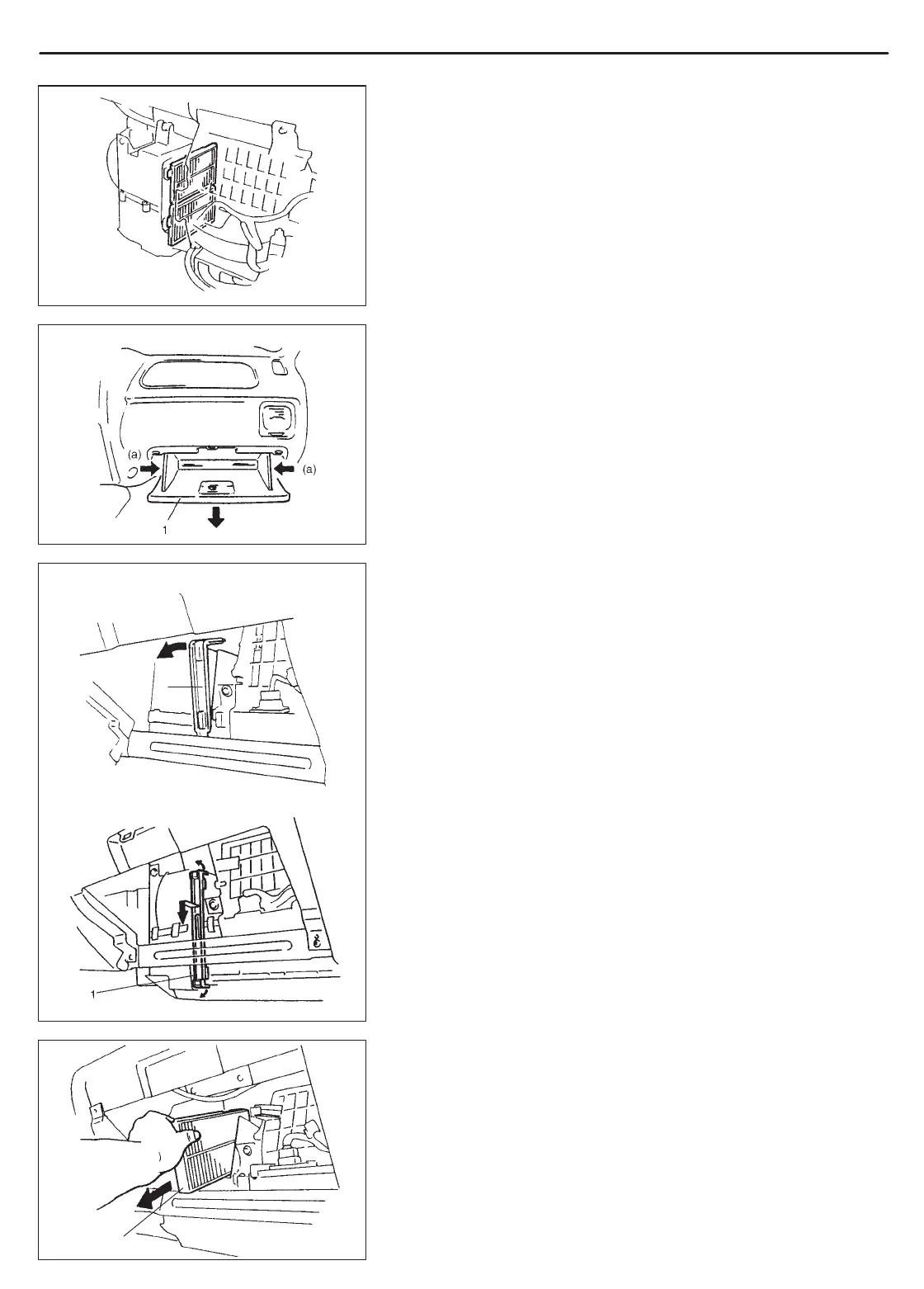

AIR FILTER ELEMENT

REMOVAL

1) Disconnect negative (–) cable at battery.

2) For vehicle with air bag system, disable air bag system. Refer

to “DISABLING AIR BAG SYSTEM” in Section 10B.

3) Pull down glove box (1) by pushing the shown part (a).

4) Remove filter cover (1).

5) Pull out filter element (1). Pull out upper filter first then the lower

one.
