YH4
GRAND
VITARA
Hard Top Model
Canvas Top Model
LOAD2 LOAD1
1. Heater wire
2. Thermostat

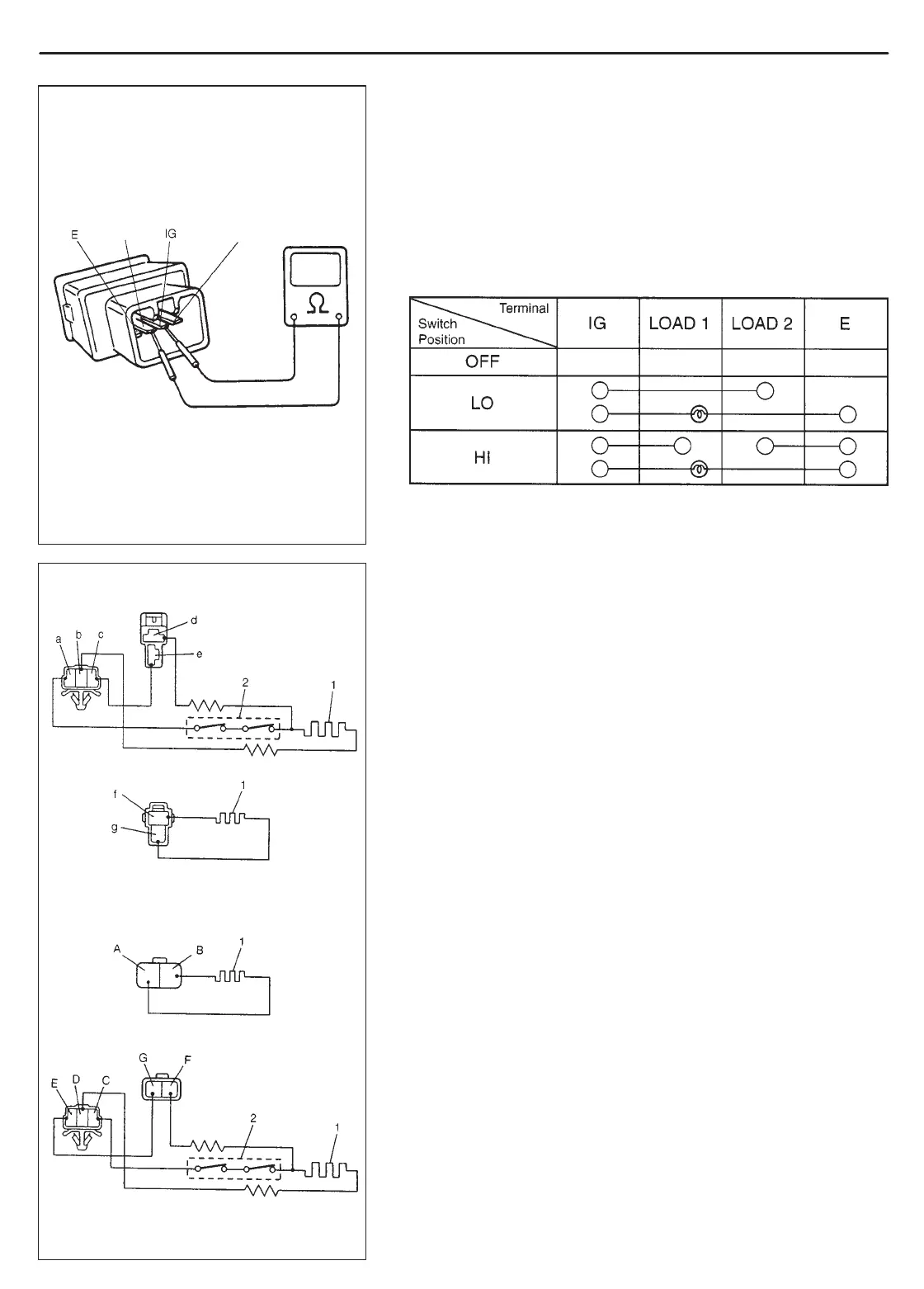

WINDOWS, MIRRORS, SECURITY AND LOCKS 8D-33
FRONT SEAT HEATER (IF EQUIPPED)
SEAT HEATER SWITCH (DRIVER AND PASSENGER SIDE)
INSPECTION
1) Confirm that ignition switch is OFF position.
2) Pull out seat heater switch from front center console box.
3) Disconnect seat heater switch coupler.
4) Check for continuity between terminals at each switch position
as shown below. If check result is not as specified, replace.
SEAT HEATER WIRE
INSPECTION
1) Confirm that seat heater switch is OFF position.
2) Disconnect two couplers of seat heater under the seat cushion.
(If seat under tray is equipped, pull out coupler between tray and
seat cushion.)
3) Check for continuity between terminals as shown below.
If not continuity, replace faulty seat heater.
Hard Top Model
Seat heater circuit in seat back
Between a and b
Between b and d
Between c and e
Seat heater circuit in seat cushion
Between f and g
Canvas Top Model
Seat heater circuit in seat back
Between A And B
Seat heater circuit in seat cushion
Between C and D
Between D and F
Between E and G
To Next Page
