YH4
GRAND
VITARA

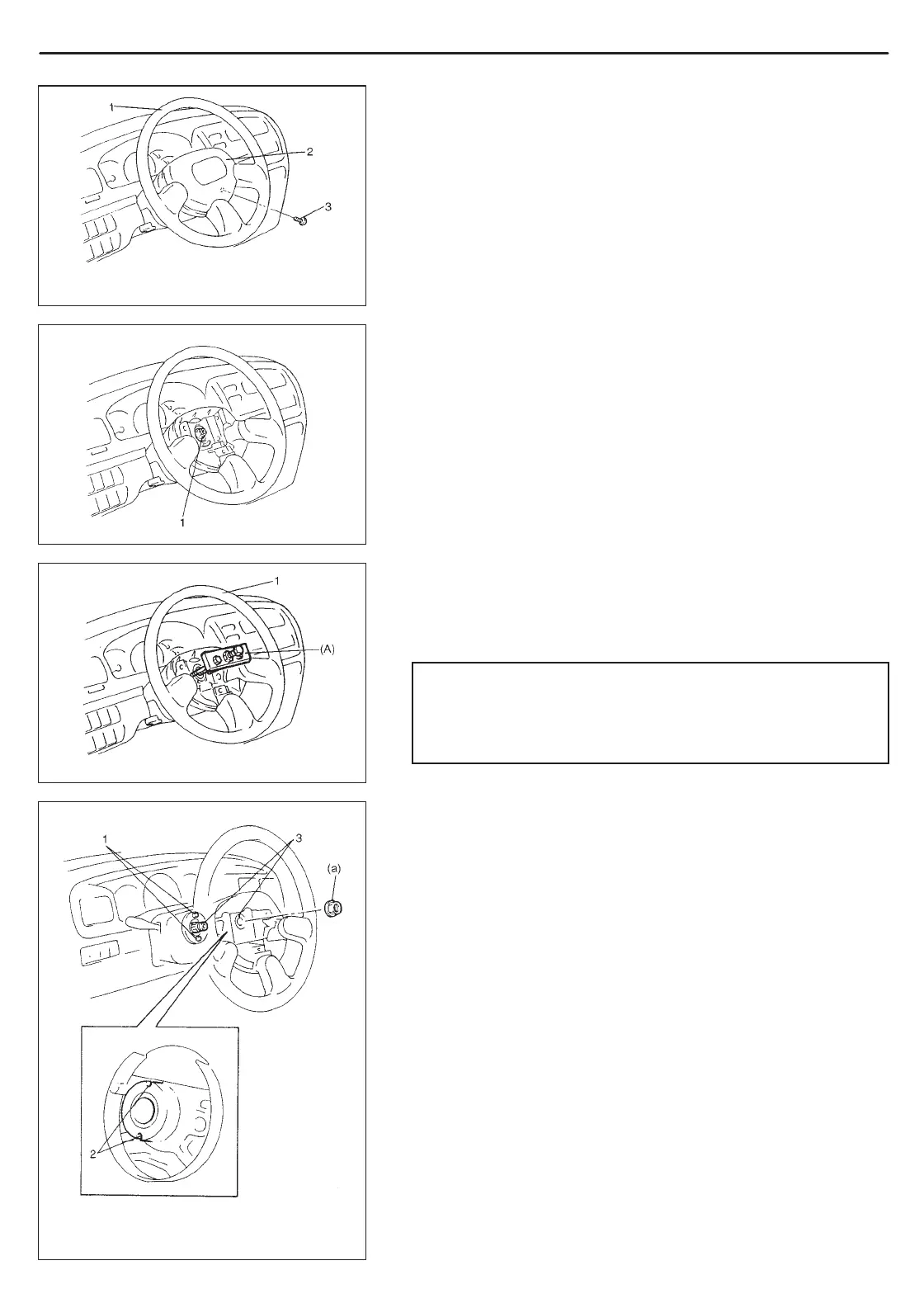

1. Steering wheel
2. Steering wheel pad
3. Screw
1. Steering shaft nut
1. Steering wheel
1. Lugs
2. Grooves
3. Alignment marks
STEERING WHEEL AND COLUMN 3C-3
ON-VEHICLE SERVICE
STEERING WHEEL
REMOVAL
1) Disconnect negative battery cable at battery terminal.
2) Remove steering wheel pad screw.
3) Remove steering wheel pad and disconnect horn harness.
4) Remove steering shaft nut.
5) Make alignment marks on steering wheel and shaft for a guide
during reinstallation.
6) Remove steering wheel with special tool.
Special Tool
(A): 09944-36011
CAUTION:
Do not hammer the end of the shaft. Hammering it will
loosen the plastic shear pins which maintain the column
length and impair the collapsible design of the column.
INSTALLATION
1) Install steering wheel to steering shaft with 2 lugs on combina-
tion switch fitted in two grooves in the back of steering wheel and
also aligning marks on steering wheel and steering shaft.
2) Tighten steering shaft nut to specified torque.
Tightening Torque
(a): 33 N
.
m (3.3 kg-m, 23.5 lb-ft)
3) Connect horn harness and install steering wheel pad.
4) Tighten steering wheel pad screw.
5) Connect negative battery cable.
