YH4
GRAND
VITARA
5E1-38 ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL)
1. Clamps
2. Sensor bolt

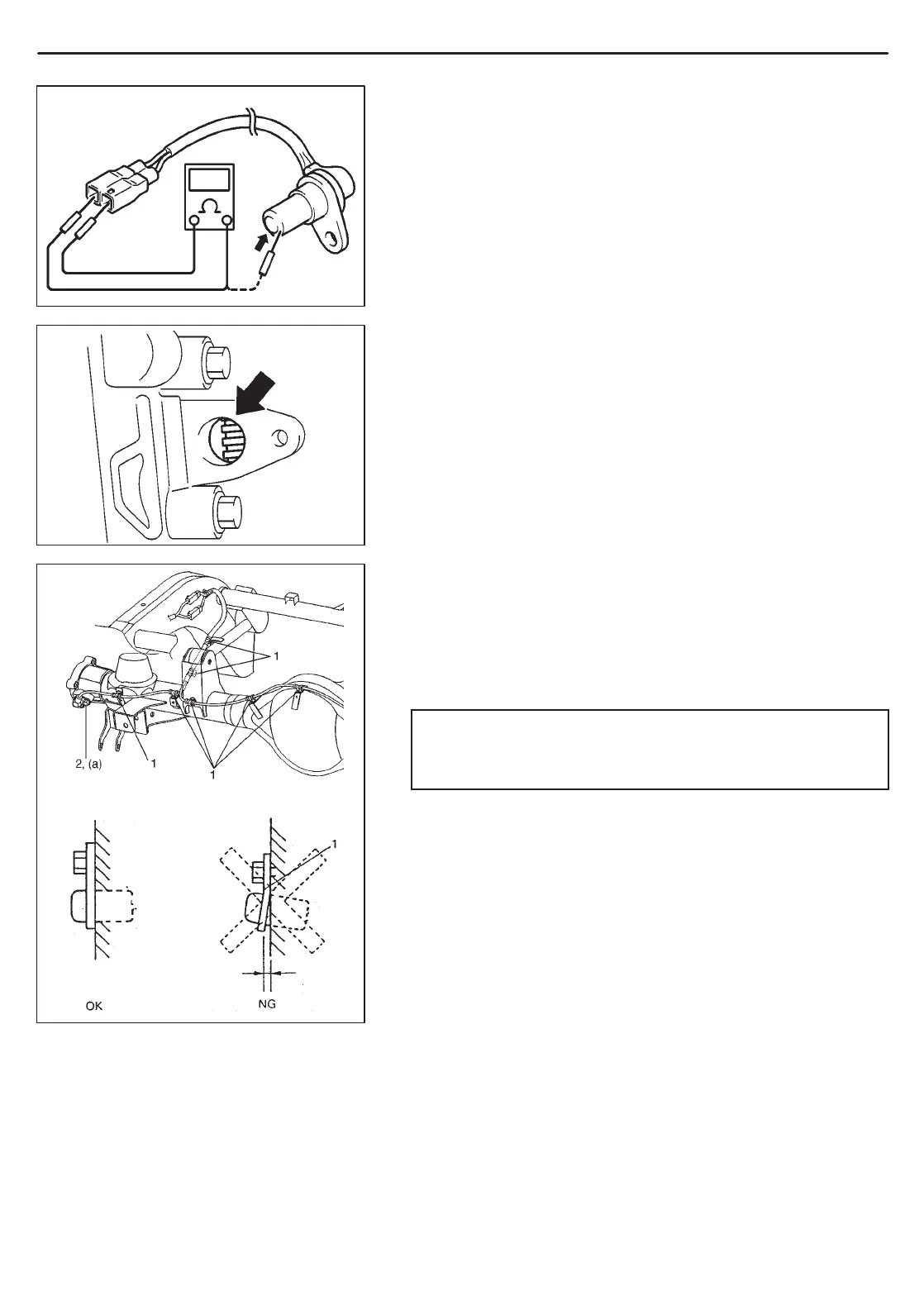

SENSOR INSPECTION
D Check sensor (pole piece) for damage or bent.
D Check sensor for resistance.
Resistance between
terminals : 1.2 – 1.6 k at 20_C, 68_F
Resistance between
terminal and sensor body: 1 M or more
If any faulty is found, replace.
SENSOR ROTOR INSPECTION
D Check rotor serration (teeth) for being missing, damaged or de-
formed.
D Turn wheel and check if rotor rotation is free from eccentricity and
looseness.
D Check that no foreign material is attached.
If any faulty is found, repair or replace.
INSTALLATION
1) Check that no foreign material is attached to sensor and rotor.
2) Install it by reversing removal procedure.
Tightening Torque
(a): 21 N
.
m (2.1 kg-m, 15.0 lb-ft)
CAUTION:
Do not pull wire harness or twist more than necessary
when installing rear wheel speed sensor.
3) Check that there is no clearance between sensor and knuckle.
To Next Page
