YH4
GRAND
VITARA
G16/J20 Engines
H25 Engine
1. PCM
2. 4WD low switch
3. J/C
7B1-52 AUTOMATIC TRANSMISSION (4 A/T)
DTC P1875 4WD LOW SWITCH CIRCUIT MALFUNCTION (if equipped)

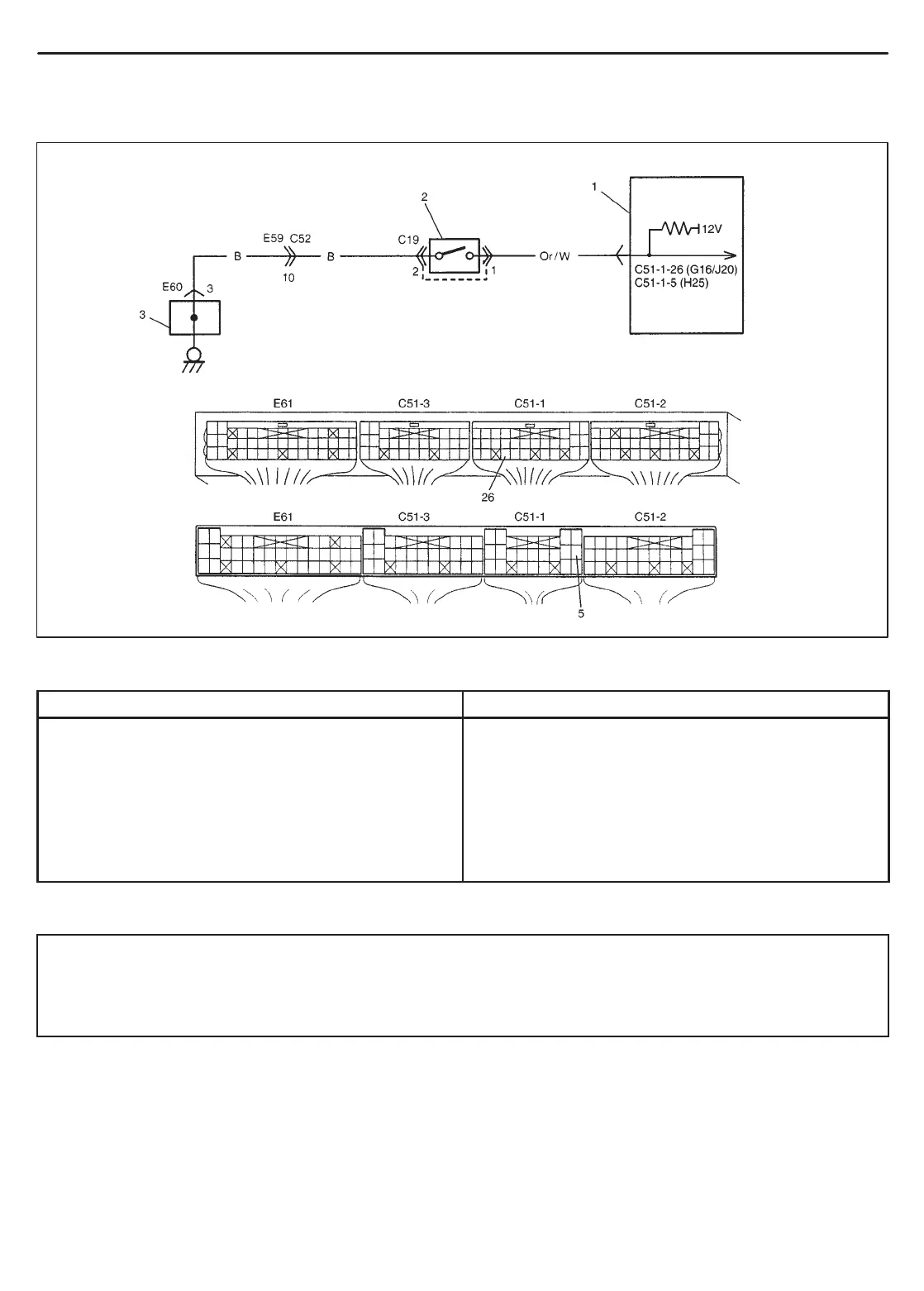

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC DETECTING CONDITION TROUBLE AREA
While driving at higher than specified vehicle speed
and with more than specified throttle valve opening,
the following conditions are satisfied for specified time.
Vehicle speed sensed by vehicle speed sensor is
more than 10 km/h higher than that sensed by A/T
output speed sensor.
(2 driving cycles detection logic)
4WD LOW switch or its circuit
PCM
DTC CONFIRMATION PROCEDURE
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic accident
and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF.
2) Clear DTC, pending DTC and freeze frame data in PCM memory by using scan tool.
3) Start engine.
4) Increase vehicle speed to about 30 km/h (19 mph) or more in D range and is in 2H position.
5) Keep driving at above vehicle speed for 30 seconds.
6) Stop vehicle and shift transfer lever to 4L position with A/T selector lever is in P range
7) Increase vehicle speed to about 25 km/h (15 mph) or more in D range and is in 4L position.
8) Keep driving at above vehicle speed for 30 seconds.
9) Stop vehicle and check pending DTC and DTC by using scan tool.
To Next Page
