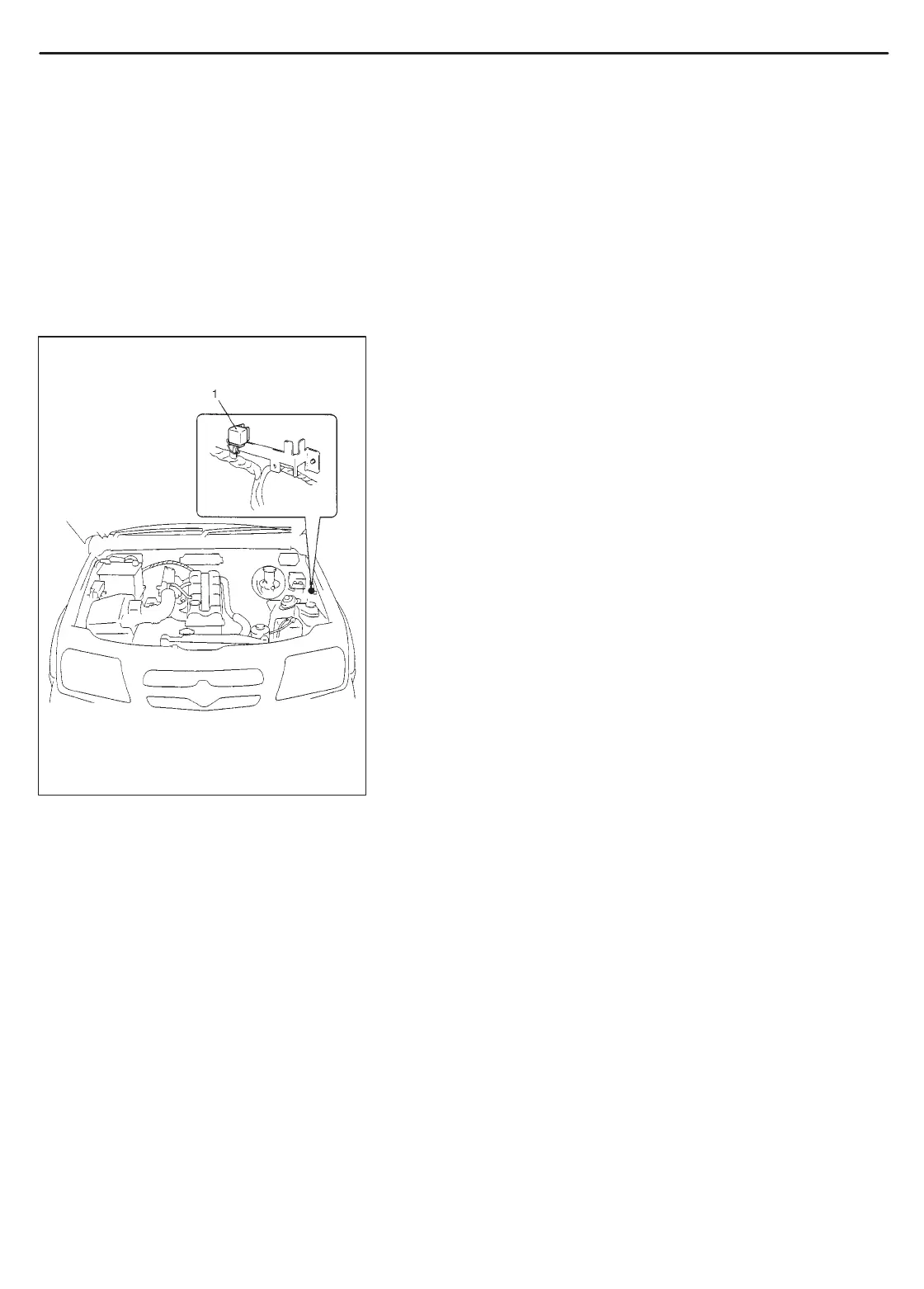

1. Monitor connector
AUTOMATIC TRANSMISSION (4 A/T) 7B1-17
AUTOMATIC TRANSMISSION DIAGNOSIS
This vehicle is equipped with an electronic transmission control system, which control the automatic shift up and
shift down timing, TCC operation, etc. suitably to vehicle driving conditions.
PCM (ECM) has an On-Board Diagnosis system which detects a malfunction in this system and abnormality of
those parts that influence the engine exhaust emission.
When diagnosing a trouble in transmission including this system, be sure to have full understanding of the outline
of “On-board Diagnostic System” and each item in “Precaution in Diagnosing Trouble” and execute diagnosis ac-
cording to “AUTOMATIC TRANSMISSION DIAGNOSTIC FLOW TABLE” given below to obtain correct result
smoothly.
NOTE:
There are two types of ON-BOARD DIAGNOSTIC SYSTEM de-
pending on vehicle specifications. The type of system for ve-
hicle being serviced can be identified by whether equipped
with monitor connector or not.
