YH4
GRAND
VITARA
7C1-10 CLUTCH
(B)
1
1
2
(A)

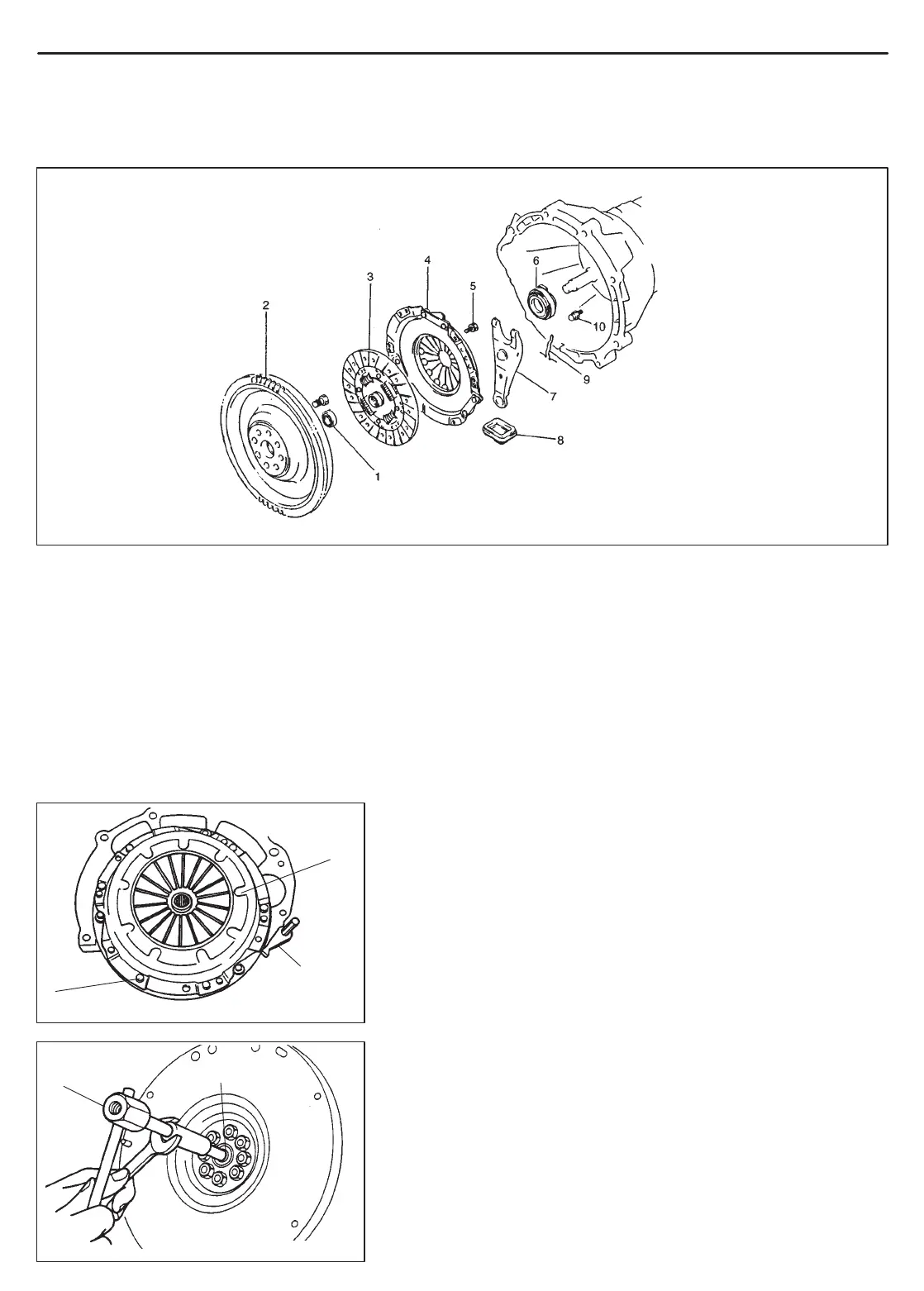

1. Input shaft bearing
2. Flywheel
3. Clutch disc
4. Clutch cover
5. Bolt
6. Release bearing
7. Clutch release fork
8. Boot
9. Clip
10. Clutch release fork support
1. Bolt
2. Clutch cover
1. Input shaft bearing
UNIT REPAIR
CLUTCH COVER, CLUTCH DISC AND FLYWHEEL
DISMOUNTING/REMOUNTING
Refer to SECTION 7A “Dismounting/Remounting of Trans Unit”.
REMOVAL
1) Hold flywheel stationary with special tool (A) and remove clutch
cover bolts, clutch cover and clutch disc.
Special Tool
(A): 09924-17810
2) Pull out input shaft bearing by using special tool (B) and wrench.
Special Tool
(B): 09917-58010 (G16 engine)
(B): 09923-73210 (J20 and H25 engines)
3) Remove release bearing and release fork.
To Next Page
