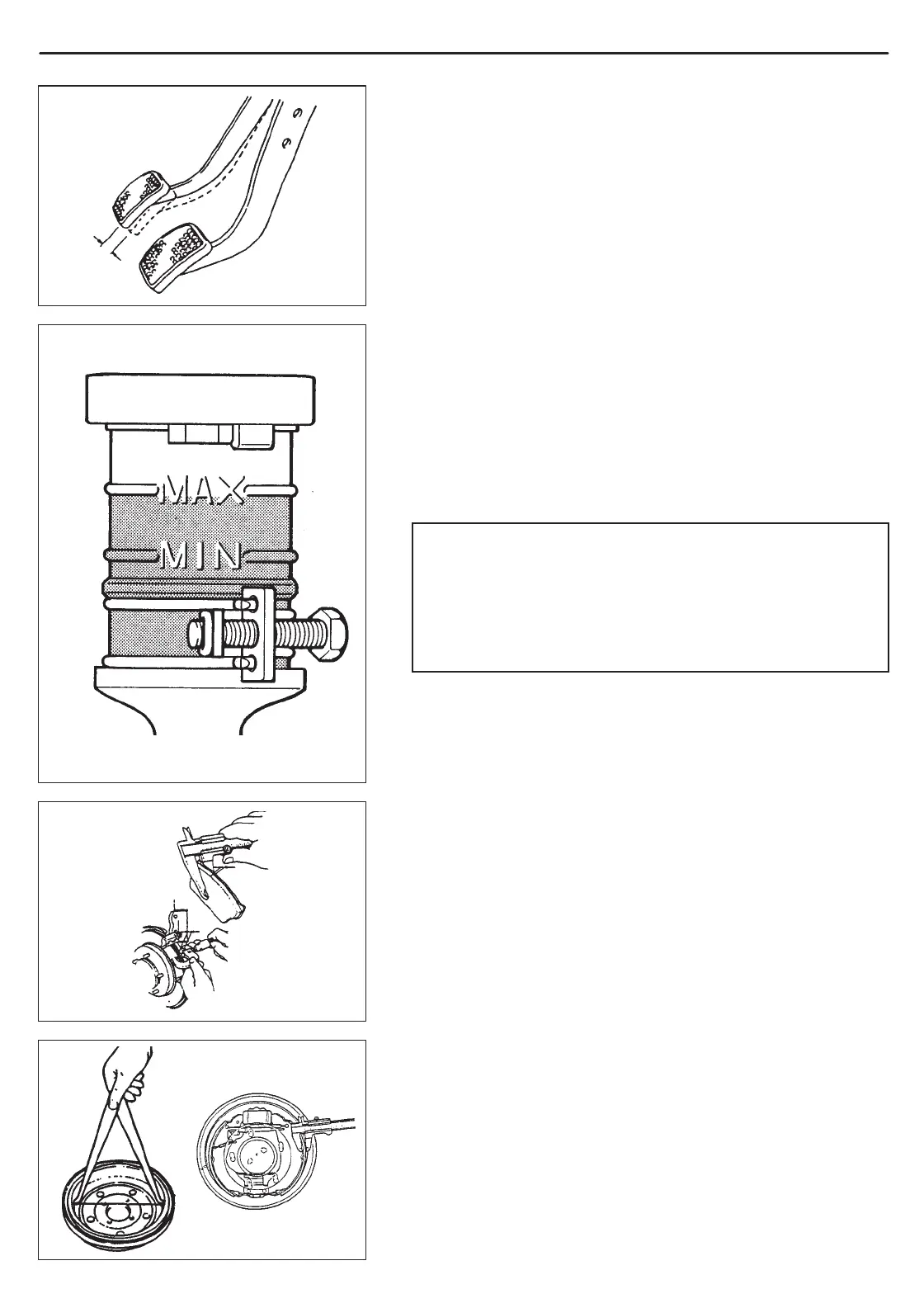

1. Clutch pedal free travel
MAINTENANCE AND LUBRICATION 0B-15
CHASSIS AND BODY
ITEM 6-1
Clutch
Pedal inspection
Check clutch pedal for height and free travel referring to Section
7C1. Adjust or correct if necessary.
Fluid inspection
1) Check around master cylinder and reservoir for fluid leakage.
If found leaky, correct.
2) Check fluid level.
If fluid level is lower than the minimum level of reservoir, refilling
is necessary. Fill reservoir with specified brake fluid indicated on
clutch reservoir cap.
For the details, refer to On-vehicle service in Section 7C1.
CAUTION:
Since clutch system of this vehicle is factory-filled with
glycol-base brake fluid, do not use or mix different type
of fluid when refilling system; otherwise serious damage
will occur. Do not use old or used brake fluid, or one taken
from unsealed container.
ITEM 6-2
Brake Discs, Pads, Brake Drums and Shoes Inspection
[Brake discs and pads]
1) Remove wheel and caliper but don’t disconnect brake hose from
caliper.
2) Check front disc brake pads and discs for excessive wear, dam-
age and deflection. Replace parts as necessary. For details, re-
fer to Section 5B.
Be sure to torque caliper pin bolts to specification.
[Brake drums and shoes]
1) Remove wheel and brake drum.
2) Check rear brake drums and brake linings for excessive wear
and damage, while wheels and drums are removed. At the same
time, check wheel cylinders for leaks. Replace these parts as
necessary.
For details, refer to Section 5C.
