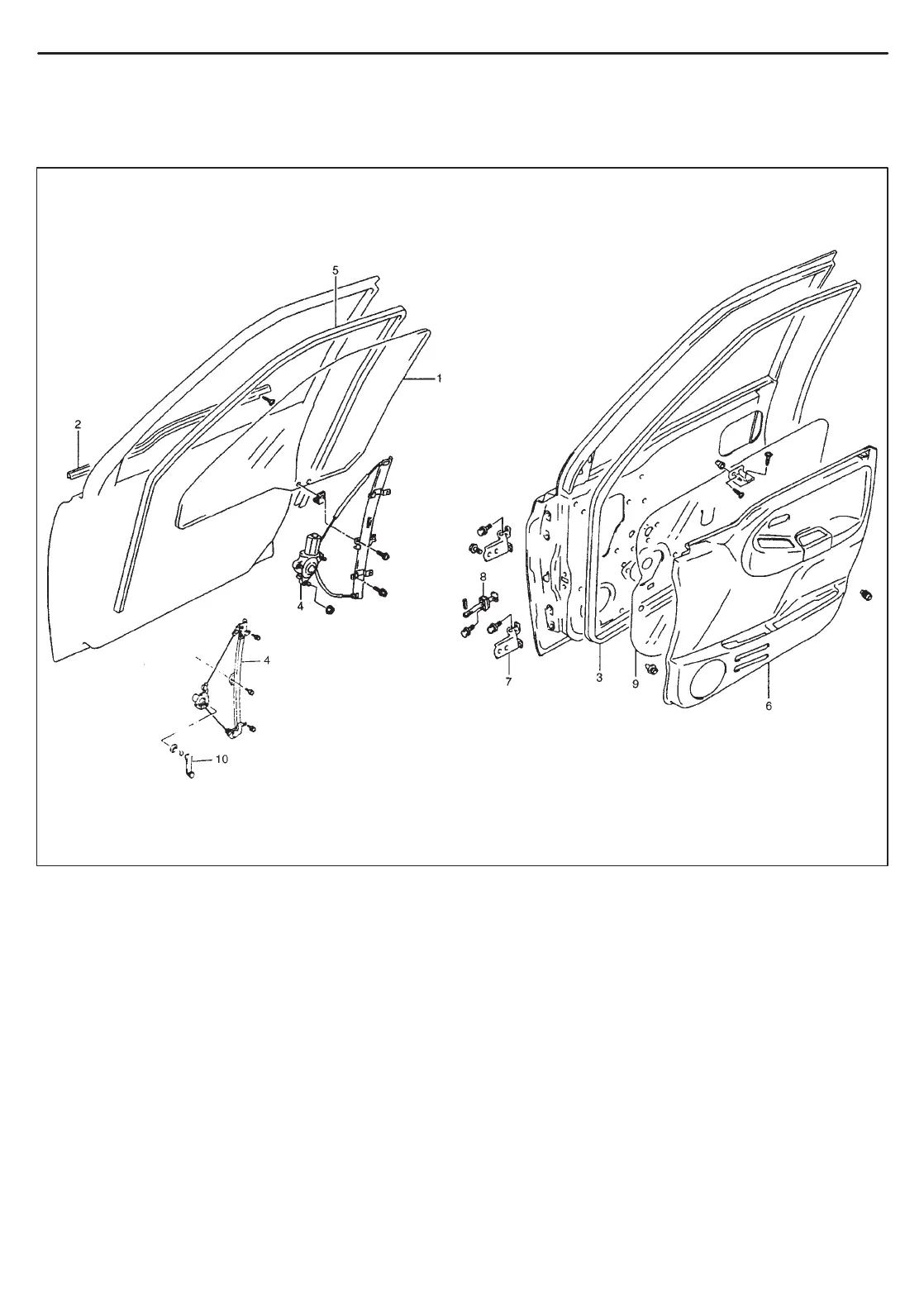

YH4

GRAND

VITARA

6. Door trim

7. Door hinge

8. Door open stop

9. Door sealing cover

10. Window regulator handle (if equipped)

1. Door glass

2. Weatherstrip

3. Opening weatherstrip

4. Window regulator

5. Glass run

9-2 BODY SERVICE

GLASS, WINDOWS AND MIRROR

FRONT DOOR GLASS
