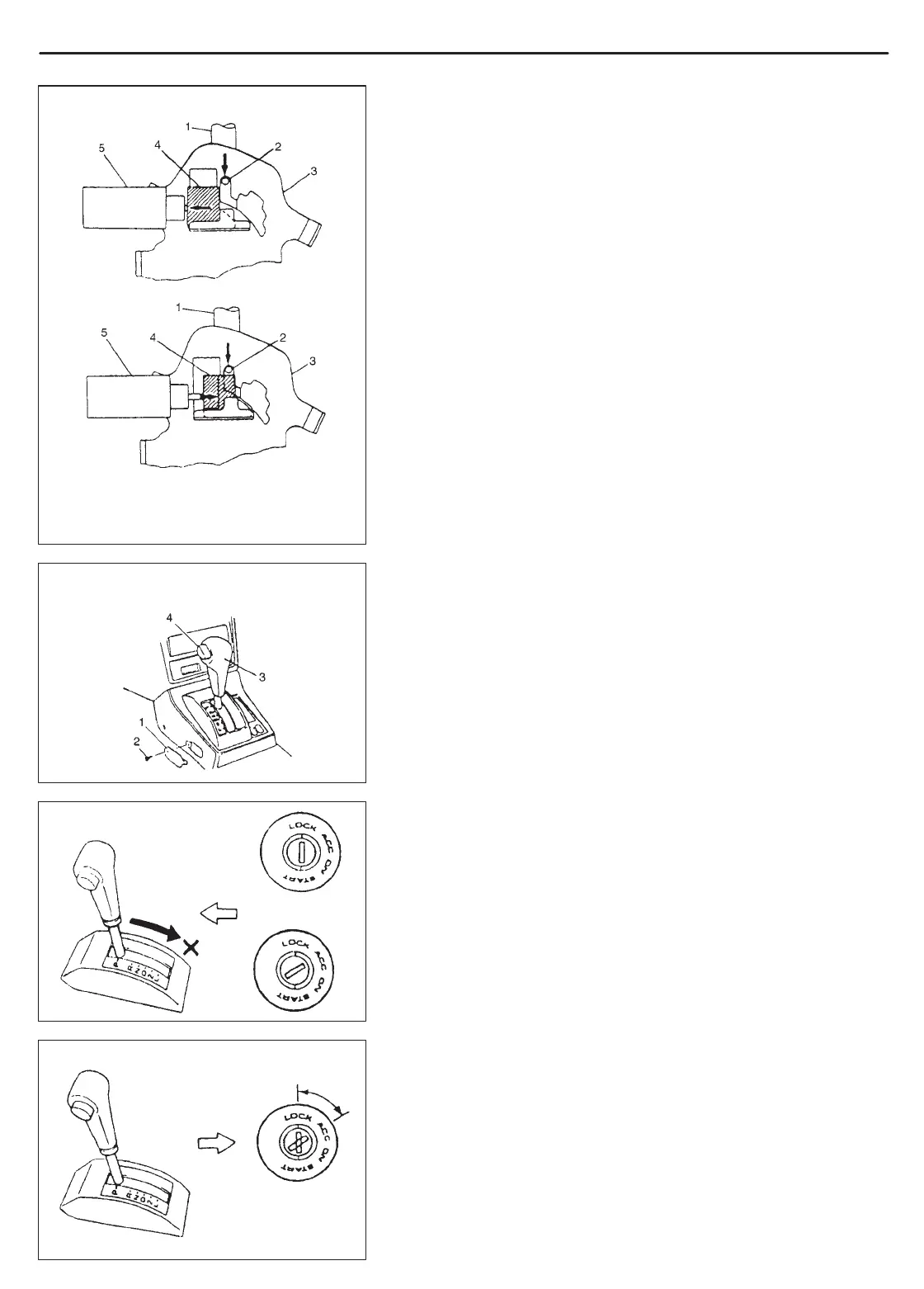

1. Select lever
2. Detent pin
3. Detent plate
4. Lock plate
5. Shift lock solenoid
1. Cover
2. Screw
3. Select lever
4. Button
AUTOMATIC TRANSMISSION (4 A/T) 7B1-69
SHIFT LOCK (SOLENOID) MANUAL RELEASE
Shift lock can be manually released by following procedure.
1) Remove access hole cover by unfastening screw.
2) Turn ignition key to “ACC” position and move shift lock solenoid
rod (or manual release plate) toward rear side of vehicle by using
screw driver or the like.
3) In this state, select lever can be moved to any range or position.
SYSTEM INSPECTION
1) Check to make sure that select lever cannot be moved to any
other range from “P” range position when ignition switch key is
at “ACC” position, at “LOCK” position (or it is removed from key-
hole of ignition switch) or brake pedal is not depressed.
2) Shift select lever to “P” range position, release knob button and
check for the following.
Ignition key can be turned between “LOCK” and “ACC” posi-
tions back and forth and also it can be removed from ignition
switch.
